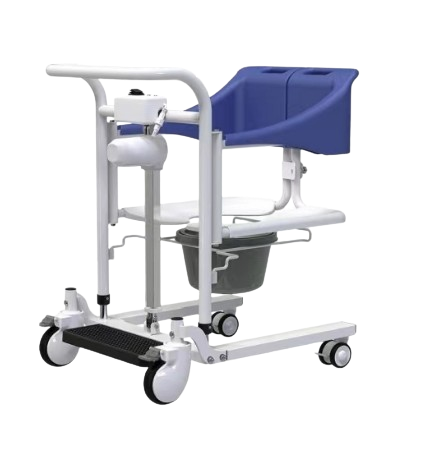

Transfer Chair HH TC02

The HH-TC02 Electric Transfer Chair offers a safe and convenient way to assist patients or elderly individuals in standing, sitting, or moving between rooms. Built with durable materials and a strong lifting mechanism, it supports up to 150 kg while maintaining smooth and quiet motion. The height-adjustable design and ergonomic seat make it comfortable for daily use in hospitals, rehabilitation centers, or home care environments. With battery-powered mobility, 5-inch front wheels, and easy operation, it provides comfort, safety, and independence.

Features

• Motorized lifting and height adjustment system

• Adjustable seat height: 415 mm – 715 mm

• Load capacity up to 150 kg

• Comfortable ergonomic seat with 43 cm width and 51 cm depth

• Four-wheel design (front 5", rear 3") for smooth movement

• Rechargeable 3200 mAh battery with 3.5 hours of charging time

• Compact and stable steel frame construction

• Easy operation for caregivers and users

• Suitable for hospitals, rehabilitation, elderly care, and home mobility support

Technical Specifications

• Model: HH-TC02

• Dimensions: 765 × 565 × 845 – 1145 mm

• Seat Width: 430 mm

• Seat Depth: 510 mm

• Seat Height Range: 415 mm – 715 mm

• Chassis Height: 120 mm

• Front Wheel: 5 inches

• Rear Wheel: 3 inches

• Net Weight: 30 kg

• Gross Weight: 36.5 kg

• Power Rating: 60 W

• Battery: 3200 mAh rechargeable lithium battery

• Charging Time: Approximately 3.5 hours

• Maximum Load: 150 kg

Features

• smulus current – up to 5 mA (30 V)
• smulaon duraon – up to 40 min
• smulus type:
• tDCS (transcranial direct current smulaon)
• tACS (transcranial alternang current smulaon)
• tRNS (transcranial random noise smulaon)
• tDCS-Sham (transcranial direct current smulaon + sham)
•  tPCS (transcranial pulse current smulaon) custom waveform
• secure administrator mode to set up sessions
• operaon modes:
• stand-alone
• USB-controlled (smulaon by specified protocol; creaon and eding of smulaon protocols)

Specifications

• 1 channel transcranial smulator for unipolar (DC) and bipolar (AC) smulaon
• adjustable smulus current of 0 up to 5 mA with 25 µA increment
• adjustable smulaon duraon of 15 s to 40 min with 5 s increment
• 16 bit D/A conversion
• sampling rate: tACS – 33 kHz tRNS – 10 kHz tDCS – 500 Hz tPCS – 10 kHz
• storage – 250 smulaon sessions
•  power supply: from 9 V baery of 6LR61 or HR22 type or rechargeable batteries (up to 3 hours) from USB of +5 V (galvanically isolated up to 4000 V)

Main Functions

This sling from Scaleo Medical offers a premium material finish: the polyurethane-coated fabric provides a smooth surface feel, reduced drag, and supports patient comfort during transfer. The design accommodates 4-point suspension loops, is compatible with many patient lift systems, and is suitable for seated, semi-recumbent, or full-body transfers depending on the variant. The material also supports hygiene via wipe-clean surfaces and helps reduce skin shear. With multiple size options and weight capacities, it is intended for regular use in clinical environments where both patient dignity and caregiver ergonomics matter.

Features

• Polyurethane-coated fabric for durability, smooth surface, and patient comfort

• Designed for 4-point suspension loop systems (compatible with major lifts)

• Supports seated, semi-recumbent, or full-body transfer positions (depending on model)

• Easy-clean material surface: supports hygiene protocols and quick turnaround

• Multiple size options for patient body sizes and loads

• Readily compatible with overhead lifts, floor hoists, or ceiling rail systems

• Promotes caregiver ergonomics and safe patient-handling workflows

• Offers enhanced comfort, especially for patients with sensitive skin or requiring frequent transfers

Technical Specifications

• Precise signal and zero baseline
• Ultra-sharp and smooth penetration
• Ergonomic design
• Made of stainless steel with a high level of strength

• Easy to open

• Effortless opening

Size Table

Color	Plastic Hub Ref Number	Metal Hub Ref Number	Length (mm)	Diameter (mm)	Surface (mm)	Gauge
	PEN102838	MEN102838	38	0.34	0.02	28
	PEN102828	MEN102828	28	0.34	0.02	28
	PEN102628	MEN102628	28	0.45	0.07	26
	PEN102638	MEN102638	38	0.45	0.07	26
	PEN102650	MEN102650	50	0.45	0.07	26
	PEN102375	MEN102375	75	0.63	0.07	23

Connection Cable
