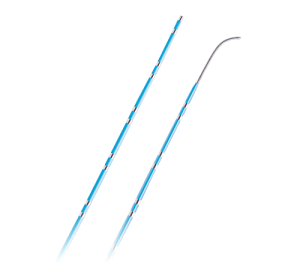

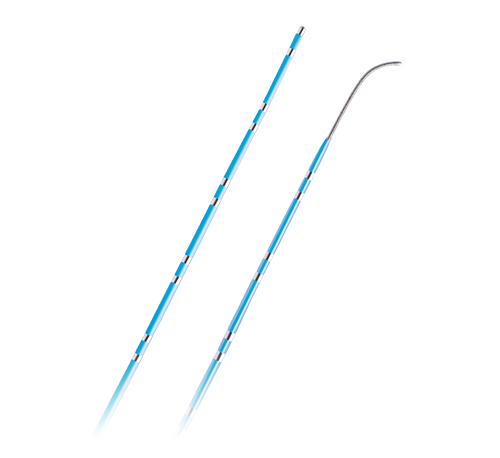

Triguy 4-3.3F Fixed Curve Mapping Catheter

Features

• -Small diameter catheter with guidewire tip enhances placement into small branches of CS
•  Braided structure for decent support when handling
•  Mapping in complex anatomies, such as Great Cardiac Vein, LV Summit, Middle Cardiac Vein, and Vein of Marshall

• 4-electrode configuration for high-resolution mapping

• 3.3F slim shaft enables access to small or tortuous anatomy

• Fixed curve for reproducible positioning and targeted contact

• Flexible distal tip enhances endocardial contact and patient safety

• High-fidelity signal transmission for clear electrogram acquisition

• Compatible with standard EP lab recording systems

• 3" color touch screen
• Standard Confirgurations: SpO2 and Pulse
• Optioal NIBP and Masimo SpO2
• Short/long trend graphic/trend table display
• Audio and visual alarm, adjustable alarm limit
• Automatic brightness adjustment
• Accurate SpO2 reading during motion or low perfusion
• Perfusion index data / bar graphic display
• Pitch tone variation for pulse rate
• Internal memory for data storage
• SD card for easy software upgrade
• Over 8 hours of operation with the re-chargeable li-ion battery
• PC software for data review and analysis on a computer

Click Here To Download Catalogue

• Can be set as required sterilization temperature, working tem. range:room tem.:+5~126 Degree.
• Can ge set as required sterilization time of heat preservation, setting range:1~99min.
• Having a low water to stop heating function.
• This product uses the high quality stainless steel SUS304. Having to work under normal conditions adequate safety strength.

• Pneumatically driven electric controlled、micro-computer controlled unit.
• Operation control panel adopts distinct LED display, easy operation.
• High quality humidifier.
• Contains high quality tubes、accessories、spare parts

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform
