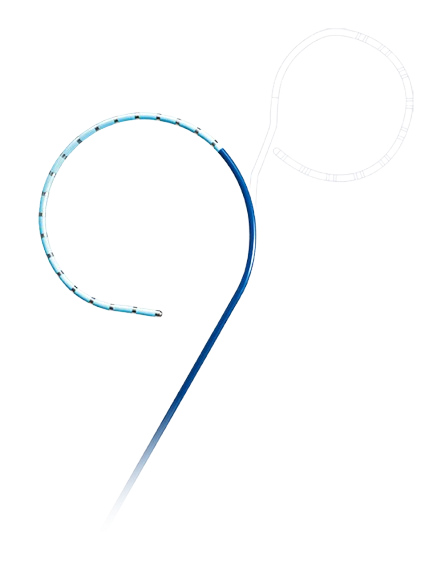

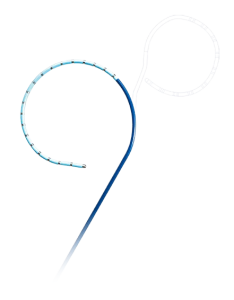

Triguy™ Steerable Duo-decapolar Mapping Catheter

Brands: APT Medical

~~$0.00~~

Steerable 20-pole electrophysiology catheter for advanced 3D cardiac mapping with enhanced reach, flexibility, and signal precision.

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Tag:

Electrophysiology

Brands:: APT Medical

Description

The Triguy™ Steerable Duo-decapolar Mapping Catheter is a state-of-the-art 20-electrode EP catheter designed for detailed, high-density cardiac mapping. Featuring a duo-decapolar (20-pole) electrode array and a highly responsive steerable shaft, it offers precise navigation and stable tissue contact, even in complex cardiac anatomy. This catheter is ideal for identifying conduction pathways and arrhythmic substrates across the atria and pulmonary veins. Its soft, flexible distal segment reduces the risk of trauma, while the optimized electrode spacing enhances electrogram clarity for accurate 3D electroanatomical mapping.

Key Features:

Duo-decapolar design (20 electrodes) for high-resolution, multi-site mapping
Steerable shaft enables precise catheter positioning
Variable curve options for tailored anatomic access
Flexible distal tip for safe endocardial contact
Optimized electrode spacing for accurate signal acquisition
Compatible with 3D electroanatomical mapping systems (e.g., CARTO™, EnSite™, Rhythmia™)
Ergonomic handle with responsive control knob

Additional information

Brand	APT Medical

Reviews

There are no reviews yet.

Be the first to review “Triguy™ Steerable Duo-decapolar Mapping Catheter”

Quick Comparison

Triguy™ Steerable Duo-decapolar Mapping Catheter remove Drip Stand remove i-gel Supraglottic Airway remove Bistos BT- 740 Patient Monitor remove Render SD-H3000A Mobile ICU Ventilator remove Bistos BT- 410 Medical Head Lamp remove

Name Triguy™ Steerable Duo-decapolar Mapping Catheter remove Drip Stand remove i-gel Supraglottic Airway remove Bistos BT- 740 Patient Monitor remove Render SD-H3000A Mobile ICU Ventilator remove Bistos BT- 410 Medical Head Lamp remove


SKU SF1033560084-67 SF1033560084-76 SF1033560059-9 SF1033560011-21 SF1033560059-6

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Steerable 20-pole electrophysiology catheter for advanced 3D cardiac mapping with enhanced reach, flexibility, and signal precision. Shipped From Abroad

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock Drip Stand is a very simple, easy to adjust and maneuver product. Suitable for most healthcare environments, this drip stand is light in weight made of high-quality stainless steel. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Bistos BT- 410 Medical Head Lamp - Head-worn light BT-410 provides not only comfortable wear but also convenient for use during examinations or operations. - Ultra bright LED light with High density LED - Easy to adjust head strap & an angle - Extensive LED lifetime (more than 50,000 hours) - More than 4 hours of continuous use - An additional astral LED lamp (optional) - Attachable loupe (optional) Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Key Features:

Duo-decapolar design (20 electrodes) for high-resolution, multi-site mapping
Steerable shaft enables precise catheter positioning
Variable curve options for tailored anatomic access
Flexible distal tip for safe endocardial contact
Optimized electrode spacing for accurate signal acquisition
Compatible with 3D electroanatomical mapping systems (e.g., CARTO™, EnSite™, Rhythmia™)
Ergonomic handle with responsive control knob

Drip Stand is a very simple, easy to adjust and maneuver product. Suitable for most healthcare environments, this drip stand is light in weight made of high-quality stainless steel. Use : Bedridden patients, Senior citizen care, Patients in coma Advantages :

High quality stainless steel construction
Properly electroplated for anti rust finish
Ball shaped castors for smooth movement
Provided with an infusion stand
Attached 4 pcs hook
Maximum load strength
Screw safety height adjustment
Light weight

i-gel Supraglottic Airway: The i-gel® is the innovative second generation supraglottic airway device from Intersurgical. The first major development since the laryngeal mask airway, i-gel has changed the face of airway management. Features: i-gel has a soft, gel-like, non-inflatable cuff, designed to provide an anatomical impression fit over the laryngeal inlet. The shape, softness and contours accurately mirror the perilaryngeal anatomy - an innovative concept meaning no cuff inflation is required. Working in harmony with the patient's anatomy, compression and displacement trauma are significantly reduced or eliminated.

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years

Click Here To Download Catalogue

Features: Main performance and Technical Index:

Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

Air circuit Performance:

Maximum safety pressure of air circuit: no more than 6kpa.
Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

Respiratory rate (f): 4-99 times / min,
Inspiratory time (Ti): 0.2-6 s,
Breath holding time (Tp): 0-2s,
Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
Tidal volume (Vt): 0-2000ml;
Maximum minute ventilation volume: not less than 18 L / min.
PSV：0～5 kPa,
Peep Pressure: 0-3kpa,
Inspiratory flow rate: 0-80 L / min.
SIMV frequency: 6-60 times / min,
Inspiratory pressure: 0-6kpa,

Alarm Performance:

Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
Mute: no more than 2 minutes.

Monitoring Performance:

12.1 inch color LCD
Tidal volume (VT): 0 ～ 2000ml
Measured total frequency (Ftot), Spont. frequency (Fspont)
Minute ventilation (Mv).
I: E ratio.
Airway pressure (PAW).
Peak pressure (Ppeak)
Peep pressure: 0.1 ~ 2KPa
Pressure-Time and Flow-Time waveform

Technical Specifications

Model NO. - SD-H3000A

Type - Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Kind - Gynaecology

Certification - CE, FDA, ISO13485

Group - Adult

LCD Display - With LCD Display

Trademark - RENDER

Transport Package - Wooden Package

Origin - China

HS Code - 9018907000

Bistos BT- 410 Medical Head Lamp - Head-worn light BT-410 provides not only comfortable wear but also convenient for use during examinations or operations. - Ultra bright LED light with High density LED - Easy to adjust head strap & an angle - Extensive LED lifetime (more than 50,000 hours) - More than 4 hours of continuous use - An additional astral LED lamp (optional) - Attachable loupe (optional). Features: Illumination Uniformity:

Multi-lens structure ensures high level of uniform luminance in its light spot.

Coaxial Design:

Light source is located between two eyes is able to cast least shadow on the surface.
Also, the luminance angle moves freely with pivot joint structure.

Interchangeable Battery:

Rechargeable battery is interchangeable. With additional battery, no need to worry anymore about remaining power.

Technical Specifications: Model - (BT - 410) Order code - 410F Illumination - (Standard - 15,000 - 30,000 lx) Adjustable Illumination - Yes Illumination Uniformity - High Adjustable Light Spot - No Light Spot Size (at 300mm) - 70mm Astral Lamp - No Color Temperature - 6,000 K LED Life Time - Appox. 50,000 hour Loupe: Type - Single Lens Magnification - 2 x Battery: Type - Lithum-ion Capacity - 3.7V / 2,200 mAh Run time - 4 hour Charging time - 4 hour Weight - 190 g Band Size - (540 - 640mm) Warranty - 1 year
