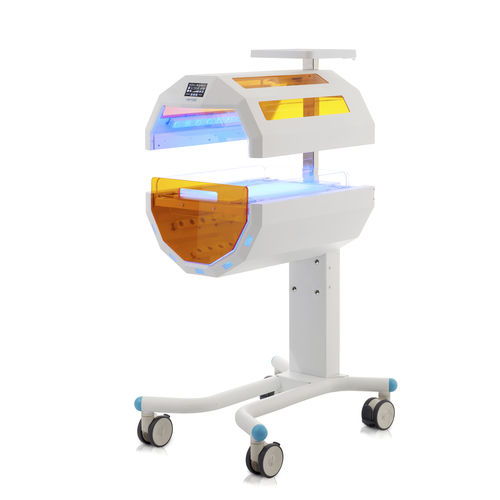

Tunnel Type LED Phototherapy Unit KLA-145LT

Features

• A 360-degree superintensive phototherapy device
• Even light distribution
• Reduced treatment time for hyperbilirubinemia
• Mobile floor stand device
• Heavy-duty stand with 4 castors (2 lockable)
• 100 % sliding out cradle with net
• Rails on both side
• Working & total hour counter & clock
• 5" touchscreen color LCD with lock
• Air and skin temperature sensor
• Adjustable height of the upper tunnel part
• Adjustable irradiance level
• The upper and lower part of the tunnel operation can be selected
• Observation windows on the front and both side
• Displayed information: date & time, patient information, treatment duration, the distance between the upper & lower part, intensity adjustment, skin temperature, alarms, Fahrenheit/Celsius converter, language, trend
• 6 pcs LED bar

Technical data

• Polaris.com, a powerful data management system, supports the straightforward administration and organization of diagnostic data. Modern communication interfaces (HL7 and GDT/BDT) enable integration into hospital and practice information systems.
• Digital Video Software allows synchronized digital video for EEG systems using webcam, professional HD camera, or picture-in-picture as per requirements.
• EEG Mapping, offers amplitude with spectral and frequency online mapping during acquisition, even with single channels and montages.
• Spike and Seizure Detection Software with a high sensitivity and a stunningly low false positive rate.
• Polysmith* combines sleep analysis software with recording devices to provide quick and precise data analysis – for a complete PSG solution customized to individual needs.
• EEG Trend Program converts EEG signals into clear trend graphs making them easy to interpret (aEEG, DSA, CSA, Power FFT).
• Smart vital signs interface for holistic multimodality assessment of patient, with capability to pull up 8 channels from bedside monitors
• Live View Panel offers intuitive real-time management of diverse neuromonitoring data from a centralized location.
• Amplifier: high-quality amplifier with 38 to 256 channels realizes wide-band EEG recording from slow shift to fast ripple.
• Brain function mapping system: a comprehensive and sophisticated system for brain function mapping reduces timeconsuming procedures by combining cortical stimulation, easy switch between stimulation and recording, and a brain function mapping report all in one place.
• EEG scope: data reviewer that allows review of previous EEG while monitoring, acquiring, and opening up to 4 EEGs at the same time.
• 3D voltage mapping: whole head maps offer a complete overview and better interpretation of the topography of EEG abnormalities.
• Customizable Main Menu that allows registration of examination protocol buttons on the main menu. Each button has user-defined settings for an examination which can be adjusted for different examination conditions and methods
• Note Window offers to save up to 1,000 sections of waveforms for comparison by dragging and dropping. Up to 100 copied waveforms can be registered as sample data for comparison with other patients or teaching purposes.
• NeuroReport, which is integrated in all Nihon Kohden EEG systems, offers individually configured report templates, including adaptive auto text functions, for fast and simple reporting. It guarantees maximum flexibility and compatibility.

Click Here To Download Catalogue

• State-of-the-art low-noise amplifier with 18-bit A/D converters and artifact-reduction software provides clean waveforms
• Built-in rejection ratios of 110 dB or greater (differential mode) and 112 dB or greater (isolation mode) limit variations in signals
• Electrode input impedance of 200 MΩ ±20% helps ensure clean signals
• On-screen examination guide directs electrode and stimulation placement for smooth and efficient examinations
• HL7^® gateway integration helps ensure quick flow of information and streamlines workflow
• Intuitive control panel and stimulators aid in acquiring and progressing through studies
• Customizable protocols shorten examination time
• One-click report generation produces print-ready reports with customized logos, test results, exam waveforms and highlighted abnormal values
• Proprietary all-in-one NCS program performs MCS, SCS and F-wave for quick examinations
• Customized auto-copy settings allow waveforms to be stored and automatically transferred to long-term storage

Click Here To Download Catalogue

• Weight - 105 kg
• Dimensions - 92 cm Wide x 68 cm Deep x 139 cm High (93 cm to the table surface)
• Packaging Dimensions - 105 cm Wide x 75 cm Deep x 160 cm High
• Operating voltage supply - 110 to 240 V~, 47 to 63 Hz (12 to 6 A)
• Power input - 120 W typically (max. 1.2 kW with auxiliary outlets used)
• Battery autonomy - 90 min typically
• Auxiliary power outlets - 4, with automatic protection
• O₂, N₂O and Air supply - 2.7 to 6.9 bar (39.1 to 100 psi)
• Screen - TFT 18.5" (47 cm) projected capacitive touchscreen
• Protection class - Class I, gas analyser type BF defibrillation proof
• Classification - Class II b
• Storage - One front drawer with self-brake system and two back cabinets with door
• Lighting - LED bar below the screen controlled from the touchscreen
• Auxiliary integrated systems - Auxiliary 02 flow meter (0-15 L/min), Auxiliary 02 suppy valve (NF standard) and Suction device
• Communication ports - 1 x RS-232, 2 x USB, 1 x LAN Ethernet

• Fresh gas flow - 0 and 0.1 to 18 L/min 02/N20/Air
• Accuracy - 0.1 to 0.5 L/min = ±0.05 L/min; 0.5 to 18 L/min = ±10 %
• 02 concentration - 21 to 100% vol. with Air, 25 to 100% with N20 (minimum 200 ml/min 02)
• 02 Safety fresh gas (backup) - 0-0.2-0.4-0.7-1-1.5- 2- 3- 4- 6- 8-10-12-15 L/min 02
• 02 flush (+02) - 40 L/min standard (adjustable 25 - 75 L/min upon requirement)

• Autoclavable - 134 °C
• Weight of breathing system - 9.8 kg
• C02 absorber volume - 1.5 L
• Leakage - < 150 mL/min (at 30 hPa)
• Pressure limiting valve APL - 0 to 70 hPa
• Pressure relief valve - 125 hPa
• Vacuum safety valve - 0.3 hPa
• resistance at 60L/min - 5.80 hPa
• resistance at 60L/min - 2.90 hPa
• resistance at 30L/min - 3.55 hPa
• resistance at 30L/min - 0.89 hPa
• Internal Compliance at 30 hPa - 15 mL

• Volume Controlled Ventilation (VCV)
• VC Synchronized Intermittent Mandatory Ventilation (VC-SIMV)
• VC-SIMV with Pressure Support (VC-SIMV-PS) *

• Pressure Controlled Ventilation (PCV)
• PC Synchronized Intermittent Mandatory (PC-SIMV)
• PC-SIMV with Pressure Support (PC-SIMV-PS) *

• Adaptive Pressure with Volume Guaranteed (APVG) *
• APVG Synchronized Intermittent Mandatory (APVG-SIMV) *
• APVG -SIMV with Pressure Support (APVG-SIMV-PS) *

• (other trade names: PS, ASB, SPS, IPS)

• Manual ventilation through the CABS system (Auto/Manual software controlled)
• Spontaneous ventilation either through the bellows (auto mode) or through the bag
• (manual mode) Manual ventilation through the external fresh gas outlet for non-rebreathing systems (Bain, Mapleson, ...)

• Tidal volume - 5 to 1500 mL
• Inspiratory pressure - 0 to 68 hPa
• Ventilation frequency ­- 3 to 120/min
• Inspiratory time - 0.05 to 16.6s
• l:E ratio - 5:1 to 1:8
• Inspiratory pause - 0 to 60%
• Inspiratory flow - max. 150 L/min
• PEEP - 0 to 30 hPa
• Flow trigger - 0.2 to 15 L/min
• Pressure support - 5 to 50 hPa
• Ramp time - 0.1 to 2 s
• Maximum pressure - 0 to 68 hPa

• 5" (47 cm) projected capacitive touchscreen, supported on a 360° rotating and 2 axis tilting arm.
• Measurements displayed: Peak pressure; Plateau pressure; Mean pressure; Expiratory minute ventilation; Expiratory tidal volume; Inspiratory tidal volume; Expiratory volumeter; Breathing rate; Compliance and Resistance (in VC modes); Patient info (age, weight, MAC, Class ASA); Connected sensors; Battery status; Power supply status; Gases supply pressures for 02, N20 and Air; Inspiratory and expiratory concentration of 02, N20, C02 and Anaesthetic gas*
• Parametres charted as curves (up to 3 simultaneously): Airway pressure; Expiratory flow; Inspiratory flow; Volume; Fresh gases (Rotstyle); Concentration of 02, N20, C02 and Anaesthetic gas*; Trends: Minute volume, MAC and gases (02, N20, C02 and Anaesthetic gas).
• Display for the performance of the hospital Anaesthetic Gas Scavenging System (AGSS).
• Configurable interface: bright/dark, multi-language.
• Loops (up to 2 simultaneously): Volume-Pressure, Flow-Volume, Pressure-Flow, C02-Volume.
• Fresh gas virtual rotameters for 02, N20, Air. * C02, N20 and Anaesthetic gas monitoring with the accessory multigas analyzer main-stream or side-stream; 02 real-time monitoring via paramagnetic

Click Here To Download Catalogue

• This portable stadiometer is simple to set up and easy to use. It is durable and lightweight all-plastic construction, disassembles quickly, pieces fold neatly into footplate for easy carrying
• There's no wall fastening necessary and it may be positioned against a wall or completely free standing due to its large floor plate
• The stadiometer measures from 8 inch – 82 inch and 20 cm – 210 cm with 0.125 in / 0.1 cm graduations visible on both sides of the height rod
• This portable height measuring rod is lightweight and easily carried - ideal for any traveling medical professional
• A window in the Stadiometer's headpiece allows for a clear view of the height reading

• Both gas-motivated and oil-motivated are all can be preferred according to customers' needs.
• Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
• Daily waste can be burned once by gasified incineration.
• Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
• Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

• Long lifetime
• Totally enclosed operation
• Suitable for treating infectious waste
• Avoid secondary pollution
• Simple operation
• Smokeless and no harmful to environment
• Continuously and fully burning
• Simple operation
