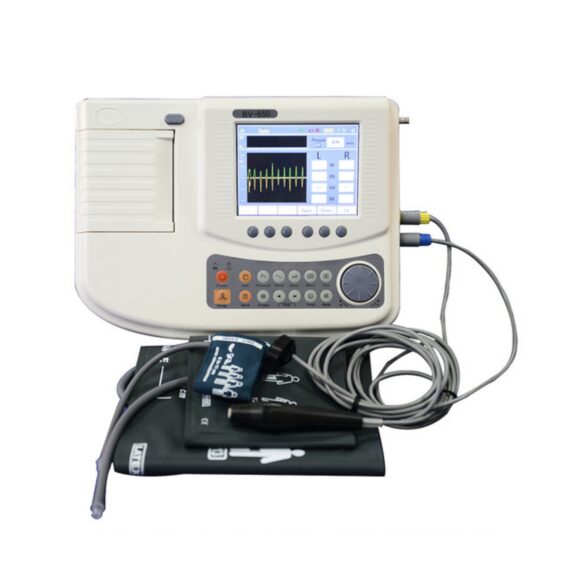

Ultrasonic Vascular Doppler Detector

Brands: Bestman

~~$0.00~~

Shipped From Abroad

Feature:

1. Obtains two pressures at each ankle site (PVR and DOPPLER)

2. Automated segmental studies to customize the item

3. Automatic ABI, TBI and segmental calculation

4. Performs the Seated ABI on mobility impaired patients

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013037

Tags:

Deals of the day / Ultrasonic Vascular Doppler Detector

Brands:: Bestman

Description
Reviews (0)

Description

Feature:

1. Obtains two pressures at each ankle site (PVR and DOPPLER)

2. Automated segmental studies to customize the item

3. Automatic ABI, TBI and segmental calculation

4. Performs the Seated ABI on mobility impaired patients

5. Bi-Directional Doppler probe

6. PVR waveform modality & PPG probe to obtain toe and limb pressures

Specification

Ankle-brachial index(ABI),toe-Brachial Index(TBI) ,segment exams, automatic calculation of the indices

Control mode: automatic cuff inflation/deflation and hand-held controller

Wave mode: bi-directional doppler, pulse volume recording(PVR), photoplethysmography(PPG)

Doppler specification: bi-directional continuous wave(CW), waveform amplitude accuracy:+/- 10%,

Probe: 8MHz

PPG specification: wave length:940nm, synchronous demodulation, AC paired

PVR specification: bandwidth 0.16-12.5Hz, AC paried

Display: 5.6inch, TFT, (640*RGB*480)

Printer: paper width:80mm, printing width:70mm, resolution 8 points/mm

Data storage and transmission: maximum store 100 patient’s data, transmission to computer via USB 2.0

Power supply:100-240VAC, 50-60Hz
