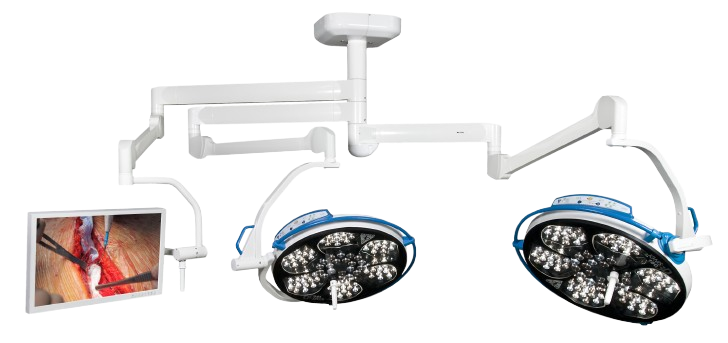

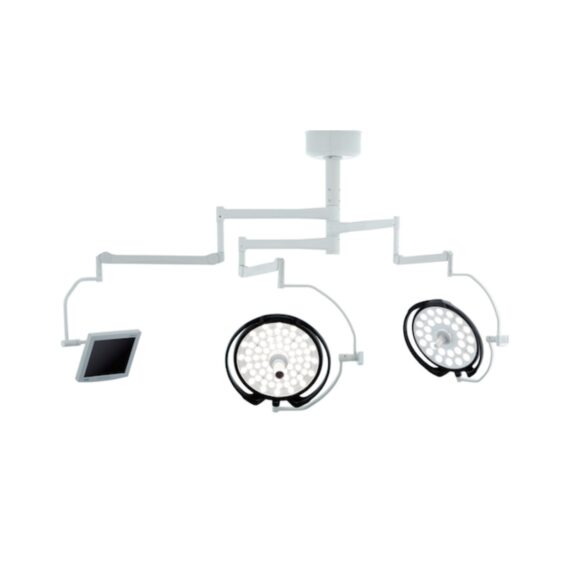

Uzumcu DL-62C LED Operating Lights Twin Dome Ceiling Mounted with Camera

The DL-62C LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K - 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm
• Illumination power, in 1 m: 160.000 Lux
• Color temperature: 3500 K – 5000 K
• Color rendering index, Ra CRI: 96%
• Dimming Range: % 1 – 100
• Adjustable focus diameter: 120 – 300 mm

Click Here To Download Catalogue

JSF-JC02 Examination Lamp

Product Features

Technical parameters:

Features

• Unique Multi-faced Reflection technology ensures high performance of illumination within the light field
• One main L70cm dome with max. illumination of 160,000lux
• One satellite L50cm dome with max.illumination of 120,000lux
• 4300K color temperature in accordance with sunlight which request by operation (With optional color temperature adjustment range from 3700-5100K by 5 steps)
• With color-temperature adjustment function added as an option
• Good Laminar Flow design for surgeon/s comfort
• High CRI performance reduces eye fatigue in long term operation
• MIS(Endo) Mode for ambient light
• Advanced heat management system offer real cool light
• Germany LED resources offer a long life of>60000H
• Optional HD Camera, HD Monitor, and Back-up Battery for selection

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm (Main Lighthead x1), Ø440 mm (Satellite Lighthead x1)
• Illumination power, in 1 m: 160.000 Lux (Main Lighthead x1 and 120.000 Lux(Satellite Lighthead x1)
• Color temperature: 3500 K - 5000 K(Main Lighthead x1) and 3500 K - 5000 K(Satellite Lighthead x1)
• Color rendering index, Ra CRI: 96% (Main Lighthead x1) and 96%(Satellite Lighthead x1)
• Dimming Range: % 1 – 100(Main Lighthead x1) and % 1 – 100(Satellite Lighthead x1)
• Adjustable focus diameter: 120 – 300 mm(Main Lighthead x1) and 120 – 300 mm(Satellite Lighthead x1)
• Temperature increase in surgical area: < 0,5°C(Main Lighthead x1) and < 0,5°C(Satellite Lighthead x1)
• Number of LED modules: 68(Main Lighthead x1) and 28(Satellite Lighthead x1)
• Lifetime of LED: 50.000 hour(Main Lighthead x1) and 50.000 hour(Satellite Lighthead x1)
• IP: IP 54(Main Lighthead x1) and IP 54(Satellite Lighthead x1)

Click Here To Download Catalogue

Features

• Complete round light dome made of molding plastic for best shadowless efficiency and less weight for movement.
• Multi-facet reflector technology, assures low power consumption, and uniform lighting effect on the surface and depth.
• The lamp dome body is waterproof and dustproof up to the international IP54 standard (providing domestic and international authoritative third-party test reports).
• Pure cold white LED from an internationally famous brand, protects the eyes of doctors and patients.
• Particular Optics Array:7 groups patented reflective technology with multiple-facet reflector, using Germany-made LED bulb, offers excellent focusing, illumination, and shadowless efficiency.
• Optimal Cold and Natural Lighting: Advanced CRI, color temperature, and temperature control meet the high standard examination request, ensuring the most comfortable use and feeling for the operator and patient.
• Optimized Illumination Controling Provides Power ON/OFF, dimming adjustable from 10%-100% by 9 levels to satisfy different using
• The lifetime of the LED light source is over 50,000 hours. At the same time, each LED component can be replaced independently, which is economically and environmentally friendly.

JSF-JC01 Examination Lamp

Product Features

Technical parameters:

• Model: JSF-JC01
• Power supply: 220V
• Bulb: Halogen
• Bulb power: 12V/35W
• Illumination(50cm):30 000Lux
• Height adjust: √
• Color temperature:4000K
• lifetime: 4000h
