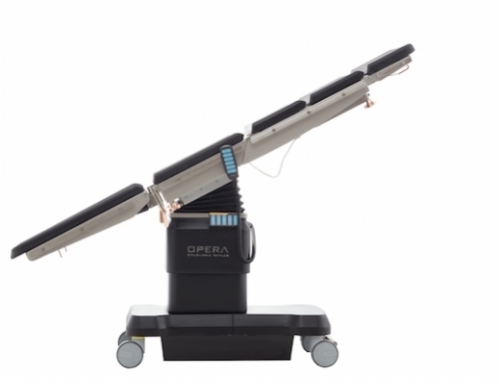

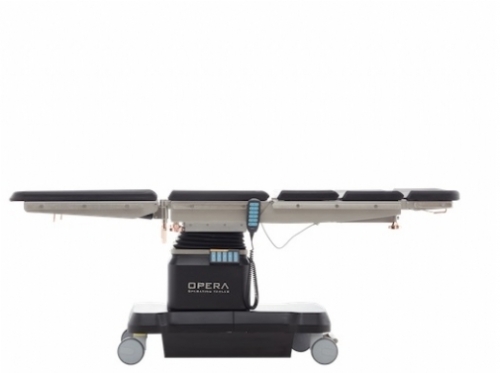

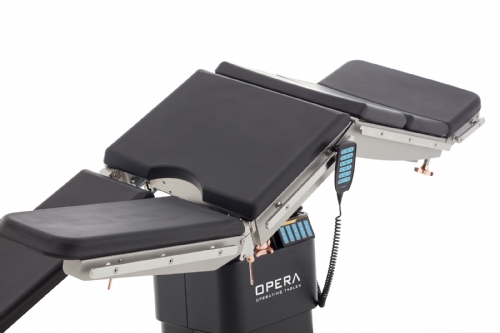

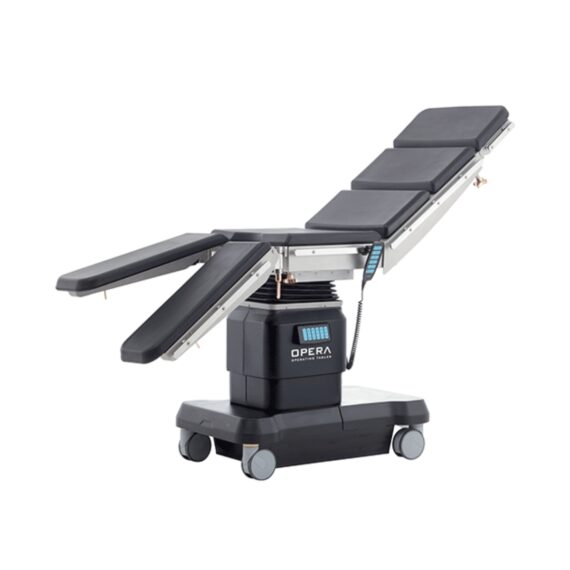

Uzumcu OP-2P Operating Table Electric

• Modular design taking shape by different surgical operations with high stability.
• Solutions ensuring to reach the position required by any kind of surgical operations with its wide range of accessory options.
• Telescopic body specifications enabling height adjustment at different levels.
• Wheel system which is made of ABS plastic, with high multi-directional mobility and 125 mm in diameter (OP Series).

• Image reception ability in a wide area without disturbing the sterile environment with the flouroscopy device by its slideability within 300 mm on horizontal plane.

• Maximum surgical area visibilty and operational success with kidney surgical elevator integrated on the table and that can be adjusted up to 300 ̊(120 mm).

• High-quality image reception facility with table top made of compact material with high x-ray permeability.
• Visco or polyurethane mattress options ensuring patient comfort by taking shape of body parts of patient and preventing decubitus prophylaxis.
• Cleanable and sterilizable mattress for decontamination of operating room with its seamless structure and demount ability.

• Design that can get different angles according to the operation’s kind, demountable head and foot plates.

• Unlimited perineal accessibility with demountable foot plate.

Click Here To Download Catalogue

• PBT-6 is a 4 way Motorized Tabletop with Elevating feature (66cm). A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Automatic Stitching - GXR-SD system provides outstanding automatic stitching function with Source tilting method
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs

Click Here To Download Catalogue

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA: Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1. V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.

Click Here To Download Catalogue

• 4 way Tabletop Patient Table (PBT-4) A large tabletop with extended travel enables all radiography studies with minimal patient movement, and supporting patient weight up to 300kg. Fully at tabletop without a frame on the edge makes cleanliness and odors free
• Floor Mount Tube Stand (TS-FM6) Floor Rail type tube stand provides all radiography studies with smooth movement on the rail.
• Wall Bucky Stand (WBS) Elegant design, durable and easy-to-use Wall Bucky Stand provides full satisfaction.

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
