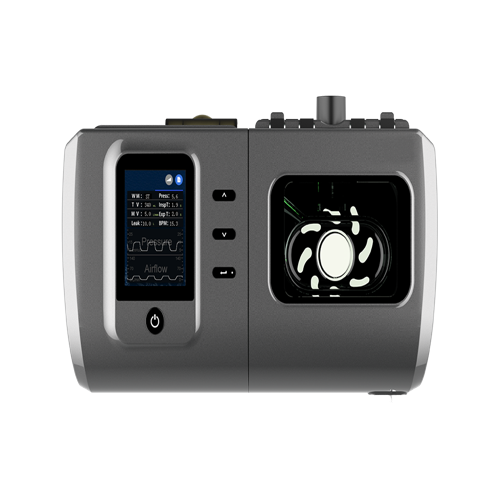

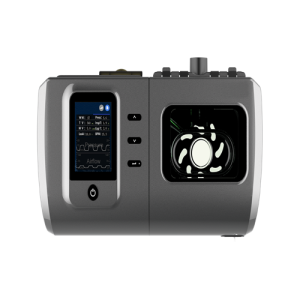

VentMed Bipap ST30 (DS-8) Machine
$0.00
Shipped From Abroad
The Ventmed BiPAP ST30 is a trusted, non-invasive ventilation device ideal for both home and hospital use, featuring advanced CPAP, Auto, S, T, ST, and APCV modes. Perfect for critical patients, it ensures comfortable breathing with Automatic Synchronization Technology (AST) and offers easy data management via SD card or cellular. This best-selling BiPAP device improves vitality and provides reliable respiratory support. 0
- Easy Navigation: Up and down keys make operation simple and durable.
- Easy Handling: User-friendly device settings for convenient adjustments.
- Humidification: Advanced system ensures optimal humidity levels at 10ml/L for 60L/min flow.
- Sleep Report: Provides professional analysis with real-time display and Man-machine Synchrony.
- Comfort Algorithm: Automatically adjusts pressure, breathing, and leakage for user comfort.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The Ventmed BiPAP ST30 is a non-invasive ventilation (NIV) therapy device designed to facilitate breathing. It is versatile, suitable for use in both hospital settings and home environments. The device supports various work modes, including CPAP, Auto, S, T, ST, and APCV.
APCV mode is specifically designed for critical patients experiencing rapid, shallow breathing (high-frequency breathing) and low tidal volume. This mode primarily aims to achieve the targeted tidal volume, making it particularly useful in hospital settings.
Key Features and Benefits:
- Effective Treatment with AST: The device features Automatic Synchronization Technology (AST), which anticipates the patient’s respiratory waveform. It adjusts the EPAP and IPAP accordingly to ensure the patient’s comfort and mechanical synchrony.
- Data Management: The device supports data storage via an SD card or cellular options, depending on the customer’s request. This feature allows for easy monitoring and management of therapy data.
- Home Use Design: The Ventmed BiPAP ST30 is specifically designed for home use, incorporating unique algorithms and intelligent modes to cater to individual needs. It allows for multiple parameters to be set, providing a customizable therapy experience.
The Ventmed BiPAP ST30 is an essential tool for improving respiratory health, helping patients breathe more smoothly, and enhancing overall body vitality.
BiPAP DS-8(ST30) Specifications
| Specification | Details |
|---|---|
| Description | BiPAP DS-8(ST30) |
| Work Mode | CPAP, Auto, S, T, ST, APCV |
| Pressure Range | 4-30 cmH2O |
| IPAP | 4-30 cmH2O |
| EPAP | 4-20 cmH2O |
| Data Storage | SD Card |
| Power Supply | Input 100-240V, 50-60Hz, 1-2A; Output + 24V, 2.5A |
| DC Voltage | 24VDC, 2.5A |
| Over-Temperature Protection | Stop automatically, alarm with 4 times |
| Lock Function | Yes |
| Screen Auto Sleep | Auto sleep in 15 minutes, press any button to highlight screen |
| Backup Rate | 5-50/min, adjustable |
| I/E | 10-80% |
| Ramp Item | 0-60min adjustable 1min/Step |
| Auto ON/Off | Yes |
| Inspire Trigger | 1-5 level |
| Expire Level | 1-5 level |
| Inspire Sensitivity | 1-5 level |
| EPR | Yes, 0-3 level |
| Auto-Altitude | Yes |
| Leak Compensation | Yes |
| Awake Detection | Yes |
| Breath Event Detection | Yes |
| Water Capacity | 220mL max |
| Humidifier Level | Integrated Heated, 0-5 level |
| Alert | Power off, mask off |
| Dimensions (cm) | 28L x 14W x 9.5H (machine); 38.5L x 36.5W x 16H (1 pc carton) |
| Weight (with humidifier) | 1.6kg (net weight); 3.9kg (gross weight) |
