WOWO 200 Anesthesia Ventilator
$0.00
Shipped From Abroad

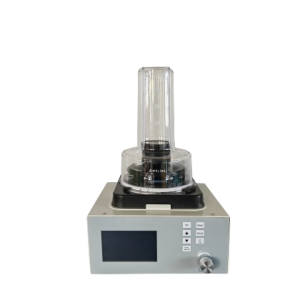

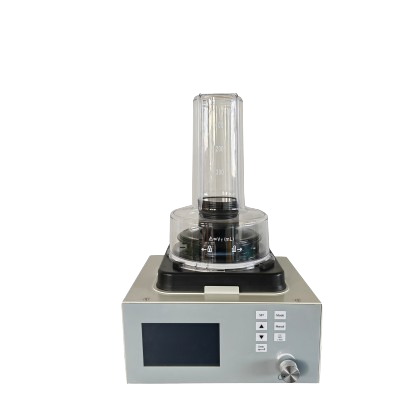

The WOWO 200 Portable Anesthesia Ventilator is a medical device designed to provide respiratory support during anesthesia procedures. It is suitable for use with both adult and pediatric patients, offering versatility across different age groups.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Key Features:
-
Display: Equipped with a high-resolution 5.5-inch TFT LCD screen for clear visualization of settings and monitoring parameters.
-
Control Mechanism: Operates using a pneumatic-driven, electric control system, ensuring precise and reliable performance.
-
Operating Modes: Offers both manual and automatic modes, including Demo, IPPV (Intermittent Positive Pressure Ventilation), SIGH, SIMV (Synchronized Intermittent Mandatory Ventilation), and SIPPV (Synchronized Intermittent Positive Pressure Ventilation).
-
Tidal Volume Range: Adjustable from 0 to 1,500 mL, accommodating a wide range of patient requirements.
-
Respiratory Rate: Configurable between 4 to 99 breaths per minute (bpm), allowing customization based on clinical needs.
-
I:E Ratio: The inspiratory to expiratory ratio is adjustable from 1:0.5 to 1:8, providing flexibility in ventilation settings.
-
Synchronizer Trigger Pressure: Settable between -30 to 0 cmH₂O, facilitating synchronization with the patient’s spontaneous breathing efforts.
-
Pressure Settings:
-
High Pressure Limit: Adjustable from 20 to 60 cmH₂O to prevent barotrauma.
-
Low Pressure Limit: Adjustable from 0 to 20 cmH₂O to ensure adequate ventilation.
-
-
Monitoring Parameters: Provides real-time data on P-T (Pressure-Time) waveform, tidal volume, respiratory rate, I:E ratio, peak airway pressure, and minute volume, aiding in comprehensive patient monitoring.
Specifications
| Feature | Specification |
|---|---|
| Display | 5.5-inch high-resolution TFT LCD |
| Application | Adult, Pediatric (Optional) |
| Control System | Pneumatic-driven, Electric control |
| Working Modes | Manual & Automatic (Demo, IPPV, SIGH, SIMV, SIPPV) |
| Tidal Volume | 0 – 1500 mL |
| Respiratory Frequency | 4 – 99 bpm |
| I:E Ratio | 1:0.5 – 1:8 (adjustable) |
| Synchronizer Trigger Pressure | -30 ~ 0 cmH₂O |
| High Pressure Limit | 20 – 60 cmH₂O |
| Low Pressure Limit | 0 – 20 cmH₂O |
| Monitoring Parameters | P-T Waveform, Tidal Volume, Respiratory Rate, I:E Ratio, Peak Airway Pressure, Minute Volume |
