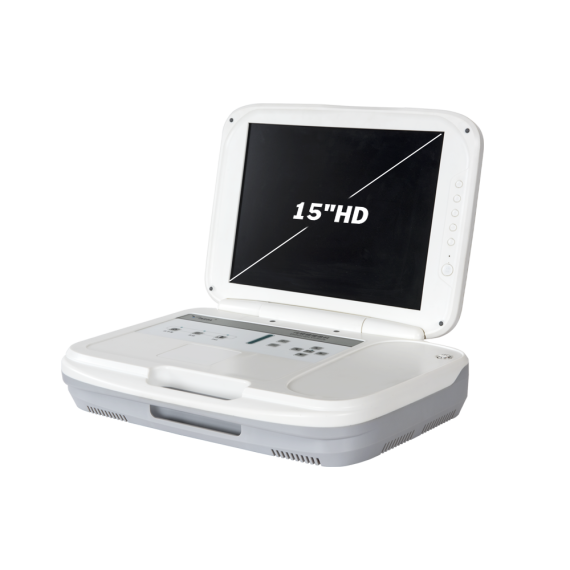

YKD-9003 Medical Portable Endoscope Camera
$0.00
Shipped From China
The YKD-9003 Full HD Portable Endoscope Camera System integrates a Sony CMOS camera, 15-inch monitor, LED cold light source, and USB recording. Designed for clinical portability, it delivers clear 1080p imaging and efficient workflow for endoscopic procedures.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

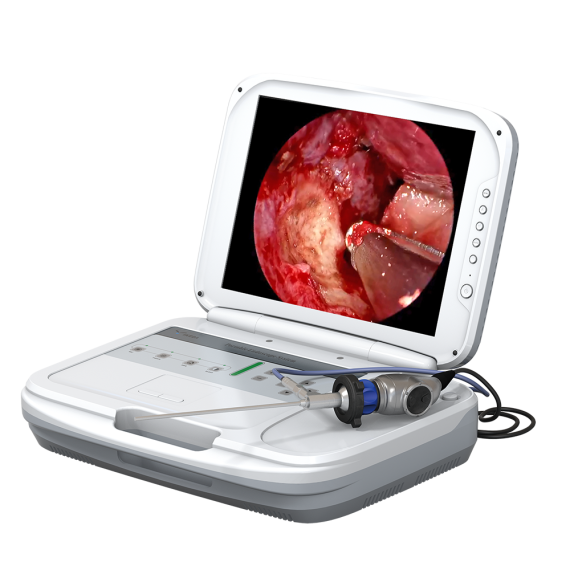

The YKD-9003 Full HD Endoscope Camera System is a portable, all-in-one imaging solution designed for diagnostic and minimally invasive procedures. It combines a 1/2.8-inch Sony CMOS camera, LED cold light source, and 15-inch HD monitor into a single compact unit. The system produces clear 1920×1080 images with accurate color reproduction and supports real-time photo and video recording via USB. With an IPX8 waterproof camera head and intuitive controls, it ensures reliable performance in hospitals, clinics, and mobile medical environments.
Key Features
-
All-in-one portable system (camera + monitor + light + recorder)
-
1/2.8″ Sony CMOS Full HD image sensor
-
1920 × 1080 Full HD resolution at 60 fps
-
15-inch HD medical display
-
Built-in LED cold light source (~80W)
-
USB storage for photo capture and video recording
-
IPX8 waterproof camera head
-
Progressive scanning for smooth imaging
-
Touchscreen/touch-button interface
-
Multiple outputs: HDMI, DVI, CVBS
YKD-9003 Medical Portable Endoscope Camera
- FULL HD Image Sensor
- 15-inch FHD monitor, FHD camera head, and LED cold light source integrated;
- Built-in USB FULL HD image storage, Integrated photo/video recording system;

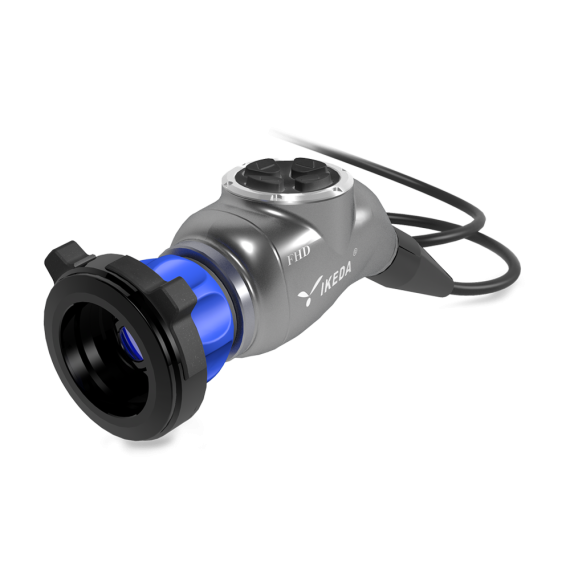

FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Sony CMOS
- Better Dynamic Range: with almost +17dB difference due to pixel well depth.
- Higher Quantum Efficiency (QE) and Lower Dark Noise contribute to better image fidelity.
- Higher Frame Rate: CMOS sensors have better shutter speeds, resulting in less image blur.
- Affordability: Despite their high performance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
Specifications
| Camera head | · Full HD imaging (1920 x 1080) |
| · 1/2.8″ SONY CMOS | |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | · 50-60 Hz |
| Device protection | · 2x T3,15 A |
| Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen Size | · 15 Inch |
| Light Source | · Built-in 80W LED cold light source |
| Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
| Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) | ·I |
| Safety Class | BF |
| Standard | IBC 60601-1-2 |
| Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons/Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
| Language | · Chinese/English/Japanese/Korean/Russian/Spanish |
| Dimensions | · 440(L)x115(W)x330(H) |
| Weight | · 6.7 KG |
