YKD-9006 Endoscopy Camera system
$0.00
Shipped From China
The YKD-9006 Full HD Endoscope Camera System features a Sony CMOS sensor, integrated LED cold light source, and USB recording. Designed for endoscopic procedures, it delivers clear 1080p imaging, reliable performance, and a compact, easy-to-use solution for clinical environments.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Key Features
-
1/2.8″ Sony CMOS Full HD image sensor
-
1920 × 1080 Full HD resolution imaging
-
Integrated LED cold light source and camera system
-
Built-in USB storage for photo and video recording
-
IPX8 waterproof camera head
-
Touch-button interface for easy cleaning and operation
-
Progressive scanning for smooth imaging
-
White balance, zoom, freeze, and capture functions
-
Multiple outputs: HDMI, DVI, CVBS
-
Compatible with standard C-mount optical couplers

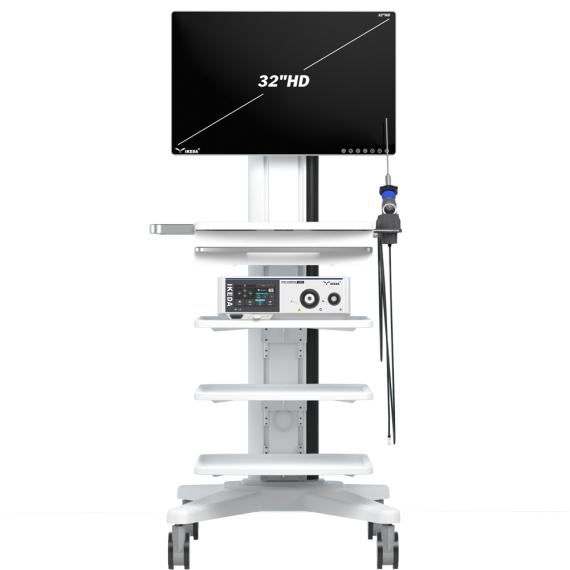

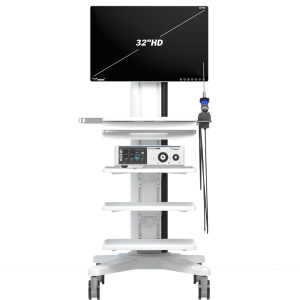

Full HD Endoscopy Camera System
- Camera Control Unit-YKD-9006
- Camera Head -IPX8 waterproof grade
- Medical Monitor
- Medical trolley -YKD-2100

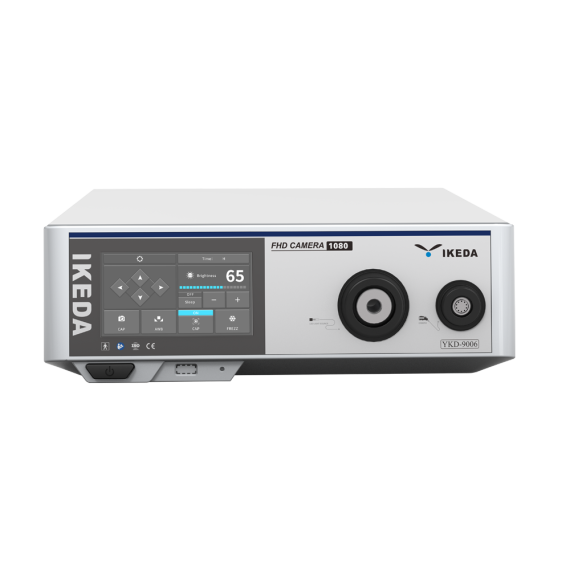

YKD-9006 Endoscopy Camera
- FULL HD Image Sensor
- FHD camera head and LED cold light source integrated
- Built-in USB FULL HD image storage, Integrated photo/video recording system
- Touch button, easy to clean

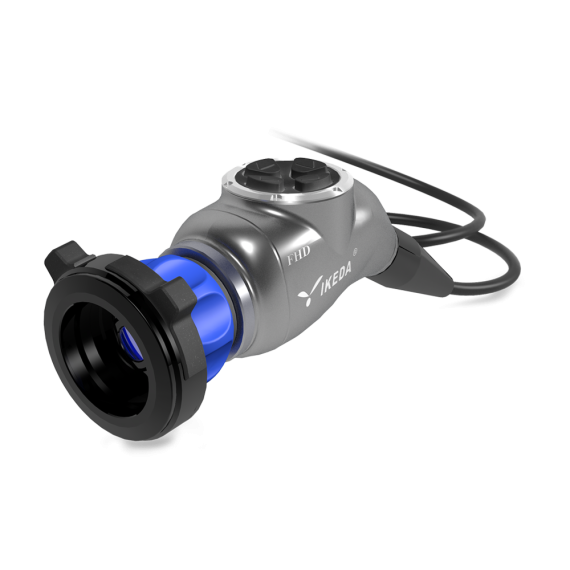

FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Medical Monitor
- 3840×2160 ultra-high-definition image output, showing richer textures and more accurate tissue identification
- 3840×2160 pixel image output, showing richer texture, more accurate tissue identification
- Wider color gamut truly restores the color of organs and tissues, and locates blood vessels, lymph nodes, and nerves faster
- CE/ROHS/FCC certified
Specifications
| Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | · 50-60 Hz |
| Device protection | · 2x T3,15 A |
| Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen size | · 5 inch |
| Light source | · Built-in 80W LED cold light source |
| Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
| Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) | ·I |
| Safety Class | BF |
| Standard | IEC 60601-1-2 |
| Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
| Language | · Chinese/English/Japanese/Korean/Spanish/German/Russian |
