YKD-9007 Medical Endoscope Camera system
$0.00
Shipped From China
The YKD-9007 Full HD Endoscopy Video Processor System integrates camera, processor, and recorder into one compact unit. Featuring a Sony CMOS sensor, USB storage, and touchscreen control, it delivers reliable 1080p imaging for efficient and simplified endoscopic procedures.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The YKD-9007 Full HD Endoscopy Video Processor System is an all-in-one medical imaging solution combining a Full HD camera, video processor, and recording system in a single unit. Equipped with a 1/2.8-inch Sony CMOS sensor, it delivers sharp 1920×1080 images with accurate color reproduction. The system includes a touchscreen control panel for intuitive operation and built-in USB storage for capturing images and recording procedures. Designed for simplicity and efficiency, it enhances workflow in operating rooms and diagnostic environments.
Key Features
-
All-in-one system: camera + processor + recorder
-
1/2.8″ Sony CMOS sensor (2.1 MP)
-
Full HD resolution (1920 × 1080) at 60 fps
-
Built-in USB storage (32GB) for video and image recording
-
5-inch touchscreen control interface
-
IPX8 waterproof camera head
-
Progressive scanning for smooth imaging
-
Advanced image adjustments (brightness, contrast, gamma, sharpness)
-
Zoom, freeze, flip, and white balance functions
-
Multiple video outputs (HDMI, DVI, CVBS)

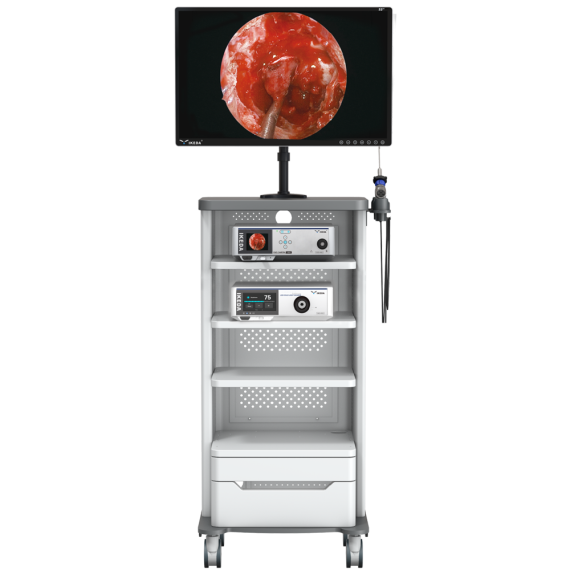

Medical Endoscope Camera system
- Camera Control Unit-YKD-9007
- LED Light Source -YKD-9021
- Camera Head -IPX8 waterproof grade
- 4K Monitor
- Medical trolley -YKD-2100

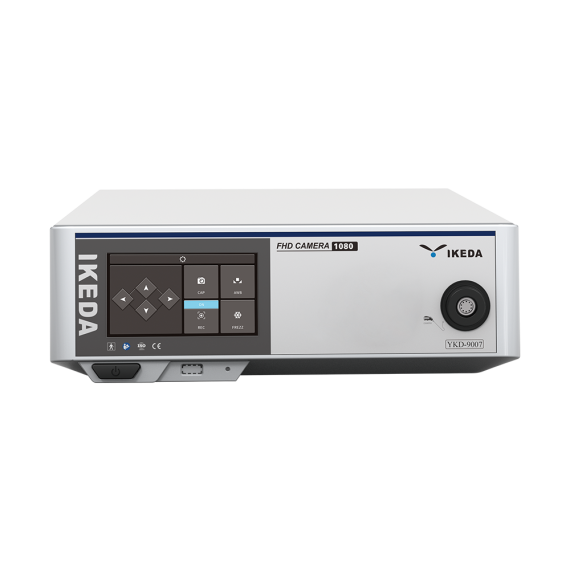

YKD-9007 Medical Endoscope Camera
- FULL HD Image Sensor
- Built-in USB FULL HD image storage, Integrated photo/video recording system
- Touch button, easy to clean
YKD-9021-LED Light Source
- Light output comparable to “300 W Xenon”
- Lifespan of the illuminant ＞30.000 h
- Low power consumption
- LCD display showing luminance level and status information
FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
4K Monitor
- 3840×2160 ultra-high-definition image output,showing richer textures and more accurate tissue identification
- 3840×2160 pixel image output, showing richer texture, more accurate tissue identification
- Wider color gamut, truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster
- CE/ROHS/FCC certified
Specifications
| Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | · 50-60 Hz |
| Device protection | · 2x T3,15 A |
| Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen size | · 5 inch |
| Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
| Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) | ·I |
| Safety Class | BF |
| Standard | IEC 60601-1-2 |
| Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
| Language | · Chinese/English/Japanese/Korean/Spanish/German/Russian |
