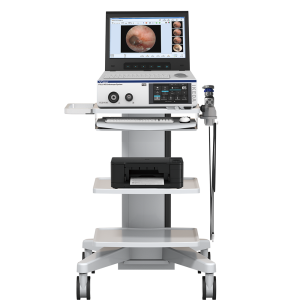

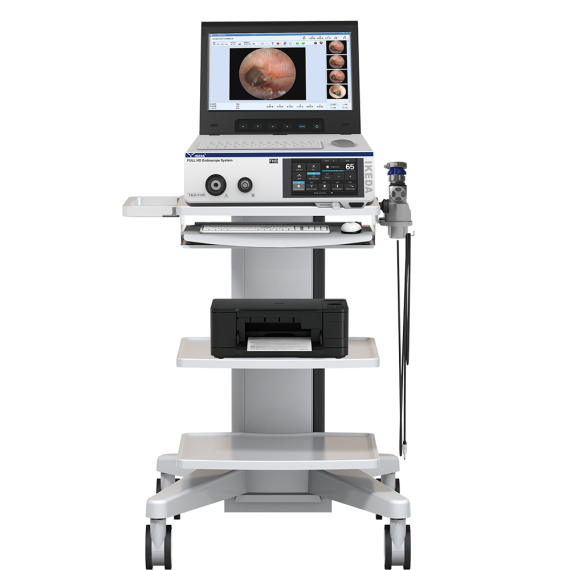

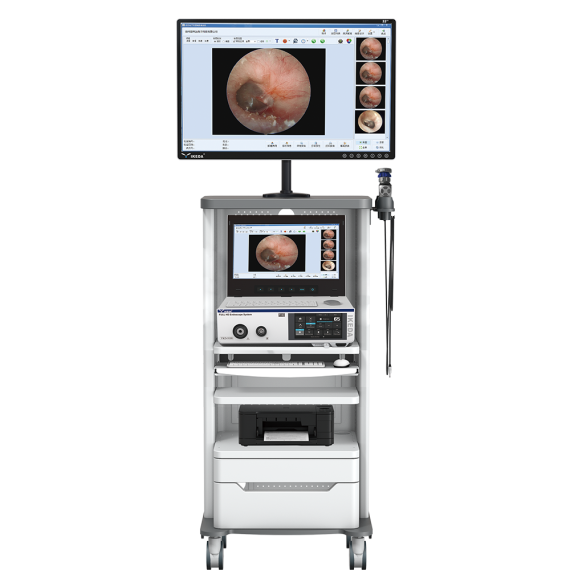

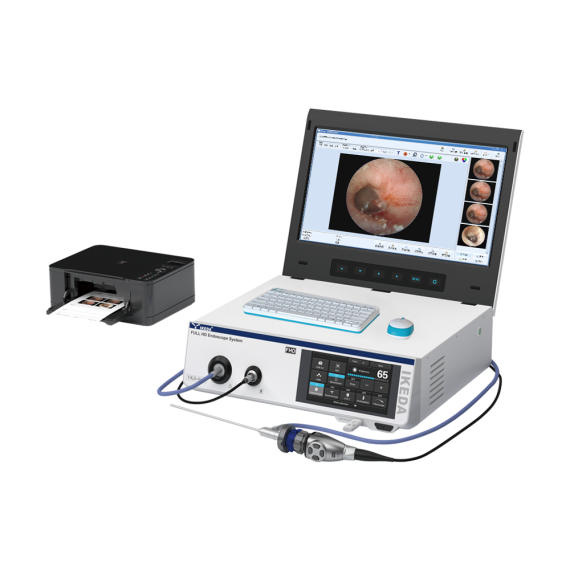

YKD-9100-H Portable Endoscopy Camera

The YKD-9100-H Full HD Endoscope Camera System is a portable, all-in-one imaging solution designed for diagnostic and surgical procedures. It features a 1/2.3-inch global shutter CMOS sensor that delivers clear 1920×1080 images with accurate color reproduction and minimal motion distortion. The system integrates a 19-inch monitor, LED cold light source, and high-definition imaging workstation into one unit for simplified operation. With built-in USB storage and multiple surgical modes, it enhances workflow efficiency in hospitals and clinics.

Key Features

• Global shutter Full HD CMOS image sensor (reduces motion blur)

• 1920 × 1080 Full HD resolution

• All-in-one system: camera + 19″ monitor + LED light source

• Built-in HD imaging workstation for exam/surgery modes

• Integrated USB storage for photo and video recording

• 11 selectable surgical modes with one-key switching

• Compatible with stroboscopic light source (ENT/laryngoscopy)

• IPX8 waterproof camera head

• Zoom, freeze, white balance, and image capture functions

• Multiple video outputs: HDMI, DVI, CVBS

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch

Click Here To Download Catalogue

Click Here To Download Catalogue

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform
