YKD-9101 Full HD Portable Endoscope Camera
$0.00
Shipped From China
The YKD-9101 Full HD Endoscope Camera System is a portable all-in-one unit with Sony CMOS imaging, built-in monitor, LED cold light source, and USB recording. It delivers clear 1080p visualization and an efficient workflow for endoscopic procedures in clinical settings.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

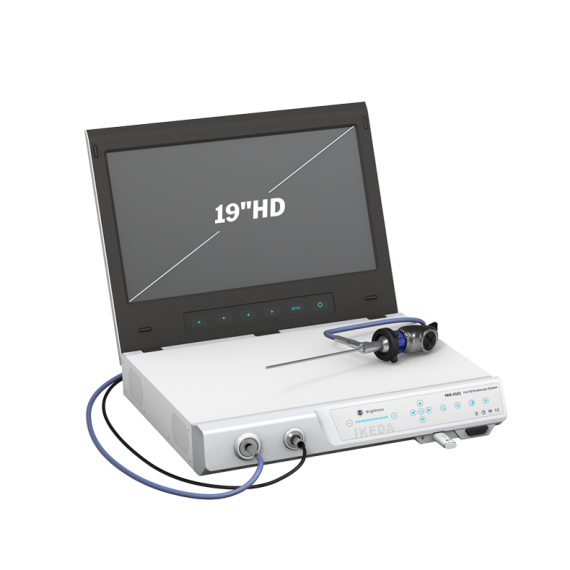

The YKD-9101 Full HD Endoscope Camera System is a compact and portable imaging solution designed for minimally invasive procedures. It integrates a high-definition camera, LED cold light source, video recorder, and display monitor into one unit, simplifying setup and operation. Featuring a 1/2.3-inch Sony CMOS sensor, it produces sharp 1920×1080 images with accurate color reproduction. Built-in USB storage allows real-time photo and video recording, while its lightweight, portable design makes it suitable for hospitals, clinics, and mobile medical applications.
Key Features
-
All-in-one portable system (camera + monitor + light + recorder)
-
1/2.3″ Sony CMOS Full HD image sensor
-
1920 × 1080 Full HD resolution at 60 fps
-
Built-in 19-inch medical display
-
Integrated LED cold light source (≈80W)
-
Built-in USB storage for image and video recording
-
IPX8 waterproof camera head
-
Progressive scanning for smooth imaging
-
Multiple video outputs (HDMI, DVI, CVBS)
-
Multiple surgical modes + customizable settings
YKD-9101 Full HD Portable Endoscope Camera
- FULL HD Image Sensor
- 19-inch FHD monitor, FHD camera head, and LED cold light source integrated;
- Built-in USB FULL HD image storage, Integrated photo/video recording system;

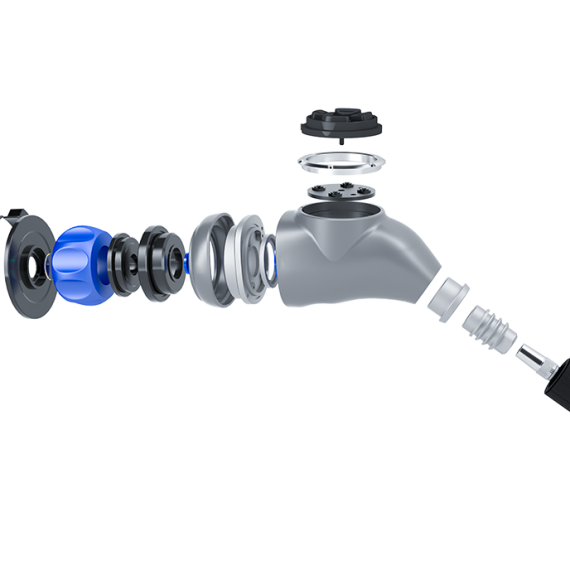

FHD Camera
- IPX8 waterproof cameras
- User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Sony CMOS
- Better Dynamic Range: with almost +17dB difference due to pixel well depth.
- Higher Quantum Efficiency (QE) and Lower Dark Noise contribute to better image fidelity.
- Higher Frame Rate: CMOS sensors have better shutter speeds, resulting in less image blur.
- Affordability: Despite their high performance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
Specifications
| Camera head | · Full HD imaging (1920 x 1080) |
| · 1/2.8″ SONY CMOS | |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | · 50-60 Hz |
| Device protection | · 2x T3,15 A |
| Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen Size | · 19 Inch |
| Light Source | · Built-in 80W LED cold light source |
| Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| MPEG-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
| Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) | ·I |
| Safety Class | BF |
| Standard | IBC 60601-1-2 |
| Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons/Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
| Language | · Chinese/English/Japanese/Korean/Russian/Spanish |
