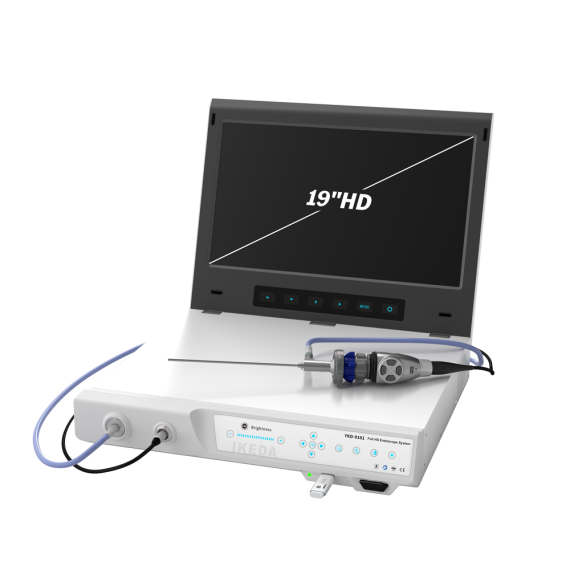

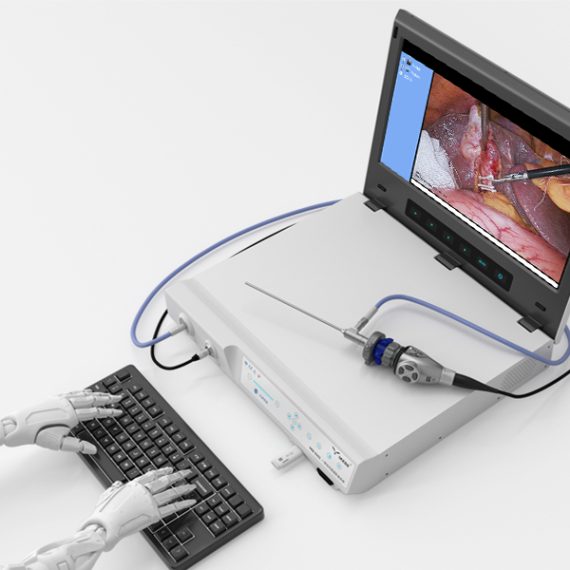

YKD-9101-H FULL HD Endoscope System

The YKD-9101-H Full HD Endoscope Camera System is a portable, integrated imaging solution designed for surgical and diagnostic procedures. It features a 1/2.3-inch global shutter Sony CMOS sensor that produces clear 1920×1080 images with reduced motion blur and high stability. The system combines a 19-inch monitor, LED cold light source, and an imaging workstation into one compact unit. With built-in USB storage, 11 surgical modes, and stroboscopy compatibility, it ensures efficient workflow and reliable performance in hospitals and clinics.

Key Features

• 1/2.3″ Sony CMOS global shutter Full HD sensor (reduced motion distortion)

• 1920 × 1080 Full HD imaging resolution

• All-in-one system: camera + 19″ monitor + LED light source

• Built-in HD imaging workstation (exam/surgery modes)

• Integrated USB storage for photo and video recording

• 11 selectable surgical modes with one-key switching

• Compatible with stroboscopic light source (ENT/laryngoscopy)

• IPX8 waterproof camera head

• Zoom, freeze, white balance, and image capture functions

• Multiple outputs: HDMI, DVI, CVBS

• Borosilicate glass measuring cylinder set with brush, including 500ml Borosilicate Glass Measuring Cylinder
• Heavy duty round glass (with good Ablesbaren measurments (clear scale and precise calibration – Orange graduation with main point ring increments
• Food-safe and alcohol resistant, sturdy borosilicate glass – Easy to clean, dishwasher-safe
• Width rim and a tapered pour spout for easy filling and pouring
• High-quality labor from sturdy heat acid and alcohol resistant borosilicate glass.Wrapped von powerful bladder to protect Package

Click Here To Download Catalogue

• Observation mode: Brightfield.
• Head: Binocular, 30° inclined; 360° rotating.
• Dioptric adjustment: Left eyepiece.
• Eyepiece: WF10x/18 mm, secured by screw
• Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
• Objectives: – Achromatic 4x/0.10, with anti-fungus treatment – Achromatic 10x/0.25, with anti-fungus treatment – Achromatic 40x/0.65, with anti-fungus treatment – Achromatic 100x/1.25 (oil), with anti-fungus treatment
• Specimen stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
• Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
• Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
• Illumination: 1 W LED, with brightness control, rechargeable batteries.
• Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.

• Sturdy high-impact plastic rack will hold from 6 to 31 test tubes up to 25mm in a diameter
• Easy to assemble
• Chemical resistant

• Observation mode: Brightfield.
• Head: Binocular, 30° inclined; 360° rotating. With integrated 3.1 MP camera.
• Eyepieces: WF10x/18 mm, secured by screw.
• Nosepiece: Quadruple ball bearings revolving nosepiece.
• Objectives: – N-PLAN 4x/0.10 , with anti-fungus treatment – N-PLAN 10x/0.25 , with anti-fungus treatment – N-PLAN 40x/0.65 , with anti-fungus treatment – N-PLAN 100x/1.25 (Oil/Water) , with anti-fungus treatment
• Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
• Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
• Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
• Illumination: X-LED¹ with white 1 W LED and light intensity control.
• Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.
