YKD-9103 Medical Endoscope Camera
$0.00
Shipped From China
The YKD-9103 Full HD Endoscope Camera System delivers sharp 1080p imaging with a Sony CMOS sensor, USB recording, and an IPX8 waterproof camera head. Designed for endoscopic procedures, it ensures accurate visualization, real-time documentation, and reliable performance in clinical environments.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The YKD-9103 Full HD Endoscope Camera System is a professional medical imaging solution designed for minimally invasive procedures. It features a 1/2.8-inch Sony CMOS sensor that delivers clear 1920×1080 resolution with accurate color reproduction. The system includes built-in USB storage for capturing images and recording videos during procedures. With an IPX8 waterproof camera head, progressive scanning, and multiple video output options, it ensures reliable performance and compatibility with a wide range of endoscopic applications in hospitals and surgical centers.
Key Features
-
1/2.8″ Sony CMOS Full HD image sensor
-
1920 × 1080 Full HD resolution
-
Built-in USB storage for photo and video recording
-
IPX8 waterproof camera head for surgical safety
-
Progressive scanning for smooth real-time imaging
-
Automatic white balance for accurate color reproduction
-
Zoom, freeze, and image capture functions
-
Touch-button control interface
-
Multiple outputs: HDMI, DVI, CVBS
-
Compatible with rigid and flexible endoscopes

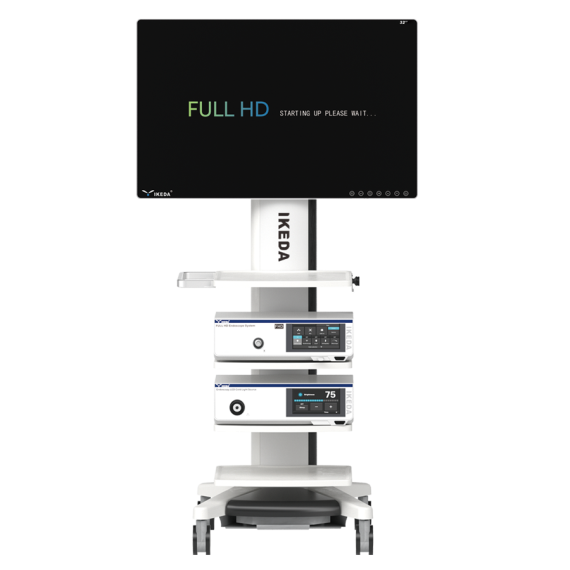

Medical Endoscope Camera System

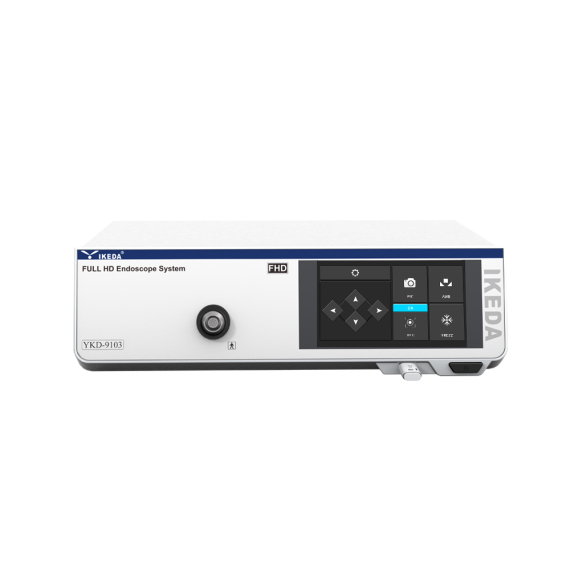

- Camera Control Unit-YKD-9103
- LED Light Source -YKD-9107-T
- Camera Head -IPX8 waterproof grade
- 4K Monitor
- Medical trolley -YKD-2100
YKD-9103 Medical Endoscope Camera
- FULL HD Image Sensor
- Built-in USB FULL HD image storage, Integrated photo/video recording system
YKD-9107-T-LED Light Source
- Light output comparable to “300 W Xenon.”
- Lifespan of the illuminant ＞30.000 h
- Low power consumption
- LCD display showing luminance level and status information

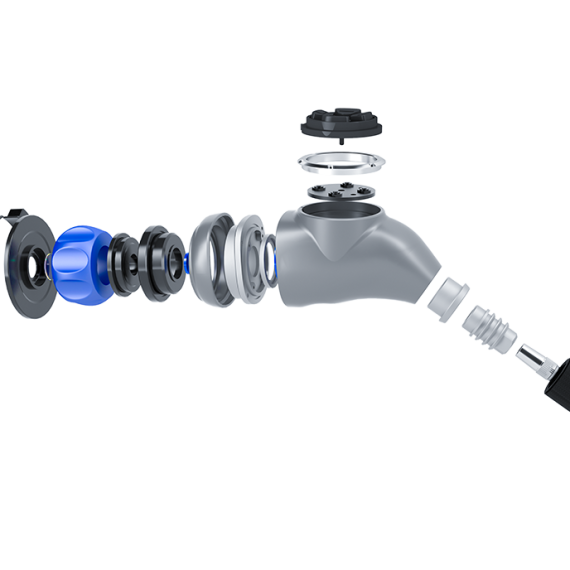

FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
4K Monitor
- 3840×2160 ultra-high-definition image output, showing richer textures and more accurate tissue identification
- 3840×2160 pixel image output, showing richer texture, more accurate tissue identification
- Wider color gamut truly restores the color of organs and tissues, and locates blood vessels, lymph nodes, and nerves faster
- CE/ROHS/FCC certified
Specifications
| Camera head | · Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | · 50-60 Hz |
| Device protection | · 2x T3,15 A |
| Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| MPEG-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
| Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) | ·I |
| Safety Class | BF |
| Standard | IEC 60601-1-2 |
| Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
| Language | · Chinese/English/Japanese/Korean/Russian/Spanish |
