YKD-9103G FULL HD 1080P Endoscope Camera system

Brands: Ikeda

~~$0.00~~

Shipped From China

The YKD-9103E Full HD Endoscope Camera System provides high-definition surgical imaging with a Sony CMOS sensor, USB recording, and a waterproof camera head. Designed for endoscopic procedures, it delivers clear visualization, accurate color reproduction, and reliable performance in clinical environments.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Ikeda

Description
Reviews (0)

Description

The YKD-9103E Full HD Endoscope Camera System is a professional medical imaging solution developed for precise visualization during endoscopic procedures. Equipped with a 1/2.8-inch Sony CMOS sensor, it produces clear Full HD images with excellent color accuracy and high dynamic range. The system supports USB photo and video recording for documentation and review. With an IPX8 waterproof camera head, progressive scanning, and multiple video outputs, it ensures dependable performance and compatibility with various endoscopes used in hospitals and surgical centers.

Key Features

1/2.8″ Sony CMOS Full HD image sensor
Full HD resolution (1920 × 1080) imaging
Built-in USB storage for photos and videos
High frame rate up to 60 fps
IPX8 waterproof camera head
Progressive scanning technology
Automatic white balance for accurate color reproduction
Freeze, zoom-in, and zoom-out functions
Touch-button control interface
Compatible with multiple rigid and flexible endoscopes

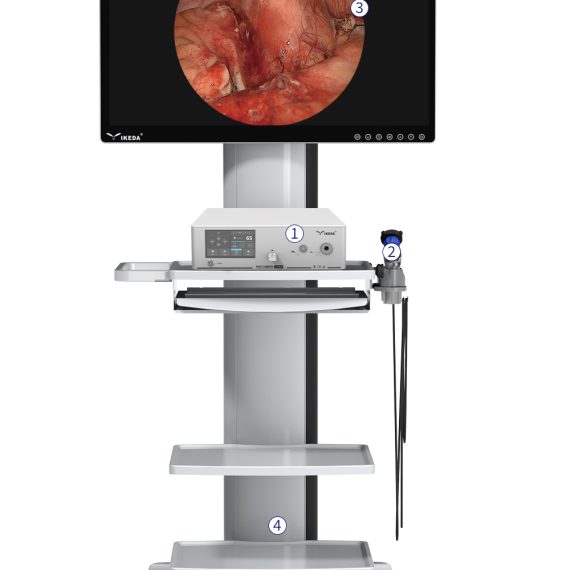

1080P Endoscope Camera System

Camera Control Unit-YKD-9103E
LED Light Source -YKD-9107E
Camera Head -IPX8 waterproof grade
4K Monitor
Medical trolley -YKD-2100

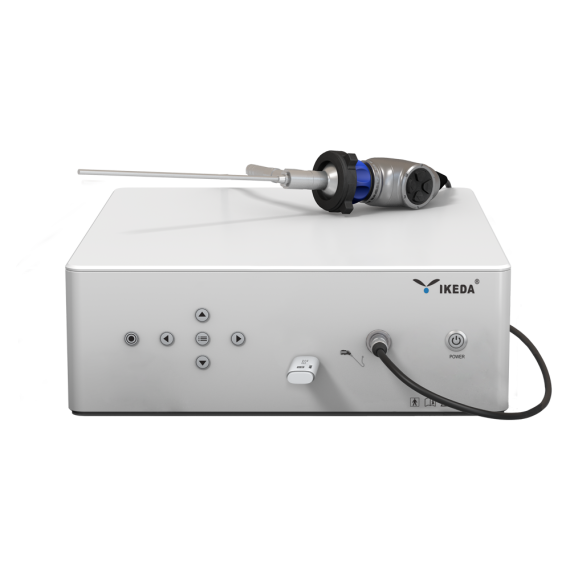

YKD-9103G 1080P Endoscope Camera

FULL HD Image Sensor
Built-in USB FULL HD image storage, Integrated photo/video recording system

YKD-9107E-LED Light Source

Built-in LED cold light source, 20 levels adjustable
With memory function, the service life is more than 50,000 hours
One-click sleep

FHD Camera

FHD IPX-8 waterproof grade
User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

4K Monitor

3840×2160 ultra-high-definition image output, showing richer textures and more accurate tissue identification
3840×2160 pixel image output, showing richer texture, more accurate tissue identification
Wider color gamut truly restores the color of organs and tissues, and locates blood vessels, lymph nodes, and nerves faster
CE/ROHS/FCC certified

Sony CMOS

Better Dynamic Range: with almost +17dB difference due to pixel well depth.
Higher Quantum Efficiency (QE) and Lower Dark Noise contribute to better image fidelity.
Higher Frame Rate: CMOS sensors have better shutter speeds resulting in less image blur.
Affordability: Despite their high performance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.

Specifications

Camera head	· Full HD imaging (1920 x 1080)
	· 1/2.8″ SONY CMOS
	· IPX8 waterproof
	· Full HD optical coupler C-mount standard
Voltage range (current consumption)	·100-240 V(50 VA)
Frequency	· 50-60 Hz
Device protection	· 2x T3,15 A
Video system	· Image resolution: FHD 1920 x 1080
	· Horizontal resolution: ≥1200 TVL
	· SNR: 60DB,Tolerance 20%
	· Scanning system: Progressive Scanning
	· White balance automatically
Recording (Options)	· Image format: JPG 1920 x 1080
	· Video format: Full HD 1920 x 1080;
	MPEG-4 (H.264 Codec); Image rate 60fps
	· Connection: USB
Connections	Video out terminal:
	· 1x DVI
	· 1x HDMI
	· 1x CVBS
Protection class (acc.to IEC 60601-1)	·I
Safety Class	BF
Standard	IEC 60601-1-2
Features	· White balance
	· Freeze function
	· Zoom in/Zoom out
	· Touch Buttons
	· USB storage
	· Photo capture/Video recording
Language	· Chinese/English/Japanese/Korean/Spanish/German/Russian
