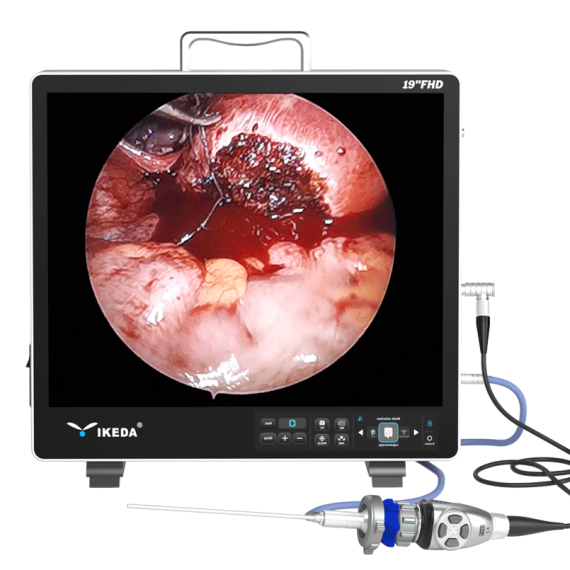

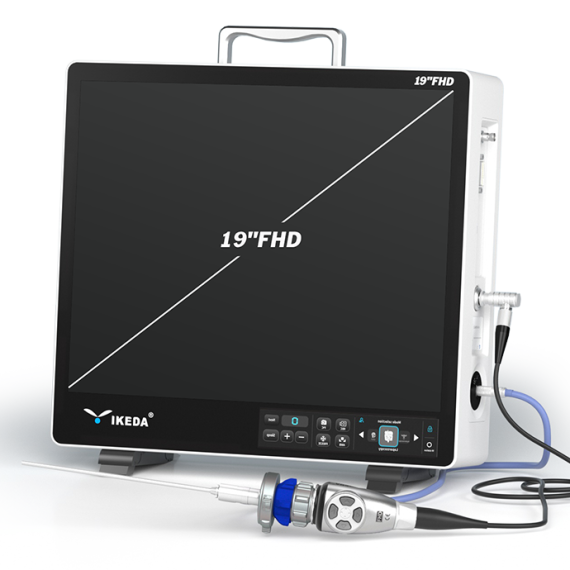

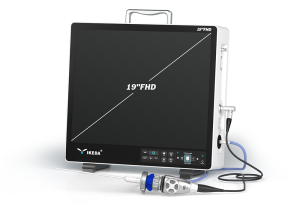

YKD-9119-H Portable Endoscope Camera System
$0.00
Shipped From China
The YKD-9119-H Full HD Portable Endoscope Camera System features a global shutter CMOS sensor, 19-inch monitor, LED cold light source, and USB recording, delivering stable 1080p imaging with high clarity for precise, minimally invasive procedures.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The YKD-9119-H Full HD Endoscope Camera System is a high-performance portable imaging solution designed for surgical and diagnostic procedures. It features a global shutter CMOS sensor that delivers sharp 1920×1080 images with minimal motion distortion and excellent color accuracy. The system integrates a 19-inch surgical monitor, LED cold light source, and camera control unit into a compact all-in-one design. With built-in USB recording, stroboscopy compatibility, and real-time image processing, it ensures reliable performance in operating rooms and clinical environments.
Key Features
-
Global shutter CMOS Full HD image sensor (no motion distortion)
-
1920 × 1080 Full HD resolution at up to 60 fps
-
Integrated 19-inch surgical display
-
Built-in LED cold light source (~80W)
-
All-in-one system (camera + monitor + light source)
-
USB storage for photo capture and video recording
-
11 surgical scene modes with one-key switching
-
IPX8 waterproof camera head
-
Touch control interface with zoom, freeze, and white balance
-
Multiple outputs: HDMI, DVI, CVBS
Portable Endoscope Camera
• Global Shutter CMOS FULL HD Image Sensor
• Can be matched with a stroboscopic light source for stroboscopic laryngoscopy
• FHD camera head and LED cold light source integrated
• Built-in USB FULL HD image storage, Integrated photo/video recording system
• Universal C-mount threading
• Capture high-definition wide-area images
• Achieve both high-speed signal processing and low noise
• Capable of photographing moving objects without distortion
FHD Camera
• FHD IPX-8 waterproof grade
• User-Definable: Photo Capture/Video Recording/
• Zoom in/Zoom Out/White Balance
Specifications
| Camera head | Full HD imaging(1920×1080) IPX8 waterproof, Full HD optical Coupler C-mount standard. |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | 50-60Hz |
| Device protection | 2xT3,15 A |
| Video system | Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL
SNR:60DB,Tolerance20% |
| Screen Size | 19″ |
| Light Source | In-Built 100W |
| Recording (Options) | Image format:JPG 1920×1080, Mpeg-4 (H.264 Codec): Image rate 60fps Connection:USB |
| Connections | Video Out Terminal, 1 DVI. 1HDM, 1*CVBS |
| Protection Class | ·I |
| Safety Class | BF |
| Standard | IBC 60601-1-2 |
| Features | Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording/TELE |
| Language | Chinese/English/Japanese/Russian/Korean/Spanish |
