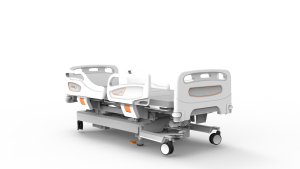

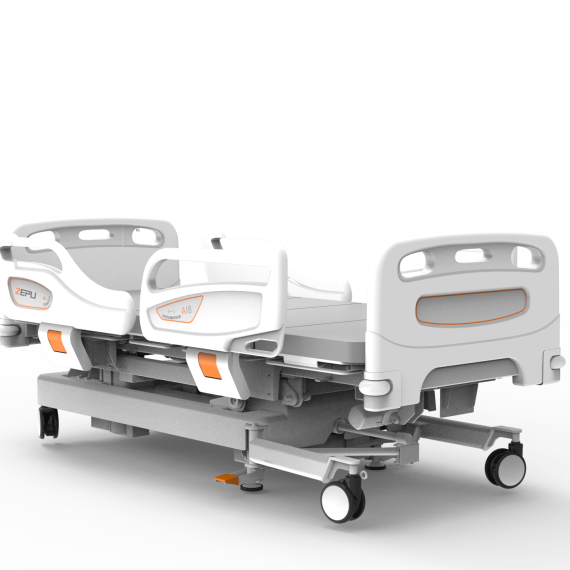

ZEPU-AI8 ELECTRIC REHABILITATION TRAINING BED

ZEPU-AI8 Electric Rehabilitation Training Bed is a multifunctional medical device combining hospital bed functionality with advanced rehabilitation support. It features adjustable height and multi-angle positioning for back, thigh, and calf sections, enabling progressive therapy from lying to standing. The system helps patients improve balance, circulation, and muscle function while supporting early rehabilitation training. Designed for hospitals and physiotherapy centers, it enhances patient safety, comfort, and recovery efficiency through controlled positioning and stable support systems for long-term and post-surgical care.

In addition to the basic hospital bed functions, the electric rehabilitation training bed has a bed angle adjustment function to help patients adapt to their body positions and lay a good foundation for independent standing and balance maintenance in the future. The bed height can be adjusted through a stable lifting device to facilitate patient transfer. The stable standing device allows the bed angle to be adjusted to any position and fixed. The angles of the back bed board, thigh bed board, and calf bed board are electrically adjustable, which is convenient for patients to conduct rehabilitation training in various parts of the body. The head and foot frames of the bed are detachable to facilitate patient activities. The adjustable bed surface consists of a back board, a seat board, a thigh board, and a calf board. The height and angle of each bed surface can be adjusted independently through an electric control device. The training bed itself and the patient on the bed are supported by a mechanical support system, which simplifies the adjustment of the bed height and the different angles of each section of the bed surface. The training position can be fully adjusted to assist users in training in various postures.

Features:

• Functional rehabilitation bed:
  A training bed with multiple training methods, such as standing up, relaxation, passive training, back lifting, leg flexion, etc.
• One-button execution function
  The device can perform standing up, returning to the original position, CPR position, movie watching position, and reading position with one button, and the operation is simple
• Passive training and relaxation mode
  Add passive flexion and extension training of the lower limbs and a relaxation mode that can tilt the bed forward and backward, and left and right, to help patients adapt to the position and reduce bedridden complications
• Customized training
  Standing up training can be customized, and the training content can be refined in advance according to the patient's condition
• Various control methods
  The device can be controlled by the bedside hand controller and console, or by software
• Patient management
  Patient information is saved to facilitate patient management and training record query
• Safe training
  Add a one-button lock function to avoid accidental touch during training, and the emergency stop button further ensures patient safety

Clinical Treatment Effect:

• Prevent postural hypotension and improve cardiovascular health
• Restore and enhance lower limb muscle strength
• Overcome the consequences of lack of exercise, such as blood circulation problems, joint stiffness, muscle contracture, digestive problems, defecation problems, osteoporosis, lower limb edema, etc., prevent bedsores and venous thrombosis, and promote smooth urination and defecation
• Enhance patient confidence and independence, and improve their self-confidence and quality of life by helping patients regain the ability to stand
• Replace manual labor, save time and cost'

Specifications

• Bed standing angle range: 0° ~ 85°
• Adjustable back bed board angle: 0° ~ 70°
• Adjustable thigh bed board angle: 0° ~ 30°
• Bed lifting range: 450 ~ 800 mm
• Bed left/right tilt angle: 0 ~ 20°
• Bed forward/backward tilt angle: 0 ~ 12°
• Time setting: 0 ~ 20 min

Scope of Application:

• Rehabilitation of lower limb function for neurological diseases: spinal cord injury, stroke, brain trauma
• Pain relief and improvement of movement disorders for bone and joint diseases: osteoarthritis, rheumatoid arthritis, after joint replacement surgery
• Motor rehabilitation for the elderly or long-term bedridden people

Technical Details

Technical Details

This multi function obstetric table is designed and manufactured to meet the need of the medical enterprise. It is used for childbirth, gynecology surgical operation, examining and many other functions, including cesarean operation. The planks, basins and all outer shells are made of stainless steel, which makes nice appearance and easy cleaning and sterilizing.

Technical Specifications:

• Table top dimension: length 1900mm, width 610mm
• Min.& Max. table height: 660mm~910mm
• Trendelenburg & reverse trendelenburg: reverse trend ≥ 10°, trend ≥15°
• Back section turning: -10°~75°
• Assist platform dimension: length 550mm, width 550mm
• Arm rest swing out: ≥ 90°
• Filth basin dimension:468×338×125mm(can be equipped with soft pipe)
• Power: AC 220V 50HZ

• Waterproof cushion - 1 set
• Waist grab handle - 1 pair
• Leg holder - 1 pair
• Filth basin - 1 piece
• Arm rest - 1 pair
• Foot switch - 1 piece
• Clamp - 1 pair
