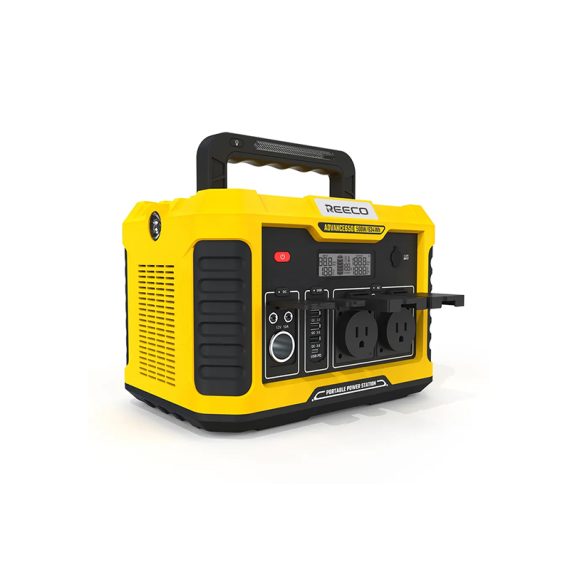

Portable Power Station Advance Series 300W-1000W

Brands: Reeco Power

$0.00

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130139-21
Brands:: Reeco Power

Description

Features:

One of the most popular rechargeable battery generators in the market. It comes with AC outlets,DC car port,three Quick Charge USB ports,one Type-C port and built-in fast charging wireless charger.

Applications:
  • Mammogram
  • Ultrasound Equipments
  • Radiology rooms



Technical Specifications
Model ADVANCE 300W ADVANCE 500W ADVANCE 1000W ADVANCE 1500W
Power 300W Rated Power
600W Peak Power		 500W Rated Power
1000W Peak Power		 1000W Rated Power
2000W Peak Power		 1500W Rated Power
3000W Peak Power
Input DC, 7909,12-28V DC, 7909,12-28V DC, 7909,12-28V DC, 8020,12-60V
PV(Anderson)  12-60V
Battery Type 18650 Lithium-ion Battery 2.6Ah 18650 Lithium-ion Battery 3.0Ah 18650 Lithium-ion Battery 3.0Ah 18650 Lithium-ion Battery 2.6Ah
Capacity silk-screen 231Wh(22.2V 10.4Ah) 400Wh(22.2V 18Ah) 933Wh(22.2V 42Ah) 1328Wh (22.2V 59.8Ah)
single cell Volts(V) 3.7V 3.7V 3.7V 3.7V
Capacity(Ah) 2.6Ah 3.0Ah 3.0Ah 2.6Ah
Cascade No. 6 6 6 6
Parallel No. 4 6 14 23
Input
Watts		 Wall Charger 48W 100W 150W 240W
Solar Panel 80W 100W 120W 600W
Car Port 55W 60W 60W 60W
Recharge
Time		 Wall Charger 4.8h 4.0h 6.2h 5.5h
Solar Panel 2.9h 4.0h 7.8h 2.2h
Car Port 4.2h 6.7h 15.5h 22.1h
AC Outlet Germany 1x ，   230V, 50Hz((with cover) 1x ，   230V, 50Hz((with cover) 2x ，230V ，   50Hz(with cover) 3x ，230V ，   50Hz
DC Output 1XCigarette lighter port ，
12V 10A		 1XCigarette lighter port ，
12V 10A		 1XCigarette lighter port ，
12V 10A		 2x 5525 ,1XCigarette lighter port，
Parallel output 12V 10A
1×7406 24V 5A
USB Output 2*USB-A QC 3.0 18W each,36W Max
1*USB-C  PD3.0 60W Max		 3*USB-A QC 3.0 18W each,54W Max
1*USB-C  PD3.0 60W Max		 3*USB-A QC 3.0 18W each,54W Max
1*USB-C  PD3.0 60W Max		 2*USB-A QC 3.0 18W each,36W Max
2*USB-C  PD3.0 120W Max

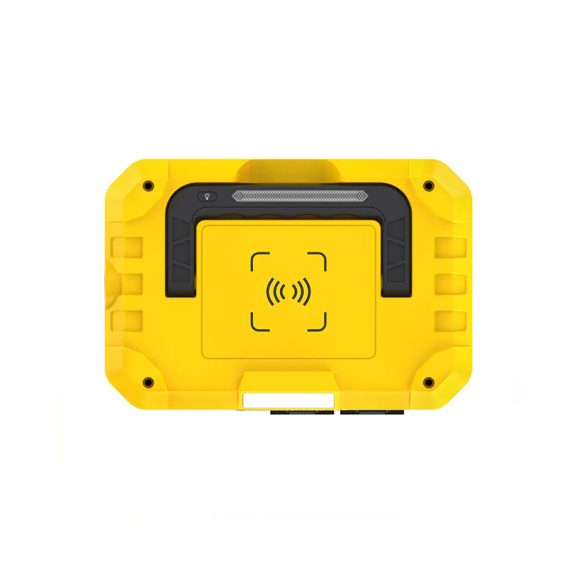

Wireless Charger / 1x, 10W 1x, 10W 1x, 10W
LED light / 1x 1W 1x 1W 1x 1W
Flashlight 1x 1W 1x 1W 1x 1W /
LCD Display Yes Yes Yes Yes
Charging Temp 0~40℃ 0~40℃ 0~40℃ 0~40℃
Operating Temp ﹣ 10~40℃ ﹣ 10~40℃ ﹣ 10~40℃ ﹣ 10~40℃
Accesssories 48W  Adapter x83cm，
AC Cable x48cm,
Car charger cable x131cm，
Instruction manual		 100W  Adapter x81cm，
AC Cable x48cm,
Car charger cable x131cm，
Instruction manual		 150W  Adapter x81cm，
AC Cable x121cm,
Car charger cable x131cm，
Instruction manual.		 240W  Adapter x150cm，
AC Cable x121cm,
Car charger cable x131cm，
Instruction manual.
Products Size(mm) 192*142*148mm 230*168*178mm 290*201*200mm 350*265*240mm
Package N.W 2.76kg 4.42kg 8.55kg 14.1kg
Box Size 238*218*190mm 276*241*227mm 371*254*262mm 455*355*345mm
G.W 3.7kg 5.14kg 9.74kg 15.96kg
Carton Size 504*460*233mm 525*301*267mm 555*406*316mm 471*377*375mm
Carton/pcs 4pcs 2pcs 2pc 1pc
G.W 16.06kg 11.8kg 20.37kg 17.9kg
Loading Quantity
(20GP/40GP/40HQ)		 1740 / 3880 / 4800 1160 /2580 / 3200 690 1530 /1900 368/ 818 /1015
