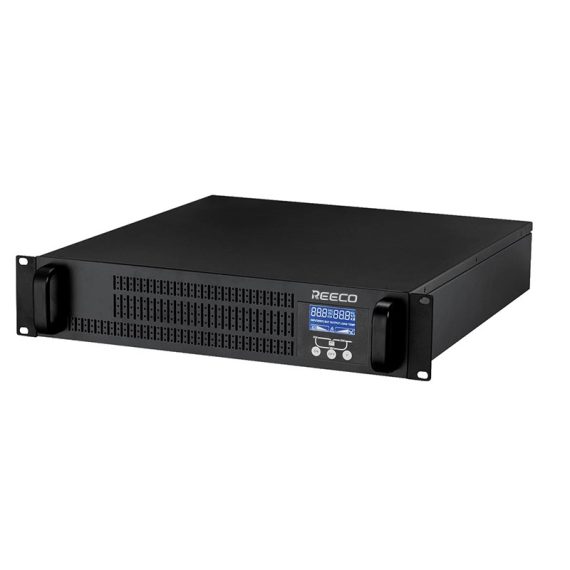

1)Adopts compact frame structure design.
2)Pure Sine wave output no matter in AC mode or battery mode can provide sine wave power source with low distortion.
3)Zero Transfer time: when the utility power is cut off or recover, there is absolutely no time between the transfer of AC mode and battery mode.
4)Detect function for the nneutral wire and wire wire are wrongly connected.
5)Avoids wrong connection of neutral wire and live wire of UPS AC power input.
6)Voltage breakthrough protection and strong anti-interference function.
7)Input power factor correction: UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95.
Applications:
Mammogram
Ultrasound Equipments
Radiology rooms
Technical Specifications
Model
RT 1K
RT 1KL
RT 2K
RT 2KL
RT 3K
RT 3KL
RT 6KL
RT 10KL
Input
Rated capacity
1KVA/900W
2KVA/1800W
3KVA/2700W
6KVA/5.4KW
10KVA/9KW
Voltage
90 ± 5-300 ± 5VAC
120〜274Vac
Frequency
40 〜60Hz
Power factor
0.99
Output
Voltage
220Vac (1 ± 2%)
220Vac (1 ±1%)
Current
4.55A
9.1A
13.6A
27.3A
45A
Frequency
(50 ± 2)Hz
(50±1)Hz
Power factor
0.9
Waveform
Pure Sine wave
Waveform distortion
Linear ≤7% when RCD 100% loading(Non-line)
Linear ≤3% when R 100% loading(line)
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad

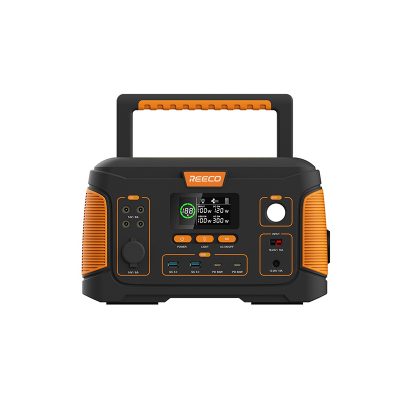

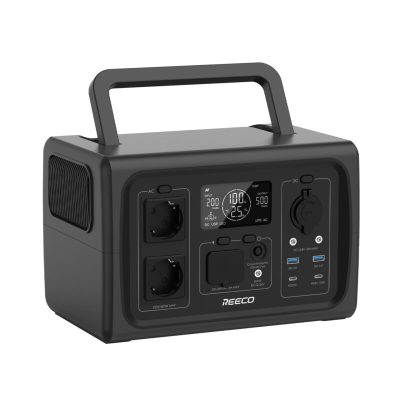

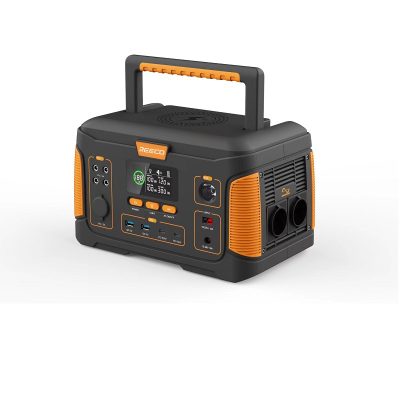

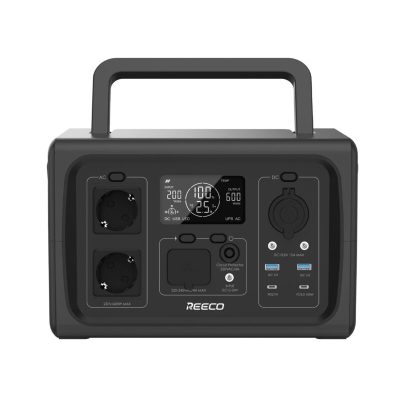

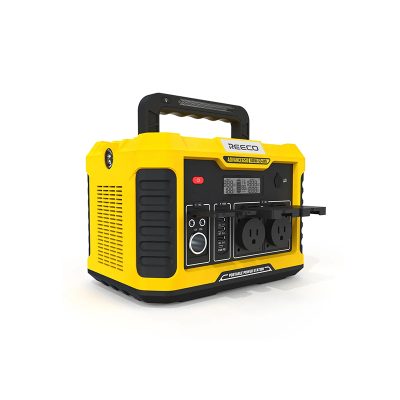

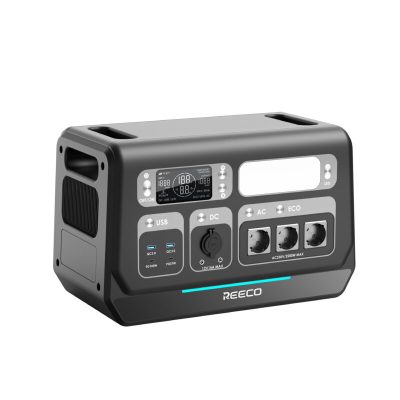

Features:
Compact Size with nice housing case design. Stable performance with strong compatibility.
Built-in adapter, wide input, voltage range (100-240VAC).
Built-in multiple DC voltage (5/9/12/24/48VDC)output interfaces which can be used with external power adapters or solar panel.

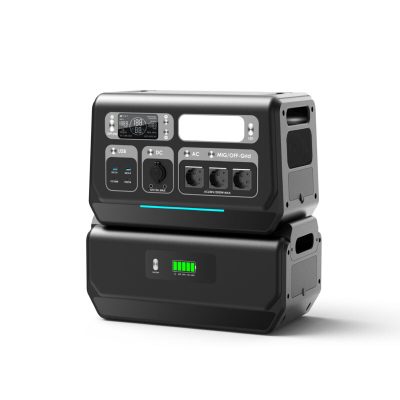

Built-in large capacity lithium-ion batteries which is expanded up to 165Wh for long backup time.
100W has 19VDC output, it can be used for desktop computer / laptop computer.
60W/100W with WIFI function, it can be connected to the upper computer control. ( wall mounted type and tower type design).
Customize various of plugs and DC interfaces.
LCD indicator display design for monitor the working status easier.
Built-in multiple protection circuits, intelligently realize overcharge, over discharge, over current, overload, over temperature and short circuit protection
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Features:
True Double conversion Technology
DSP digital control technology enable UPS more stable performance.
Three-level inverter technology
Active High input power factor correction technology (PFC)
Wide Input Voltage Frequency Range& Strong load capacity
Zero power switch delay
Compatible with Generators
Wide input voltage and frequency range can effectively isolate the harmful waves into power by the generator and provide pure,safe and stable power supply.
Support intelligent monitoring
Fully support remote intelligent monitoring with flexibility in choice of USB cards . AS400 cards , SNMP cards , RS485 cards
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Content
`Features:
1)Adopts compact frame structure design.
2)Pure Sine wave output no matter in AC mode or battery mode can provide sine wave power source with low distortion.
3)Zero Transfer time: when the utility power is cut off or recover, there is absolutely no time between the transfer of AC mode and battery mode.
4)Detect function for the nneutral wire and wire wire are wrongly connected.
5)Avoids wrong connection of neutral wire and live wire of UPS AC power input.
6)Voltage breakthrough protection and strong anti-interference function.
7)Input power factor correction: UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95.
Applications:
Mammogram
Ultrasound Equipments
Radiology rooms
Technical Specifications
Model
RT 1K
RT 1KL
RT 2K
RT 2KL
RT 3K
RT 3KL
RT 6KL
RT 10KL
Input
Rated capacity
1KVA/900W
2KVA/1800W
3KVA/2700W
6KVA/5.4KW
10KVA/9KW
Voltage
90 ± 5-300 ± 5VAC
120〜274Vac
Frequency
40 〜60Hz
Power factor
0.99
Output
Voltage
220Vac (1 ± 2%)
220Vac (1 ±1%)
Current
4.55A
9.1A
13.6A
27.3A
45A
Frequency
(50 ± 2)Hz
(50±1)Hz
Power factor
0.9
Waveform
Pure Sine wave
Waveform distortion
Linear ≤7% when RCD 100% loading(Non-line)
Linear ≤3% when R 100% loading(line)
100%-125%, 1 minutes to transfer to bypass;
> 150%, 300ms to transfer to bypass
Transfer time
0ms

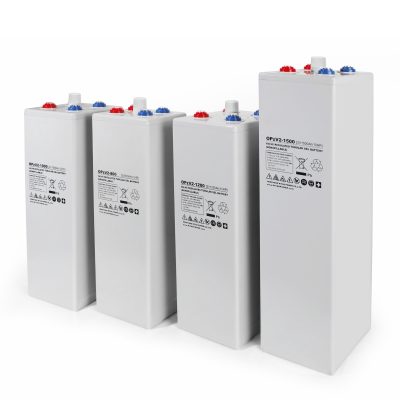

Type of battery
VRLA
External battery voltage
24VDC
36VDC
4x7Ah
72VDC
6x7Ah
96VDC
192VDC/240VDC
Working Environment
Temperatures
0 〜40°C
Humidity
0 〜90(%)
Altitude
<1500m
Communication
RS232
Size (WXDXH)mm
482x450x88
482x650x132
Weight (kg)
12.3
8
9.5
10
10
10.5
20
21.5
Features:
Compact Size with nice housing case design. Stable performance with strong compatibility.
Built-in adapter, wide input, voltage range (100-240VAC).
Built-in multiple DC voltage (5/9/12/24/48VDC)output interfaces which can be used with external power adapters or solar panel.
Built-in large capacity lithium-ion batteries which is expanded up to 165Wh for long backup time.
100W has 19VDC output, it can be used for desktop computer / laptop computer.
60W/100W with WIFI function, it can be connected to the upper computer control. ( wall mounted type and tower type design).
Customize various of plugs and DC interfaces.
LCD indicator display design for monitor the working status easier.
Built-in multiple protection circuits, intelligently realize overcharge, over discharge, over current, overload, over temperature and short circuit protection
HIGH INTELLIGENCE AND RELIABLE POWER SUPPLYIGBT Technology
Full microprocessor control with no-break static and manual bypasses.
Online double conversion technology (VFl) with isolation transformer on theinverter output.
Extremely high short-circuit current to ensure compatibility with the most diffificult transformer applications (lighting, drives and industrial processes) and an isolation transformer on the inverter output.
Compatibled with Watch & Save 3000 software as standard and can be remotely monitored using the Power NetGuard system from anywhere in the world.
SIMPLE TO INSTALL
Capability to install the UPS into any distribution system(neutral not required on rectifier input).
Capability to separate the rectifier/bypass power networks and to power them from two separate sources, without Galvanic isolation(Necessary on UPS without an output transformer
MAXIMUM BATTERY CARE
Battery deep discharge protection;
Temperature compensating charger;
Built-in automatic and manual battery test feature.
OTHER CHARACTERISTICS
0.8/0.9 power factor suitable for powering ICT and lndustrial loads.
BACK FEED protection: to avoid energy feeding back into the mains supply cause a fault occur.
MAXIMUM RELIABILITY AND AVAILABILITY
Connect up to 6 units in parallel or N+1 redundancy, even of different power ratings.
The UPS continue to work in parallel even if one of theinterconnecting communication cables is disconnected(CLOSED LOOP)
LOW CONSUMPTION LEVELS
LF31 Series UPS can achieve efficiencies >98% thanks to selectable Economy Mode which can be used in stable electrical environments to provide power supply continuity when the mains fail.
ADVANCE COMMUNICATION:
RS485/RS232/Dry Contact/SNMP(Optional)
Specifications
Model
10KVA
15KVA
20KVA
30KVA
40KVA
60KVA
80KVA
100KVA
Capacity
8KW
12 KW
16 KW
24 KW
32 KW
48 KW
64 KW
80 KW
INPUT
Rated voltage
380/400/415 VAC Three-phase
Voltage range
±20%
Frequency range
45-65Hz
Power factor
>0.92 with harmonic filter
Current harmonic distortion
<5% with harmonic filter
Soft Start
0 -100% in 10″
BYPASS INPUT
Rated voltage
230VAC Single Phase
Permitted voltage range
±15% (selectable from ±10% to ±25% from front panel)
DSP digital control technology enable UPS more stable performance.
Three-level inverter technology
Active High input power factor correction technology (PFC)
Wide Input Voltage Frequency Range& Strong load capacity
Zero power switch delay
Compatible with Generators
Wide input voltage and frequency range can effectively isolate the harmful waves into power by the generator and provide pure,safe and stable power supply.
Support intelligent monitoring
Fully support remote intelligent monitoring with flexibility in choice of USB cards . AS400 cards , SNMP cards , RS485 cards

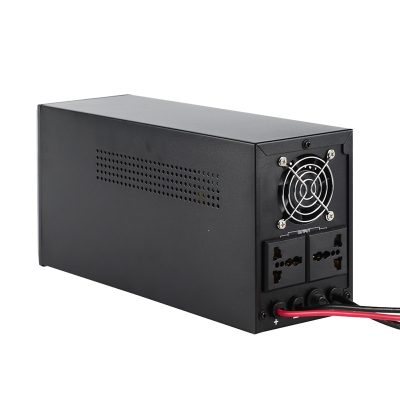

Applications:
Mammogram
Ultrasound Equipments
Radiology rooms
Technical Specifications
Model
VT1K
VT1KL
VT2K
VT2KL
VT3K
VT3KL
Rated power
1KVA/900KW
2KVA/1.8KW
3KVA/2.7KW
Input
Voltage range
90~285Vac L+N+G
Frequency range
40-70Hz(Adjustable)
Input power factor
>0.99
Output
Rated voltage and precision
220Vac (1±2% ) L+N+G
Output frequency
46-54Hz Synchronous mains power; 50Hz( Frequency Range 40-46Hz ~54-60Hz);50Hz(Battery mode)
Rated Current
4.5A
9.1A
13.6A
Output power factor
0.9
Output harmonic
≤4%
Crest factor
3:1
Inverter overload capacity
105%±5%< Load<125%±5% : 50s transfer to bypass
125% ±5% < Load<150 % ±5 % : 25s transfer to bypass
Load > 150 % ± 5 %: 300s transfer to bypass
Transfer time
0ms
Efficiency
≥85%
Battery
Rated voltage
24Vdc
36Vdc
48Vdc
72Vdc
72Vdc
96Vdc
Battery Numbers
2
3
4
6
6
8
Charge current
1A
6.5A
1A
5.5A
1A
5.5A
Size(LXWXH)mm
350*144*230
425*190*328
Net Weight(KG)
9.5kg
6kg
18.5kg
10kg
23.5kg
11kg
Operating temperature
0°C 〜40°C
Operating humidity
20% 〜95%
Noise
≤50dB
Features:
True double-conversion
LCD screen auto-rotation with Rack position ( only for 10K-20K models)
DSP technology guarantees high performance
Output power factor 1
Support 1/1;3/1;3/3 Phase Adjustable
Active power factor correction in all phases
50HZ / 60HZ frequency converter mode
ECO mode operation for energy saving ( ECO)
Emergency power off function ( EPO)
Generator compatible
Supports dual AC inputs
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers for long-run model
Supporting Parallel sharing of battery packs
Optional isolation transformer offers full isolation and complete common mode noise rejection
100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately Protection
Battery Mode
100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately Protection
EFFICIENCY
AC Mode
95.5%
ECO Mode
98.5%
Battery Mode
94.5%
BATTERY
Battery Type
Depending on the applications
Numbers
20 pcs
32-40 pcs (Adjustable)
Charging Current (max.)
1A~ 12A (Adjustable)
1A~ 16A (Adjustable)
1A 〜18A (Adjustable)
Charging Voltage
±13.65 VDCx N (N=10)
±13.65VxN (N=16〜20)
PHYSICAL
Dimension, D * W * H (mm)
680*438*133 [3U]
797*438*176 [4U]
Net Weight (kgs)
27
30
40
45
ENVIRONMENT
Operation Temperture
0-40°C
Operation Humidity
0-95% and non-condersing
Noise Level
Less than 62dB @ 1 Meter
Less than 65dB @ 1 Meter
Less than 70dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB
Supports Windows® Family, Linux and MAC
Optional SNMP
Power management from SNMP manager and web browser
Features:
Digital Control
All parts of this series of UPS adopt digital control, each performance index of UPS is very excellent, and the control system is morestableand reliable.Each module has built-in
automatic bypass switch and corresponding bypass current equalizing inductor, providing good bypass power supply equalization performance.
Intelligent Battery Management
Users can set the charging current, constant current, constant voltage and floatingcharging modescan be automatically and smoothly switched; Battery voltage can beset
±192Vdc/±240Vdc/±216Vdc/±228Vdc/±240Vdc (32/34/36/38/40 pcs optional)
High Power Density Modular Design
The capacity of each single module is30kVA, and the height is3U; UPS modulescan be added and removed onlineto achieve zero maintenance time.
N+x Parallel Redundancy
The quantity of redundant module can be set accordingly, When the redundant module reaches more than 2 hours, the system availability achieves 99.99%,
MTBF(Mean Time Between Failures) lasts more than 250,000 hours; Supporting parallel connection between cabinets.
A maximum of four cabinets can be parallel,and battery pack can be shared when UPS cabinet in parallel.
Touchable LCD Display Screen
Super large LCD display with touching function.
Standard Cabinet Design
The appearance ofthe standard cabinet is beautiful and generous, which can perfectly match the use environment ofthe computer room and save the space.
Safe and Easy to Maintain
When an emergency occurs, users can switch to the maintenance bypass to supply power, and maintenance personnel can safely perform online maintenance;
Press EPO button to shutdown in emergentsituation, and also have REPO function.
Intelligent Management
Centralized monitoring module (with hot-swap function), RS232/RS485 communication interface/SNMPcard (optional), can realize remote monitoringof UPS, relay card is optional.
