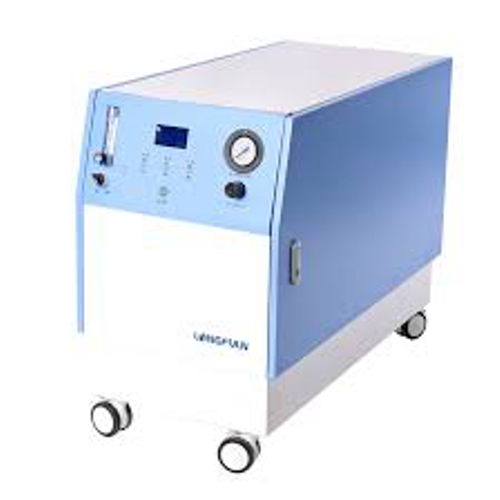

20–60 PSI High Pressure Oxygen Concentrator JAY-10-4.0

The JAY-10-4.0 is a high-pressure oxygen concentrator designed to provide a consistent oxygen supply with adjustable flow rates ranging from 1 to 10 L/min and an outlet pressure of 20–60 PSI (0.14–0.4 MPa). Its compact design and mobility make it suitable for various medical settings, including intensive care units and operating rooms. The unit features a high-efficiency three-tower adsorption system, ensuring durability and consistent oxygen purity of 93% (±3%).

Key Features

• Flow Rate: 1–10 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤1250W
• Sound Level: ≤50 dB
• Net Weight: 90 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers and nanobubble generators

Features

• High-Precision Calibration: Delivers a known air volume for accurate spirometer validation and quality control.
• Multiple Volume Options: Available in 1L, 2L, and 3L capacities to accommodate various calibration needs.
• Durable Construction: Made from high-quality aluminum or stainless steel for long-lasting performance and resistance to wear.
• ATS/ERS Compliance: Meets international pulmonary function testing standards for accurate and consistent calibration.
• Easy Operation: Simple manual operation for quick and efficient calibration checks in clinical and research settings.
• Universal Compatibility: Designed to work with most spirometers and pulmonary function testing devices.
• Stable Airflow Output: Ensures consistent and reliable pressure for calibration accuracy.
• Portable & Lightweight: Compact design for easy transport and use in different testing environments.
• Essential for Quality Control: Ideal for hospitals, clinics, research laboratories, and spirometry device manufacturers.

Scope of Application

Specifications

Key Features:

• Flow Rate: 0.5–10 L/min
• Oxygen Concentration: 93% ± 3%
• Continuous Operation: Advanced cooling system for 24/7 use
• User-Friendly Interface: LCD display with simple controls
• Mobility: Four castors with two brakes for easy movement
• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts

The Longfian JAY-10FW is a high-capacity, dual-flow oxygen concentrator designed to meet the needs of patients requiring substantial oxygen support. With a flow rate adjustable from 0.5 to 10 L/min and oxygen concentration maintained at 93% ± 3%, it ensures effective therapy for conditions like pulmonary fibrosis and severe COPD. The dual-flow configuration allows two users to inhale oxygen simultaneously, enhancing its utility in clinical settings. Equipped with advanced cooling technology, the JAY-10FW ensures reliable 24/7 operation. Its user-friendly LCD display, safety alarms, and mobility features enhance usability and patient safety.​

Key Features:

• Flow Rate: 0.5–10 L/min

• Oxygen Concentration: 93% ± 3%

• Dual-Flow Capability: Supports two users simultaneously

• Continuous Operation: Advanced cooling system for 24/7 use

• User-Friendly Interface: LCD display with simple controls

• Mobility: Four castors with two brakes for easy movement

• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts

Features

• High pressure oxygen concentrator for small hospitals
• Manufactured by Longfian Scitech Co., Ltd.
• Thomas compressor for reliable performance
• High efficiency three-tower adsorption system for durability
• Pressure gauge on site for flexible adjustment
• Small and compact design for easy movement during emergencies
• Automatic dehydrator/refrigerated air dryer included
• Available models: JAY-10-4.0, JAY-15-4.0, JAY-20-4.0
• Flow rate options: 1-10L/min, 1-15L/min, 1-20L/min
• Oxygen purity of 93% (+3%)
• Outlet pressure range: 20-60 PSI (0.14-0.4Mpa)
• Low sound level of ≤ 50dB
• Net weight: 90kg (JAY-10-4.0), 118kg (JAY-15-4.0)
• Power consumption: ≤ 1250W (JAY-10-4.0), ≤ 2000W (JAY-15-4.0, JAY-20-4.0)
• Input frequency options: 50Hz; 60 Hz
• Input voltage options: AC 230V±10%, AC 110V ±10%
