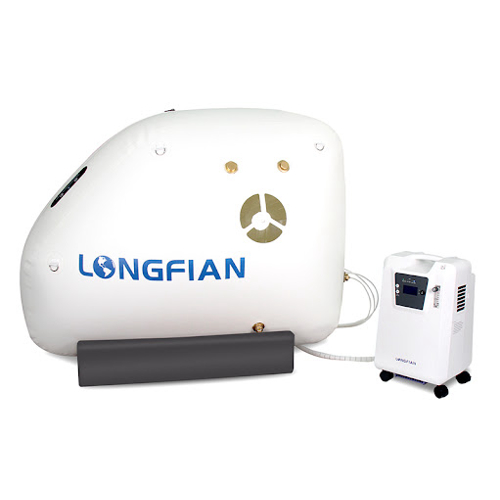

Hyperbaric Oxygen Therapy

Features

• 1.3ATA(4psi)operating pressure .
• 2 zipper seal for easier entrance .
• Cotton chamber protection cover , to avoid dirty and easy to wash .
• Most popular model for home treatment or commercial usage .Emergency valve - To speed the depressurization in emergency .
• Easy Operation - One people can operate it without assistance .
• Internal Pressure Gauge - User can observe the pressure while inside the chamber .
• Internal metal frame - Hold the shape when deflated

The JAY-3AW and JAY-5AW are robust oxygen concentrators designed for continuous use. With flow rates of 3L/min and 5L/min, they deliver oxygen at a concentration of 93% (±3%). Their innovative cooling systems ensure reliable 24/7 operation, making them suitable for both home and clinical environments.​

Key features include:

• User-Friendly Interface: Simple controls with an easy-to-read LCD display.

• Mobility: Four flexible castors with two brakes for easy movement and secure positioning.

• Safety Features: Humidifier bottle with a 6PSI pressure relief valve, and alarms for power failure, high/low pressure, and low oxygen concentration.​

These models are compatible with High-Flow Nasal Cannula (HFNC), Hyperbaric Oxygen Chambers (HBOC), and BIPAP systems, enhancing their versatility in oxygen therapy applications. ​

Features

Key Specifications

The JAY-10-4.0 is a high-pressure oxygen concentrator designed to provide a consistent oxygen supply with adjustable flow rates ranging from 1 to 10 L/min and an outlet pressure of 20–60 PSI (0.14–0.4 MPa). Its compact design and mobility make it suitable for various medical settings, including intensive care units and operating rooms. The unit features a high-efficiency three-tower adsorption system, ensuring durability and consistent oxygen purity of 93% (±3%).

Key Features

• Flow Rate: 1–10 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤1250W
• Sound Level: ≤50 dB
• Net Weight: 90 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers and nanobubble generators

The JAY-40-4.0 is a high-pressure oxygen concentrator designed for large medical institutions and specialized applications. It provides an adjustable flow rate of 1 to 40 L/min with a consistent outlet pressure of 60 PSI (0.4 MPa). The unit maintains an oxygen concentration of 93% (±3%) and features a high-efficiency three-tower adsorption system for enhanced durability. Its robust design ensures reliable performance in intensive care units, operating rooms, and hyperbaric oxygen therapy chambers.

Key Features

• Flow Rate: 1–40 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 60 PSI (0.4 MPa)
• Power Consumption: ≤4440W
• Net Weight: 256 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen purity alarm
• Design: Compact and mobile with integrated pressure gauge and automatic dehydrator/refrigerated air dryer
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Compatible with hyperbaric oxygen chambers

The Longfian JAY-10FW is a high-capacity, dual-flow oxygen concentrator designed to meet the needs of patients requiring substantial oxygen support. With a flow rate adjustable from 0.5 to 10 L/min and oxygen concentration maintained at 93% ± 3%, it ensures effective therapy for conditions like pulmonary fibrosis and severe COPD. The dual-flow configuration allows two users to inhale oxygen simultaneously, enhancing its utility in clinical settings. Equipped with advanced cooling technology, the JAY-10FW ensures reliable 24/7 operation. Its user-friendly LCD display, safety alarms, and mobility features enhance usability and patient safety.​

Key Features:

• Flow Rate: 0.5–10 L/min

• Oxygen Concentration: 93% ± 3%

• Dual-Flow Capability: Supports two users simultaneously

• Continuous Operation: Advanced cooling system for 24/7 use

• User-Friendly Interface: LCD display with simple controls

• Mobility: Four castors with two brakes for easy movement

• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts
