Barco MDAC‑2215
$0.00
Shipped From Abroad

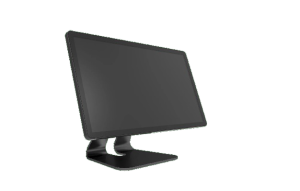

The Barco MDAC-2215 is a 15.6-inch Full HD medical touchscreen display designed for multimodal imaging. It supports precise capacitive touch even with surgical gloves, ergonomic use, easy mounting, and thorough cleaning – ideal for OR carts, trolleys, and point-of-care settings.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The MDAC-2215 is a compact 15.6″ touchscreen display built for healthcare environments needing reliable touch interaction. With Full HD resolution and projected capacitive (P-Cap) multi-touch, it supports gesture controls even when users wear gloves. It features an HID-compliant USB interface (no extra driver required), ergonomic tilt adjustability, VESA mounting for arms or carts, and a design optimized for easy cleaning and disinfection. It’s suited to surgical suites, diagnostic stations, and clinical carts requiring direct user input on imaging systems.
Features
-
15.6″ Full HD (1920 × 1080) capacitive touchscreen
-
Multi-touch (10-point P-Cap) support, glove-compatible
-
HID USB interface (plug & play)
-
Tilt-adjustable stand plus VESA 100×100 mounting
-
Designed for easy cleaning and disinfection
-
Compact form factor suited for OR carts and small systems
-
Multi-modal imaging support
-
Certified for medical use (CE, FCC)
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Technology | TFT LCD |
| Active Size (Diagonal) | ~15.6″ |
| Resolution | 1920 × 1080 (Full HD) |
| Luminance | 360 cd/m² |
| Color Support | 16.7 million colors (max) |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angle | Minimum 160° |
| Response Time | Up to 35 ms (Tr: 19 ms, Tf: 16 ms) |
| Touch Input | P-Cap, 10-point |
| Certifications | CE, FCC |
| IP Rating | IPX0 (no special ingress protection) |
| Operating Temp | 0 °C to 40 °C |
| Storage Temp | –20 °C to 60 °C |
| Operating Humidity | 0% to 90% (non-condensing) |
| Mounting Standard | VESA 100 × 100 mm |
| Dimensions (without stand) | 224 × 370 × 28 mm |
| Dimensions (with stand) | 250 × 370 × 170 mm |
| Net Weight | 3.80 kg |
