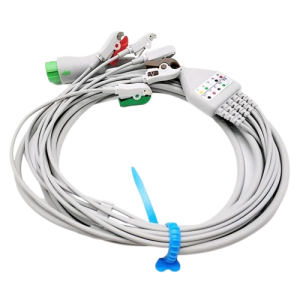

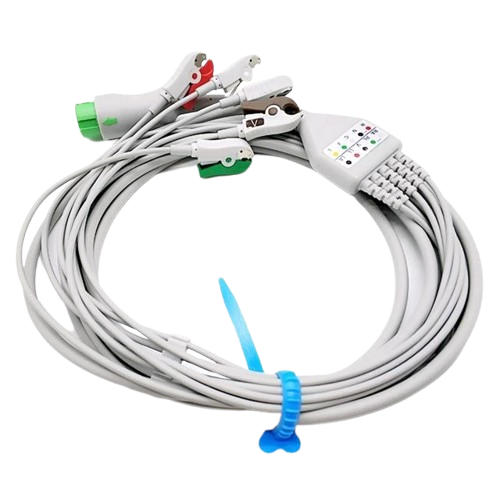

Biocare Im12 Compatible ECG Cable
$0.00
Shipped From Abroad
The Biocare iM12 compatible ECG cable ensures accurate cardiac monitoring with a secure 12-pin connection. Available in 3 or 5-lead configurations with snap or clip options, it delivers reliable signal transmission and durability. Ideal for clinical and hospital use, it’s crafted with medical-grade materials for long-lasting performance.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Key Features:
-
Compatible with Biocare iM12 monitors
-
Available in 3-lead or 5-lead versions
-
Snap or clip electrode connectors
-
Durable TPU jacket for flexibility and strength
-
AHA or IEC color-coded options
-
Medical-grade materials ensure accurate readings
-
Easy plug-and-play design
-
CE and ISO certified
Specifications
| Specification | Details |
|---|---|
| Compatibility | Biocare iM12 Patient Monitor |
| Connector Type (Monitor) | 12-pin round connector |
| Lead Configurations | 3-lead or 5-lead |
| Electrode Connector | Snap or Clip (pinch/grabber) |
| Color Coding | AHA (American) or IEC (International) |
| Cable Length (Trunk) | 2.5 – 3.4 meters (approx. 8 – 11 feet) |
| Cable Length (Lead Wires) | 0.9 – 1.2 meters (approx. 3 – 4 feet) |
| Jacket Material | Thermoplastic Polyurethane (TPU) |
| Conductor Material | Copper tinsel wire |
| Shielding | Multi-layer shielding for noise reduction |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 15% to 95% (non-condensing) |
| Certifications | CE, ISO 13485, RoHS |
| Sterilization | Not sterilizable; clean with alcohol wipes only |
| Connection Durability | >1000 connection cycles (typical usage) |
| Packaging | Individually sealed pouch (optional) |
