BLX-10 Plus Intraoral Imaging High Frequency X-ray Machine

Brands: Fsfame

~~$0.00~~

Shipped From Abroad

The BLX-10 Plus Intraoral Imaging High-Frequency X-ray Machine provides portable, high-quality dental imaging with adjustable exposure times and low radiation leakage. Its compact design and compatibility with various imaging mediums make it an ideal choice for modern dental practices seeking efficiency and safety in radiography.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Fsfame

Description
Reviews (0)

Description

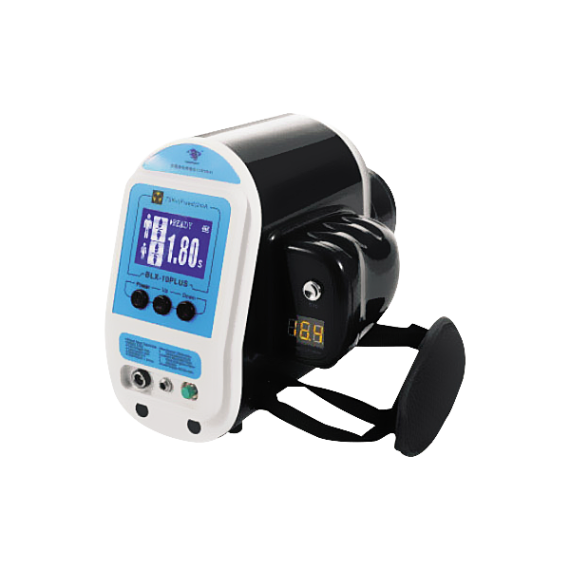

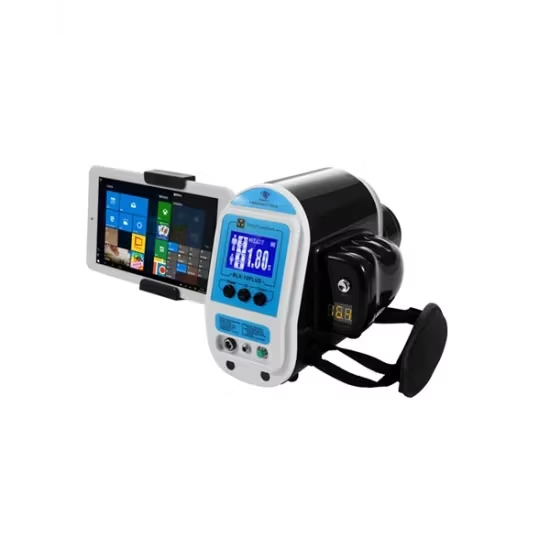

The BLX-10 Plus Intraoral Imaging High-Frequency X-ray Machine is designed for dental professionals seeking a portable and efficient radiography solution. Operating at a high frequency of 30 kHz, it ensures clear and stable images. The device features adjustable exposure times ranging from 0.1 to 1.8 seconds, catering to various diagnostic needs. Its compact design, weighing approximately 2.5 kg, allows for easy transportation and use in multiple clinical settings. With a tube voltage of 70 kV and a tube current of 2 mA, it delivers precise imaging while maintaining radiation leakage below 20 μGy/h, adhering to international safety standards. The BLX-10 Plus is compatible with both traditional dental films and digital sensors, making it a versatile addition to any dental practice.

Key Features

High-Frequency Operation: Operates at 30 kHz, ensuring stable and clear imaging results.
Adjustable Exposure Time: Exposure time ranges from 0.1 to 1.8 seconds, allowing flexibility based on diagnostic requirements.
Toshiba 0.3mm Micro-Focus Tube: Delivers clearer and more detailed images, crucial for precise diagnostics.
Radiation Protection: Equipped with multilayer X-ray shielding, ensuring safety for both operator and patient.
Portable Design: Compact in volume and light in weight (approximately 2.5 kg), convenient for carrying and operation.
Compatibility: Compatible with both traditional dental films and digital sensors, facilitating integration into different imaging workflows.

Specifications

Specification	Details
Tube Voltage	70 kV (fixed)
Tube Current	2 mA (fixed)
Frequency	30 kHz
Exposure Time	0.1–1.8 seconds
Focus Spot Size	0.3 mm (Toshiba tube)
Radiation Leakage	<20 μGy/h
Power Supply	DC 16.8V rechargeable battery
Weight	Approximately 2.5 kg
Dimensions	215 × 140 × 160 mm
Operating Temperature	5–40ºC
Humidity	<80% RH

Reviews

There are no reviews yet.

Be the first to review “BLX-10 Plus Intraoral Imaging High Frequency X-ray Machine”

Quick Comparison

BLX-10 Plus Intraoral Imaging High Frequency X-ray Machine remove Mobile Dental X-ray Unit with Chair remove Gutta Percha Obturation System remove Genoray Panoramic Dental X-Ray PAPAYA remove Stellaris 3D Extraoral Imaging remove Xline Art Plus Extraoral Imaging remove

Name BLX-10 Plus Intraoral Imaging High Frequency X-ray Machine remove Mobile Dental X-ray Unit with Chair remove Gutta Percha Obturation System remove Genoray Panoramic Dental X-Ray PAPAYA remove Stellaris 3D Extraoral Imaging remove Xline Art Plus Extraoral Imaging remove


SKU SF1033560069 SF103356013066 SF10335601218 SF103356013092-3 SF103356013092-2

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The BLX-10 Plus Intraoral Imaging High-Frequency X-ray Machine provides portable, high-quality dental imaging with adjustable exposure times and low radiation leakage. Its compact design and compatibility with various imaging mediums make it an ideal choice for modern dental practices seeking efficiency and safety in radiography.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Product Description:

The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
Fitted with 70KV 8mA tube with preheating grid, the machine has been specially designed for intraoral dental diagnosis applications

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

FreeFill - the newest filling system for liquid Denut's gutta-percha.
Wireless - minimizing the time and materials needed to fill the channel.
The use of the device ensures the highest quality and precision in filling the ducts.
Wireless device 3-dimensional obturation system.
Fantastic combination of filling with the method of vertical compaction.
Provides excellent hermetic sealing of the root canal.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Stellaris 3D & 3D Ceph

Stellaris 3D is a complete and compact fully upgradeable 3D CBCT, Panoramic and Cephalometric system, which covers an entire range of applications – from endodontics, periodontology, surgery, implantology to orthodontics – everything you need in your daily practice.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Premium technology for superb quality

Xline Art Plus is an advanced digital panoramic system with the latest premium CdTe-CMOS sensor technology. It combines extraordinary image quality, sharpness, and contrast with advanced diagnostic tools. Due to the special sensor technology and continuous autofocus function, Xline Art Plus always delivers properly focused images, in both Pan and Pan Ceph versions. Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Key Features

High-Frequency Operation: Operates at 30 kHz, ensuring stable and clear imaging results.
Adjustable Exposure Time: Exposure time ranges from 0.1 to 1.8 seconds, allowing flexibility based on diagnostic requirements.
Toshiba 0.3mm Micro-Focus Tube: Delivers clearer and more detailed images, crucial for precise diagnostics.
Radiation Protection: Equipped with multilayer X-ray shielding, ensuring safety for both operator and patient.
Portable Design: Compact in volume and light in weight (approximately 2.5 kg), convenient for carrying and operation.
Compatibility: Compatible with both traditional dental films and digital sensors, facilitating integration into different imaging workflows.

Specifications

Specification	Details
Tube Voltage	70 kV (fixed)
Tube Current	2 mA (fixed)
Frequency	30 kHz
Exposure Time	0.1–1.8 seconds
Focus Spot Size	0.3 mm (Toshiba tube)
Radiation Leakage	<20 μGy/h
Power Supply	DC 16.8V rechargeable battery
Weight	Approximately 2.5 kg
Dimensions	215 × 140 × 160 mm
Operating Temperature	5–40ºC
Humidity	<80% RH

Product Description:

The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
Fitted with 70KV 8mA tube with preheating grid, the machine has been specially designed for intraoral dental diagnosis applications.

Technical Specification: Tube voltage: 60kVp Tube current: 8mA Focus size: 1.5mm Total filtration: 2.5mmAL Exposure time: 0.2 - 4sec Leak Radiation: Outside one meter ≤ 0.002mGy/h Power supply: AC 220V±10%, 50Hz,1KVA

FreeFill - the newest filling system for liquid Denut's gutta-percha.
Wireless - minimizing the time and materials needed to fill the channel.
The use of the device ensures the highest quality and precision in filling the ducts.
Wireless device 3-dimensional obturation system.
Fantastic combination of filling with the method of vertical compaction.
Provides excellent hermetic sealing of the root canal.
Together, the entire main channel and side channels are filled.
Excellent control of the honing part and filling of anatomically complex channels.
Two mobile systems in one device (hot plugger and obturator).
The obturator cover can be sterilized in an autoclave.
The device is covered by the manufacturer's one-year warranty (application tips and tips for the plugger are consumable - they are not covered by the warranty).
Technical data - charging system and batteries:
- operating voltage - DC 3.7 V,
- input adapter - AC 100 - 240 V, 50/60 Hz,
- output - DC 7.5 V, 2.5 A,
- indicator indicating the status of charging / charging,
- time to full charge - about 1 hour,
- two power supplies included.

Gun - Obturation Gun:
- heater - DC 3.7 V, 10 W,
- temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
- working time with continuous use of the gun - about 120 minutes (when the battery is fully charged),
- automatic shutdown after 5 minutes of non-use (battery saving),
- automatic shut-off after 15 minutes of continuous operation (prevents burning of the heater),
- ECO system (energy-saving) - temperature maintained at 1200C in order to warm up to a given temperature faster,
- induction switch placed in the handle - switches the heating on / off depending on whether the device is held in hand or not,
- the possibility of setting the needle in any direction (once the bent needle can be used to fill the lower or upper one).

Plugger - obturation pen:
- heater - DC 3.7 V, 10 W,
- temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
- working time for continuous use of the plug - 60 minutes (when the battery is fully charged),
- 3600 power button,
- 6 directions of injection tips setting,
- automatic shutdown after 5 minutes,
- information about proper connection of the needle,
- information about the damaged needle.

Set contains:
- gun - obturation gun - 1 piece,
- gun stand with built-in charger - stand for gun - 1 piece,
- plugger - obturation pen - 1 piece,
- stand for plugger with built-in charger - stand for pen - 1 piece,
- injection needles - gun needle - 3 pieces,
- pen tip - pen tip - 4 pieces,
- the key for injection needles - adapter - 1 piece,
- pusher for hot gutta-percha - 2 pieces,
- thermal casings - heat insulator - 2 pieces,
- cleaning brush - brush - 1 piece,
- power supply - 2 pieces,
- gutta-percha - 20 pieces,
- instruction - 1 piece.

There is a possibility to buy tips for the plugger:
- set - 4 sizes after the play,
- size F - white (thin),
- FM size - yellow,
- size M - red,
- ML size - black.

Papaya Has the best imaging sensors available By choosing a sensor, which improves the image quality while keeping radiation exposure to a minimum, Genoray has shown that it puts patient’s safety first. High-Definition images distinguish themselves from the old indirect conversion type of a CCD sensor. This should be the only way you view images Multi-focus function ables to overcome operator's mistake from patient's faulty positioning and re-exposuring X-ray. By reconstructing image with software way, the panoramic images layer can be corrected by multi-focus function. Face to face positioning / Fit each individual’s jaw shape. / Voice support system / Hand switch / Emergency switch / Wheelchair accessible Tomography Imaging (Optional) PAPAYA PLUS added Tomography function and without hardware upgrade and considering of manufacturing of Tomography function; in addition to S/W, PAPAYA provides Tomography image. Standard panoramic, orthogonal panoramic, bitewing panoramic, child panoramic, TMJ lateral double, horizontal & vertical X-ray segmentation, TMJ PA double, TMJ LAT-PA, TMJ LAT-PA double, sinus lateral and sinus PA EXCELLENT IMAGE QUALITY Various Scan Mode With various scan modes of Panoramic, CT and Cephalometric*, assist in accurate diagnosis Magic Ceph Hole The Magic Hole is a passageway through the X-ray to prevent image distortion when scanning Ceph. CUST (Cubical Semi Tomographic) Using 256 cross-sectional images, CUST makes the images required for implant diagnosis. More economical than 3D CT. Enhanced Image Processing Multi Focus With five panoramic images simultaneously acquired in a single scan, selet the best image. Easy-to-use System Face to Face Positioning Open architecture helps operating equipment and positioning patients. Also improves the psychological stability of the patient. Intel i5 with SSD system, 24 inch monitors, software included.

Click Here To Download Catalogue

This advanced imaging unit supports panoramic (2D), volumetric (3D CBCT), and cephalometric exams in one system, allowing dental practices to expand diagnostics without adding multiple machines. It offers multiple fields of view (FOVs) covering small volumes (e.g., endodontic) to large (full-jaw or sinuses), child and adult modes, and high-definition or low-dose eco modes. The system features a modern sensor array, smooth kinematic movement, touchscreen plus PC control, ambient lighting, and wheelchair-accessible standing or sitting patient options. Upgrade pathways allow later addition of ceph-arm or enhanced volumes, making it ideal for evolving clinics.

Features

Ready for Every Diagnosis Stellaris 3D covers a variety of diagnostics in 2D, 3D and Ceph with multiple fields of view, programs for panoramic examinations and cephalometric scans. Compact and Modern The minimalist, elegant, space-saving design allows installation of Stellaris 3D in areas where conventional devices would not fit. Power of Touch Control of the system is available from your PC screen as well as on the unit's touchscreen, allowing straightforward program selection with hints for correct positioning.

Product Features

8 different FOV's for Your Daily Needs Stellaris 3D covers a complete range of CBCT programs for various applications – from endodontics through surgery and implantology to bone augmentations. Ambient Glow Ambient lighting creates a comfortable atmosphere for the patient and allows to monitor the unit status from a distance. High Definition and ECO Programs Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks. Advanced Technology Latest sensor design, technology and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Technical Specifications

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Voxel Size	80 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 - 86 kV
Tube Current	2.5 - 10 mA
Exposure time 2D	4.6 - 14.2 seconds
Exposure time 3D	5 - 16.9 seconds
Exposure Time Ceph One-Shot	0,5s adult, 0,2s child
3D Active Sensor Area	160x160 mm
Ceph Image Size	240x300 mm
Volume size 3D	5x6,5, 7x6,5, 6x10, 8x6,5, 8x10, 11x6,5, 11x10
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
3D Programs	in total 27: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left.
Ceph Programs	LL 30x24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	Stellaris PRO
Features	3 in 1 or 2 in 1 upgradeable to 3 in 1
Footprint	140x110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes

Technical Drawing

Click here to download Catalogue

The ART Plus delivers exceptional dental-imaging performance through its direct-conversion sensor—enabling superior sharpness, contrast, and clarity while supporting reduced dosage. Continuous autofocus and a wide focal zone (up to 30 mm) ensure the region of interest remains in focus, reducing retakes. The system provides panoramic imaging (adult and child programmes) and is available in a “Pan Only” or “Pan + Ceph” configuration. Intuitive software controls streamline workflow—exposure programmes can be set in two clicks, and the imaging suite is optimised for digital dental clinics, implant planning, orthodontics, and general dental diagnostics.

Product Features

Excellent Image Quality

Latest direct conversion technology for high resolution, extraordinary sharpness, clarity, and lower dose.

Easy to operate

Intuitive and fast setting of the exposure program with just 2 clicks.

Continuous Autofocus

No more blurred images and additional exposures – the region of interest is always in focus.

Autofocus

Latest sensor and autofocus technology for the best image quality.

Wide focal zone

Due to patented algorithms, the focal one is up to 30 mm wide, instead of traditional 4 mm. Your region of interest will always be in focus.

Direct Conversion sensor

Direct conversion of X-rays to electrical signals increases the image clarity and contrast while reducing the readout time and dose. Superior Image Quality.

Intuitive Software
