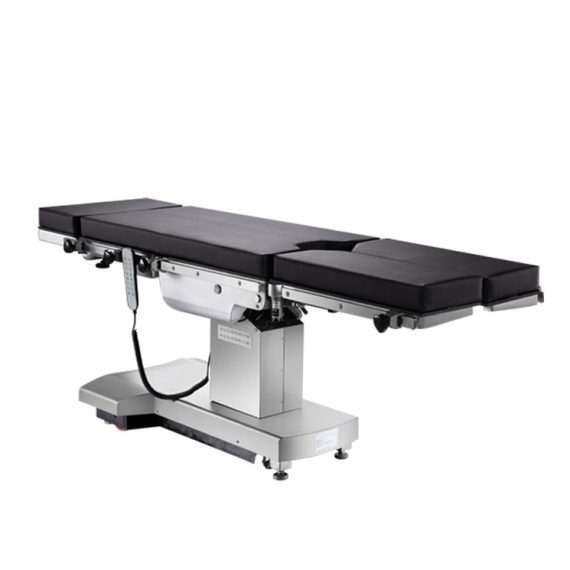

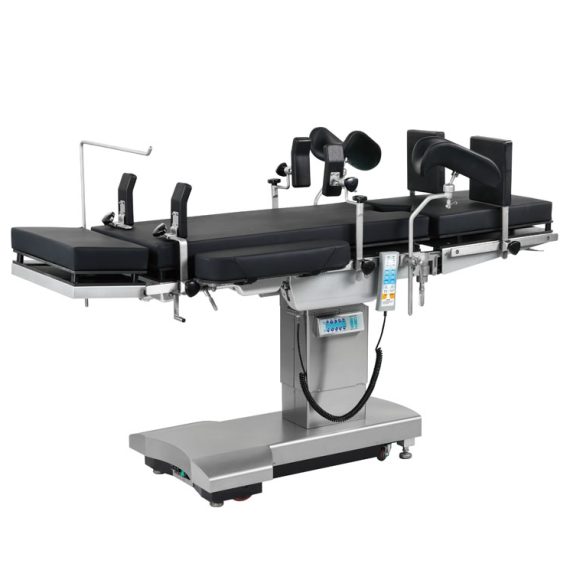

BW 600 Electric Hydraulic Operation Table

Brands: Bowin-Med

~~$0.00~~

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130166-10

Brands:: Bowin-Med

Description
Reviews (0)

Description

Features

Stainless Steel Structure with 8cm Slow Rebound Latex Foam Mattress
Five-Section Body Layout for Multiple Surgical Position Request
Reliable Electric-Hydraulic System with Smooth Movement & Silent Lifting
350mm Table Top Sliding Applicable with Both X-Ray and C-Arm
Individual Kidney Bridge Elevation System
Standard-Remote Controller
Optional-Column Controller to upgraded to double controller
Optional-One Key Reset Function
Optional-Built-in Backup Battery for 50-80 Times Setting/About one week.
Optional-Gas Spring foot plate
24V battery that meets the operating demands for one week, better ensure the table work under safe voltage.
Automatically lockable remote control in case of wrong operation.
Large-scale elevation makes it easier for C-arm fluoroscopy examination.
With a built-in kidney bridge. suited for kidney operations.
Optional traction for orthopedics, headrest for Aural surgery, extended functions of the table
Electromotion facilitates the various adjustments of positions, intellectualized reposition enables the table a quick return to a horizontal position.

Technical parameters

Model	BW 600
Tabletop Length/width	1960mm/500mm
Tabletop Elevation(up/down)	1100/690mm
Trendelenburg/Anti-tredelenburg	30°/30°
Lateral tilt	18°/18°
Head plate adjustment	40°/90°
Leg plate adjustment	up: 15° ,down:90°,outward:90°
Backplate adjustment	+90°/-40°
Kidney bridge	110mm
Horizontal sliding	350mm

Standard Accessories

Anesthesia screen frame 1 piece
Shoulder support 1 pair
Body support 1 piece
Armrests 1 pair
Long fixing clamp 1 pair
Waist support frame 1 piece
Leg support holder 1 pair
Foot support 1 pair
Hand remote 1 piece
Fixing clamp 8 pieces
