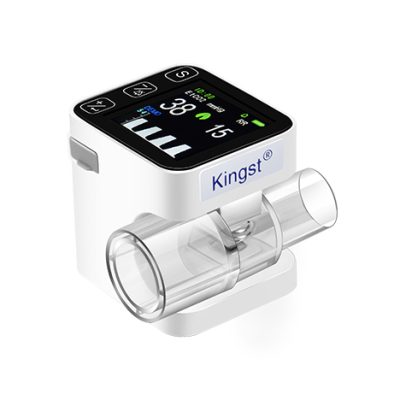

CO2 Mainstream Module Capno-M+
$0.00
Shipped From Abroad
An original patented product that can be used for both intubated patients and non-intubated patients, breaking through the limitation that mainstream modules can only be used for intubated patients.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Features of CO2 Mainstream Module Capno-M+
- Patented Products
With its compact design and two kinds of adapters, the mainstream module can be used for intubated patients and non-intubated patients. Breathing light intuitively and qualitatively reacts to real-time concentration.
- High Precision
Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio and ensure the measurement accuracy within the temperature range of -5-50°C and the measurement range of 0-20%.
- Suitable For Adults, Children and Newborns
Excellent performance and low cost. Plug and play, the host does not need an internal circuit, but just a serial port. The data can be measured within 4 seconds after power on.
- Automatic Pressure Compensation
There is an atmospheric pressure sensor inside, which is suitable for various altitude ranges. Built-in interference gas compensation algorithm.
- Reliable Carbon Dioxide OEM Solutions
A variety of protocols, so that your products quickly upgrade assembly.
Specifications of CO2 Mainstream Module Capno-M+
| Technique | Non-dispersive infrared gas analysis, multi-channel infrared detector, no moving parts |
| Storage condition | -40°C to 70°C,<93% RH, non-condensing |
| Working condition | 5 to 40℃,10 to 90% RH, non-condensing |
| Circumstance pressure | 55-115kP |
| Power demand | 5V ± 5% (max ripple 200 mVp-p) |
| Power consumption | <150mA |
| lnterface | RS-232/Standard E-8-1, 38.4 kBaud,10 ms data interval (KM) or customized communication protocol. |
| CO2 measurement range | 0-150 mmHg, 0-20 kPa, 0-19.7% |
| CO2 resolution | 0.1mmHg |
| co2 measurement accuracy | 0 – 40 mmHg ± 2 mmHg
41 – 70 mmHg ± 5% of reading 71 – 100 mmHg ± 8% of reading 101 – 150 mmHg ± 10% of reading |
| Respiration rate | 3-150 bpm |
| Respiration rate accuracy | ±1% of reading or ±1 rpm whichever is greater |
| Anesthetic gas compensation | N2O, O2, Agent (HOST supplied) |
| Barometric Pressure | Barometric Pressure 400 to 860 mm Hg automatic |
| Warm-up time | To reach designed deviation 97% within 8s, to reach designed deviation within 20s. |
| Rise time | About 70ms |
| CO2 Stability | Shortly drifting: drifting less than 1 mmHg, after 4 hours’ power on. Long drifting: drifting does not influence nominal accuracy after continu hous 140 hours’power on |
| Calibration | No routine user calibration required |
| Zero | proceeding when replacing adaptor |
| EtCO2 calcualtion | every breath, or 10 or 20 seconds averagely |
Application Scenarios of CO2 Mainstream Module Capno-M+
- Innovative Patented Products
Capno-M+ is an innovative carbon dioxide module independently developed by Kingst, which can be used for both intubated and non-intubated patients. It breaks through the limit that the mainstream modules can only be used for intubated patients in the past.
- High Accuracy
It is equipped with a high-quality Infrared device, hardware design, and software algorithm to achieve gas concentration measurement with a high signal-to-noise ratio;
- Low Consumption and Easy to use
A variety of adapters for adults, children and newborns, cost-effective, reduce the cost of use;
- Plug and Play，
No circuit is required inside the host, only one serial port is needed, and the data can be measured within 4 seconds after power-on;
- Automatic Pressure Compensation
There is an internal atmospheric pressure sensor, suitable for various altitude ranges, and a built-in interference gas compensation algorithm;
- OEM Solution
Reliable CO2 OEM solution, compatible with multiple protocols, enabling you to quickly upgrade your product.
