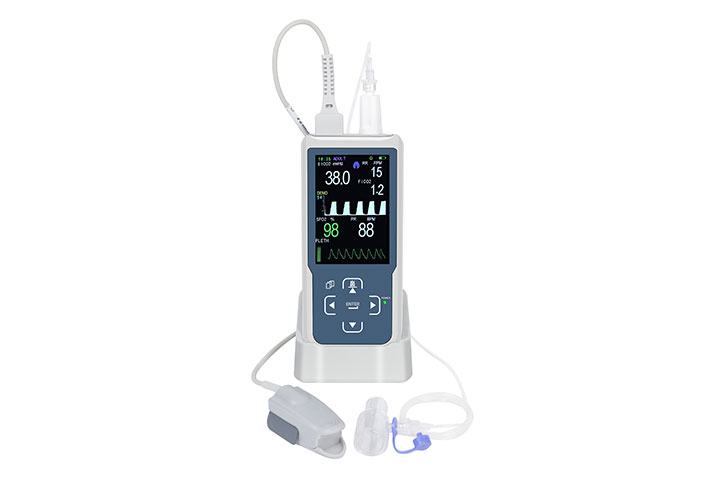

Handheld Capnograph and Oximeter Capno-H
$0.00
Shipped From Abroad
A handheld carbon dioxide monitor with automatic atmospheric pressure compensation, high accuracy, suitable for various complex environments.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Features of Kingst Handheld Capnograph and Oximeter Capno-H
- Certification – With FDA certification, CE certification, 1SO9000 certification, the product conforms to RoHS, ETCO2 module conforms to FDA certification
- Compact and Lightweight – 3.5 inch LCD display, 380g weight
- Technique – Using non-scattering infrared gas analysis technology
- Unit – kpa, %, mmHg
- Air pump flow – The air pump flow is adjustable, its range: 50cc/min—250cc/min
- Safety – Patented filter to ensure continuous machine work without obstacles
Specifications
| AC Input | 100V – 240V, 50Hz/60 Hz to 5VDC Adapter with 5V type-CUSB adapter Cable. Optional Vehicle 12V to 5V Type-CUSB Charger Lead. |
| Battery | Built-in rechargeable lithium battery pack (3.7V, 3500mAH) |
| Temperature | 5 to +40 ℃ |
| Humidity | 30-75% |
| Atmospheric pressure | 86~106kpa |
| EtCO2/FiCO2 Range | 0~150mmHg |
| Accuracy | ±2mmHg for CO2 range 0 – 40mmHg； ±5% for CO2 range from 41 – 70mmHg; ±8% for CO2 range from 71 – 100mmHg; Over 100mmHg ±10% |
| Respiration Rate Range | 3~150 breaths/minute |
| Accuracy | ±1% of reading or ±1 rpm whichever is greater |
| Size | 72 x 155 x 38mm (W x H x D) |
| Weight | Weight on Airway ETT/LMA<25g. Monitor 380g |
| Display size | 3.5 inches |
Application Scenarios of Kingst Handheld Capnograph and Oximeter Capno-H
-
Two modes are available: sidestream and mainstream.
- Capno-H can simultaneously measure blood oxygen saturation, pulse rate, ETCO2 and respiratory rate. Its lithium battery can support continuous work at full load for more than 10 hours; Capno-H is available for short and long-term monitoring of adults, pediatrics, and infants. It is ready to use after power on and no need to calibrate.
- Capno-H has automatic atmospheric pressure compensation that can provide accurate monitoring whether in plateau or helicopter rescue.
- With selected interference gas, pulmonary pressure and body temperature compensation to achieve the higher precision.
- With simple maintenance and sturdy structure, Capno-H is suitable for various harsh environments.
Quick Comparison
| Handheld Capnograph and Oximeter Capno-H remove | Dolphin-4D Transcranial Doppler Probe remove | Siare Morpheus LT Anaesthetic Machine remove | Render SD-M2000A Anesthetic Machine remove | Timesco Eclipse McCoy Laryngoscope Set remove | Siare Morpheus M Anaesthetic Machine remove | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Handheld Capnograph and Oximeter Capno-H remove | Dolphin-4D Transcranial Doppler Probe remove | Siare Morpheus LT Anaesthetic Machine remove | Render SD-M2000A Anesthetic Machine remove | Timesco Eclipse McCoy Laryngoscope Set remove | Siare Morpheus M Anaesthetic Machine remove | ||||||||||||||||||||||||
| Image | |  |  |  |  |  | ||||||||||||||||||||||||
| SKU | SF1033560130170-2 | SF1033560130142-1 | SF1033560101- 3 | SF1033560011-13 | SF1033560084-54 | SF1033560101-2 | ||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||
| Price |
|
|
|
|
|
| ||||||||||||||||||||||||
| Stock | ||||||||||||||||||||||||||||||
| Availability | ||||||||||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||||||||||
| Description | Shipped From Abroad
A handheld carbon dioxide monitor with automatic atmospheric pressure compensation, high accuracy, suitable for various complex environments.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad

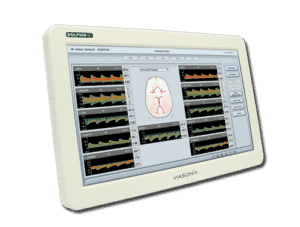

The cutting-edge technology of the standalone Dolphin/4D transcranial Doppler system is the optimal TCD solution for measurements of cerebral blood flow velocities.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped from Abroad he Morpheus LT is an anesthetic machine suitable for treatment of adults, children and new-borns. lt is provided with a mechanical 3-gas flowmeters group and a group tor rapid connection of two vaporizers in line and it is supplied with an advanced manual ventilation system, APL system, or AUX system with traditional To-and-Fro valve switched on and off automatically by ventilator. The unit frame is made tor 30% of light alloy and for 70% of fullyrecyclable plastic materiai. Thanks to the materiai used, the Morpheus has a total weight of less than 80 kgs. Delivery & Availability: Typically 15 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
| In Stock

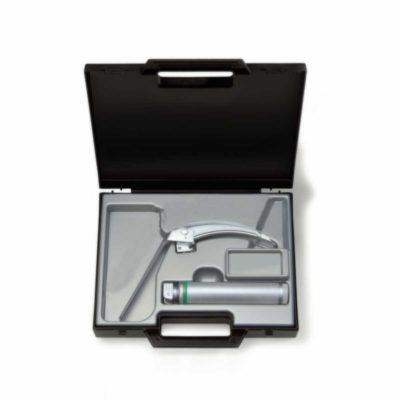

Sirius-XL Eclipse blades feature a flexible tip designed for difficult intubations and are available in Macintosh 4, 3 and 2. Supplied as a blade only in a case or as a blade and handle set in a case.
