Inbuilt 4* 2600mah lithium battery to support longer power supply for loads.
DC output interfaces support USB (5V) /9V/12V/ 15V/24V (POE)
Ethernet power supply: one network cable can transmit data and electric
power at the same time.
Over-charging, Over-discharging and Short Circuit protection
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Features:
The battery cabinet is made of metal material, strong and can bear up to 500KG.
The battery cabinet is assembled in the form of assembly, which is conven-ient for transportation and simple for assembly.
The surface of electrostatic spraying, strong rust resistance, color can be fixed spray.
Other sizes can be customized.
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Features:
Compact Size with nice housing case design. Stable performance with strong compatibility.
Built-in adapter, wide input, voltage range (100-240VAC).
Built-in multiple DC voltage (5/9/12/24/48VDC)output interfaces which can be used with external power adapters or solar panel.
Built-in large capacity lithium-ion batteries which is expanded up to 165Wh for long backup time.
100W has 19VDC output, it can be used for desktop computer / laptop computer.
60W/100W with WIFI function, it can be connected to the upper computer control. ( wall mounted type and tower type design).
Customize various of plugs and DC interfaces.
LCD indicator display design for monitor the working status easier.
Built-in multiple protection circuits, intelligently realize overcharge, over discharge, over current, overload, over temperature and short circuit protection
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Features:
Intelligent CPU control
Automatic power on when the the main power recovers
Cold start function
Power off charging function
USB/RS232/RJ-11/RJ-45 communication port (optional)
Offering LED and LCD panels for selection
Delivery & Availability:Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Content
Features:

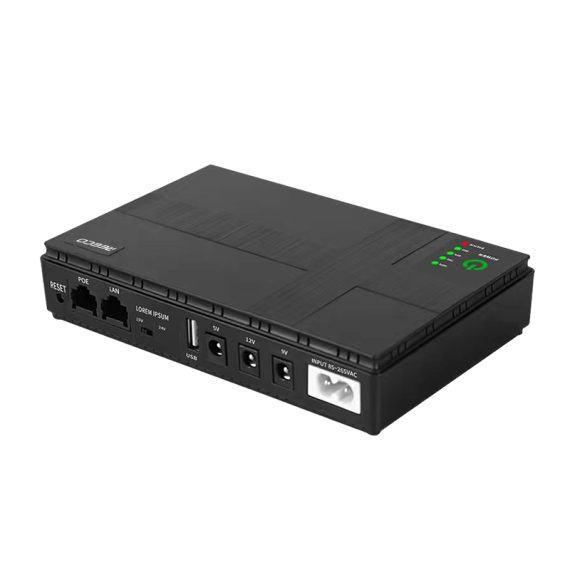

Wide AC input voltage range 85~265Vac.
Inbuilt 4* 2600mah lithium battery to support longer power supply for loads.
DC output interfaces support USB (5V) /9V/12V/ 15V/24V (POE)
Ethernet power supply: one network cable can transmit data and electric
power at the same time.
Over-charging, Over-discharging and Short Circuit protection
Specifications
Model
DC 1018P
DC 1036P
INPUT
Input Voltage
85 – 265Vac
Output
DC Output Voltage
5V 2A
5V 2A
USB 2A
USB 2A
9V 1A
9V 1A
12V 1A
12V 1A
15V/24V(POE) 0.5A
15V/24V(POE) 0.5A
18W
36W
BATTERY
Battery Type
Lithium Battery
Capacity of Battery
2600mAh * 4
PROTECTION
Protect
Over-charging, Over-discharging and Short Circuit
ENVIRNMENT
Operation Temperature
0°C – 40°C
Noise Level
Less than 40dB
Dimension(mm)
160 * 105 * 33
Net Weight(kg)
0.40
0.42
Features:
The battery cabinet is made of metal material, strong and can bear up to 500KG.
The battery cabinet is assembled in the form of assembly, which is conven-ient for transportation and simple for assembly.
The surface of electrostatic spraying, strong rust resistance, color can be fixed spray.
Other sizes can be customized.
Technical Specifications
Model
Dimensions(W*D*H) (mm)
Battery Capacity
Battery Numbers
Weight(kg)
B-1B
280x190x220
24AH/17AH
2/3PCS
2.2
B-1
435x210x270
17AH/24AH/38AH
5/3/2 PCS
3.3
65AH/100AH
1PC
B-1A
540x210x230
17AH/24AH/38AH
6/4/3PCS
4.5
B-2
450x470x320
17AH/24AH/38AH
10/6/4 PCS
7
65AH/100AH
2PCS
B-3
585x470x320
17AH/24AH/38AH
14/8/6PCS
9
65AH/100AH
3PCS
B-4
450x470x615
17AH/24AH/38AH
20/12/8PCS
15
65AH/100AH
4PCS
B-6
585x470x615
17AH/24AH/38AH
28/16/12PCS
18
65AH/100AH
6PCS
B-8
780x470x615
17AH/24AH/38AH
44/28/20PCS
21
65AH/100AH
8PCS
B-10
950x470x615
17AH/24AH/38AH
44/28/20PCS
24
65AH/100AH
10PCS
B-12
780x470x910
24AH/38AH
30/24PCS
32
65AH/100AH
12PCS
B-16
780x470x1190
24AH/38AH
40/32PCS
45
65AH/100AH
16PCS
B-20
950x470x1190
24AH/38AH
56/40PCS
50
65AH/100AH
20PCS
B-24
1150x470x1190
65AH/100AH
24PCS
57
B-32
780x880x1190
65AH/100AH
32PCS
95
B-40
950x880x1190
65AH/100AH
40PCS
100
Features:
Compact Size with nice housing case design. Stable performance with strong compatibility.
Built-in adapter, wide input, voltage range (100-240VAC).
Built-in multiple DC voltage (5/9/12/24/48VDC)output interfaces which can be used with external power adapters or solar panel.
Built-in large capacity lithium-ion batteries which is expanded up to 165Wh for long backup time.
100W has 19VDC output, it can be used for desktop computer / laptop computer.
60W/100W with WIFI function, it can be connected to the upper computer control. ( wall mounted type and tower type design).
Customize various of plugs and DC interfaces.
LCD indicator display design for monitor the working status easier.
Built-in multiple protection circuits, intelligently realize overcharge, over discharge, over current, overload, over temperature and short circuit protection
HIGH INTELLIGENCE AND RELIABLE POWER SUPPLYIGBT Technology
Full microprocessor control with no-break static and manual bypasses.
Online double conversion technology (VFl) with isolation transformer on theinverter output.
Extremely high short-circuit current to ensure compatibility with the most diffificult transformer applications (lighting, drives and industrial processes) and an isolation transformer on the inverter output.
Compatibled with Watch & Save 3000 software as standard and can be remotely monitored using the Power NetGuard system from anywhere in the world.
SIMPLE TO INSTALL
Capability to install the UPS into any distribution system(neutral not required on rectifier input).
Capability to separate the rectifier/bypass power networks and to power them from two separate sources, without Galvanic isolation(Necessary on UPS without an output transformer
MAXIMUM BATTERY CARE
Battery deep discharge protection;
Temperature compensating charger;
Built-in automatic and manual battery test feature.
OTHER CHARACTERISTICS
0.8/0.9 power factor suitable for powering ICT and lndustrial loads.
BACK FEED protection: to avoid energy feeding back into the mains supply cause a fault occur.
MAXIMUM RELIABILITY AND AVAILABILITY
Connect up to 6 units in parallel or N+1 redundancy, even of different power ratings.
The UPS continue to work in parallel even if one of theinterconnecting communication cables is disconnected(CLOSED LOOP)
LOW CONSUMPTION LEVELS
LF33 Series UPS can achieve efficiencies >98% thanks to selectable Economy Mode which can be used in stable electrical environments to provide power supply continuity when the mains fail.
ADVANCE COMMUNICATION:
RS485/RS232/Dry Contact/SNMP(Optional)
Specifications
Model
10KVA
20KVA
30KVA
40KVA
60KVA
80KVA
100KVA
120KVA
160KVA
200KVA
250KVA
300KVA
400KVA
500KVA
600KVA
Capacity
8KW
16 KW
24 KW
32 KW
48 KW
64 KW
80 KW
96 KW
128 KW
160 KW
200KW
240KW
320KW
400KW
480KW
INPUT
Rated voltage
400 VAC Three-Phase
Voltage range
380/400/415VAC(+25%,Can be set through the LCD panel)
Frequency range
40-70Hz(Automatically select synchronization range according to grid frequency)
Range(HZ)
50±5%(±10%) Bypass synchronization tracking
Rectifying pulse number
6 pulse rectification
6/12 pulse rectification
12 pulse rectifier
Phase system
3φ4W+PE(Three phase five wire system)
Battery voltage
384VDC
480VDC
Battery Quantity
Standard with 32 Cells(30~34, can be set through the LCD panel) Standard 40 Cells(38~42 knots,can be set by LCD panel)
OUTPUT
Power factor
0.8/0.9 (Optional)
Voltage(V)
L-N: 220±1% L-L: 380±1%
Three-phase 100% load
unbalance voltage stability
≤2%,Allow 100% imbalance
Frequency(HZ)
Normal power, tracking the frequency of power, Grid abnormal. 50±0.2%
Transfer time(ms)
0ms
Parallel operation mode
(parallel type)
Max 8 Parallel
Waveform distortion
Linear loadTHD<3% ; Nonlinear loadTHD<5%
Overload capacity
125% full load for 10 minutes, maintain 150 % full load for 1 minute and then switch to bypass power supply,
after reducing the loadcan automatically restore the inverter
Crest factor
3:1
Others
Index
Standard with no transfer time maintenance bypass switch
Communication function
RS232/RS485/Dry Contact/SNMP (Optional)
Panel display
LED displays working status and fault indication; LCD displays three-phase input voltage,
input frequency, three-phase output voltage, load,battery voltage, battery charge and discharge current, etc
Display
7″ Touchable LCD screen display
The audio noise(dB)
<65(within 1 meter)
Alarm function
Battery low voltage, abnormal power supply, overload, UPS failure, over temperature protection
Protection
Input over voltage, battery under voltage, overload, short circuit, over temperature protection
Cooling way
Forced cooling
Operating temperature
0℃ to ~ 40℃
Humidity
0~95%, non-condensing
electromagnetic compatibility
Conform GB7260.2
Size(W*D*H)(mm)
540*660*1135
1100*800*1800
800*800*1900
1200*850*1900
2600*1100*2000
Weight
196
233
276
329
461
547.5
643
754
1375
Features：
Rated Power: 500W
Rated Capacity: 519 . 48wh
Standard Capacity: 3.7V/140400mah
Overload Protecion: 550W + 40W
AC Output: AC 110V+10%/60HZ 230V+10%/50HZ
Output Wave: Pure sine wave
USB Output: QC 18W*2
Type-c Output: PD 60W*2
Cigarret Lighter Output: 14V/8A
DC5525 Output: 14V/8A
Wireless Charging: 15W
Charging Input: 12-26 V/100W Max
WorkingTemperature: -10-40 °C
Weight(Net Weight): 6.8kg
Weight(With Accessories): 8.5kg
Dimension: 345*227*203mm
Applications:
Mammogram
Ultrasound Equipments
Radiology rooms
Features:
Intelligent CPU control
Automatic power on when the the main power recovers
Cold start function
Power off charging function
USB/RS232/RJ-11/RJ-45 communication port (optional)
Offering LED and LCD panels for selection
Application:
Personal Computer
Printer
POS（Point of sales）Terminals
Security System
Fax Machine
Modem, WiFi Router
Technical Specifications:
Model
DP600
DP1000
DP1200
DP2000
DP3000
Capacity
600VA/360W
1000VA/600W
1200VA/720W
2000VA/1200W
3000VA/1800W
INPUT
Voltage
110/120VAA or 220/230/240VAC
Voltage Range
67-137VAC/135-275VAC
Frequency Range
50Hz Or 60Hz(Auto-Sensing)
OUTPUT
Output Voltage
110/120VAA or 220/230/240VAC
AC Voltage Regulation
± 10%
Frequency Range
(Batt. Mode)
50 HZ or 60 Hz ± 10%
Transfer Time
Typical 6-10 ms
Waveform
(Battery Mode)
Simulated Sine Wave
BATTERY
Battery Voltage
12V/7AH*1
12V/9AH*1
12V/7AH*2
12V/9AH*2
12V/7AH*4
Charge Time
8 hours up to 80-90%
PROTECTION
Full Protection
Auto Detection, discharge protection,output Short circuit, Over load, Battery low voltage protection
