ENT

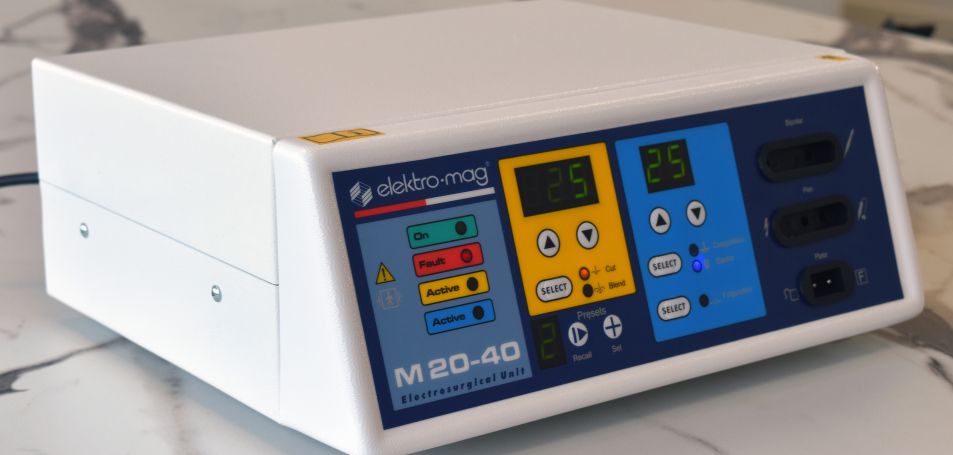

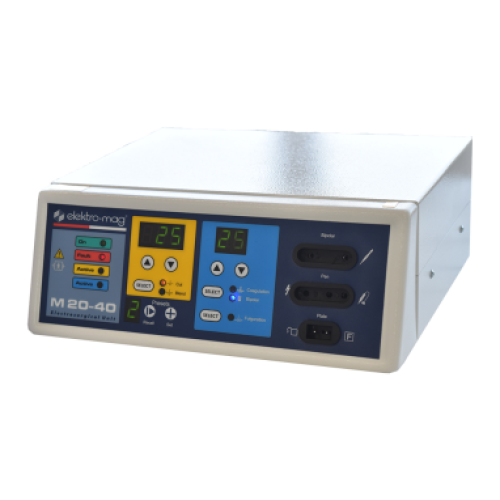

Elektro-Mag M20-40

Brands: Entermed

~~$0.00~~

Shipped From Abroad

Features

100 Watts maximum output power
9 presets
5 operating modes: spray coagulation (fuguration)
Pure and blended cutting modes; bipolar and coagulation
Finger and foot switch operation
High level of patient safety

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013089-7

Brands:: Entermed

Description
Reviews (0)

Description

Elektro-Mag M20-40 is an intelligent, microprocessor controlled electrosurgical unit. Based on years of clinic research, it is safe, reliable and powerful and can be used in the outpatients department as well as in the operating theatre. Elektro-Mag M20-40 is a versatile unit that has a wide spectrum of clinical applications (ENT, plastic surgery, proctology, dermatology, gynaecology, outpatient surgery) and guarantees fast tissue healing and quick patient recovery.

Technical specifications

Working frequency

400 khz

Modulation frequency

30 kHz

Contact COAG

40W

Activation

Dual footswitch and pencil switch

Dimensions (W x D x H)

300mm x 240 mm x 115 mm

Weight

7.5 kg

Reviews

There are no reviews yet.

Be the first to review “Elektro-Mag M20-40”

Quick Comparison

Elektro-Mag M20-40 remove Hersill V7 Plus AC High Vacuum Portable Suction Machine remove MIR Spirobank Smart remove Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine remove M.I One ENT Treatment Chair (IC-3000) remove Durable Dental Chair Unit remove

Name Elektro-Mag M20-40 remove Hersill V7 Plus AC High Vacuum Portable Suction Machine remove MIR Spirobank Smart remove Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine remove M.I One ENT Treatment Chair (IC-3000) remove Durable Dental Chair Unit remove


SKU SF103356013089-7 SF1033560450-5 SF10335601297 SF1033560450-6 SF10335601262 SF1033560067

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

Features

100 Watts maximum output power
9 presets
5 operating modes: spray coagulation (fuguration)
Pure and blended cutting modes; bipolar and coagulation
Finger and foot switch operation
High level of patient safety

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

A personal electronic spirometer that connects to the Spirometry app to provide measurement essential parameters. It is ideal for monitoring respiratory illness and in the self-management of Asthma, COPD, Lung Transplant Care, Cystic Fibrosis and for use in clinical trials. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Technical specifications

Working frequency

400 khz

Modulation frequency

30 kHz

Contact COAG

40W

Activation

Dual footswitch and pencil switch

Dimensions (W x D x H)

300mm x 240 mm x 115 mm

Weight

7.5 kg

The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations. Features:

ABS ergonomical case and ancorage system tested to 10 g.
Long life medical grade piston type suction pump. Oil-free and maintenance-free.
Vacuum gauge of 0-100 kPa (0-760 mmHg).
Precise and stable vacuum control knob.
Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
Maximum noise level: 49 + 1,5 dB (depending on model).
Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
Also available with holders compatible with the main disposable canister
Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
ON/OFF swith with moisture protection.
Equipment dimensions: 385 x 155 x 255 mm.

Technical Specifications:

Power supply	Flow rate	Maximum vacuum
V7 ac	220 V_aC 250 W	20 L/min	80 kPa 600 mmHg
V7 dc	12 V_DC 18 W	14 L/min	75 kPa 562 mmHg
V7 plus ac	220 V_AC 120 W	30 L/min	84 kPa 630 mmHg
V7 plus dc	12 V_DC 85 W	30 L/min	84 kPa 630 mmHg
V7 plus b	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 plus b emergency	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 mx	110/240 V_ac 12 V_DC 160 W (AC) / 84 W (DC) Battery	30 L/min	84 kPa 630 mmHg

Click Here To Download Catalogue

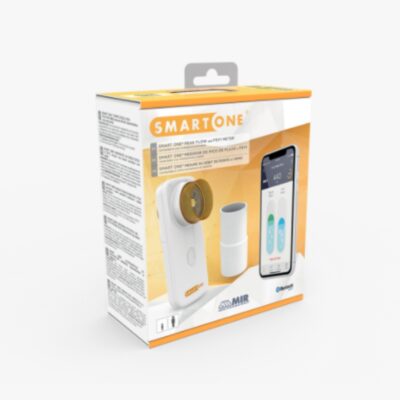

A personal electronic spirometer that connects to the spirometry app to provide measurement essential parameters. It is ideal for monitoring respiratory illness and in the self-management of Asthma, COPD, Lung Transplant Care, Cystic Fibrosis and for use in clinical trials. Features:

Pocket-sized spirometer suitable from 3 to 93 years
The complete inexpensive spirometer is ideal for screening
MIR Spirobank Smart is ideal for monitoring respiratory illness and in the self-management of Asthma, COPD, Lung Transplants care, Cystic Fibrosis and for use in Clinical Trials.
Available with both DISPOSABLE or REUSABLE single patient turbine flowmeter
Ultra-portable
Real-Time test via Bluetooth®
(BLE) connection

MIR Spirobank Smart Technical Specifications • Dimensions: 49x109x21 mm (1,93x4,29x0,82 Inch) • Weight: 60.7 g (Oz. 2.14) (batteries included) • Flowsensors available: Disposable Turbine FlowMIR (code 910004) • Power supply: 2 batteries AAA 1.5 V • Consumption: max 12 mA - Stand by 8 μA medium • Connectivity: Bluetooth® LowEnegry (BLE) 4.0 • Mouthpieces: Ø 30 mm (1.18 inch) • Applied norms: Electrical Safety Standard / EN 60601-1 / Electro Magnetic Compatibility / EN 60601-1-2 / IOS 26782: 2009 /ISO 23747: 2015 ISO 26782 Std (for spirometry parameters) ISO 23747 Std (only for the Peak Flow parameter) ATS/ERS 2005 standards

Click Here To Download Catalogue

ABS ergonomical case and ancorage system tested to 10 g.
Long life medical grade piston type suction pump. Oil-free and maintenance-free.
Vacuum gauge of 0-100 kPa (0-760 mmHg).
Precise and stable vacuum control knob.
Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
Maximum noise level: 49 + 1,5 dB (depending on model).
Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
Also available with holders compatible with the main disposable canister
Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
ON/OFF swith with moisture protection.
Equipment dimensions: 385 x 155 x 255 mm.

Technical Specifications:

Power supply	Flow rate	Maximum vacuum
V7 ac	220 V_aC 250 W	20 L/min	80 kPa 600 mmHg
V7 dc	12 V_DC 18 W	14 L/min	75 kPa 562 mmHg
V7 plus ac	220 V_AC 120 W	30 L/min	84 kPa 630 mmHg
V7 plus dc	12 V_DC 85 W	30 L/min	84 kPa 630 mmHg
V7 plus b	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 plus b emergency	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 mx	110/240 V_ac 12 V_DC 160 W (AC) / 84 W (DC) Battery	30 L/min	84 kPa 630 mmHg

Click Here To Download Catalogue

The IC-3000 ENT treatment chair features electrical height adjustment which is foot controlled, along with adjustable and removable armrests. Other features include 360° rotation (position lock), adjustable backrest from vertical to horizontal position, and an articulated headrest. Features: - Convenient 5 position button Backrest Side Control Button Bottom Memory Button Backrest Rotation Button Backrest Control Button Armrest Turn Control Button - Electrical gear Driven Technical Specifications: Power Source: 220V AC, 50/60Hz Power Consumption: 400W Rotation: 360⁰Electronic Brake system Up-Down Stroke: 300mm + 10%, Lifting Mechanism (Motor Support) Range of Back-Rest Movement: 0~90⁰ Electronic Linear Actuator Headrest: Up/Down By Manual Dimension: W653xD881xH1278 Weight: Approx 120kg Arm-Rest: 0~90⁰ by Manual Foot Switch: Up/Down/Front/Rear Remote Control: Hand Type, Up/Down/Front/Rear/Memory x 2Sit Position Memory x 4

Feature: 1. All controlled by the electric valve 2. DC Motor.(2000N) 3. Automatic thermostatic water supply system 4. Handpiece tubing with standard fittings (3sets), 5.Three way syringe (one for hot, one for cold)(2sets), 6.Water suction and saliva ejector (with switch)(1set), 7. Powerful suction apparatus (1set each) 8. Easy cleaning Integral and turn able toughened glass spittoon 9. Strong and weak dual-purpose operation light (1set), 10. X-film viewer (1 set) 11. Spirit lock tight Equilibrium device 12. Suitable for adult and children headrest. 13. Doctor stool (1set), 14. Foot pedal (1set) Specifications:

Voltage:	110V-240V,50Hz/60Hz
Air pressure:	0.55MPa
Water pressure:	0.2MPa-0.4MPa
Highest position:	860mm
Lowest position:	440mm
Highest smallest:	Angle of dental chair (5)
Lowest smallest:	Angle of dental chair (85)
Width:	52cm
Length:	185cm max
Net weight:	200kg
Gross weight:	250kg
Packing size:	138100120cm

Options Accessories 1.High speed air turbine Handpiece (2sets) 2. Low speed air motor Handpiece. (1 set) 3.Fiber optic system for high speed Handpiece (1set) 4. Fiber optic Handpiece.(2sets) 5.Bui It-in LED Curing Light (1set) 6.Built-in Ultrasonic scaler (1 set) 7.Endoscope equipment (1 set) 8.0il-less medical air compressor (1 set) 9.Vacuum pump for suction (1 set) 10.Massage function (1 set)
