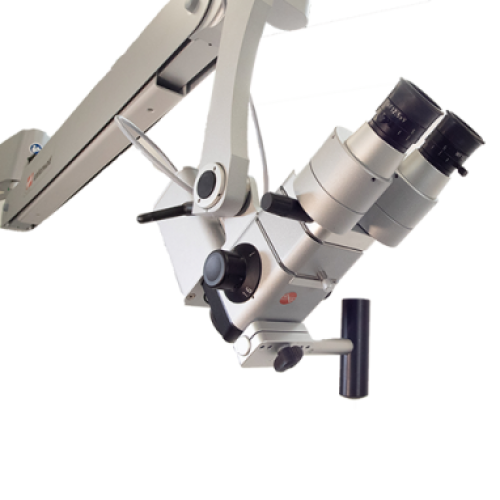

Karl Kaps microscope
$0.00
Shipped From Abroad
Features
- Budget friendly
- Precise and simple handling
- Optimal integration into your practice through wall or ceiling mounting, adaptation for ENT units or roller tripods
- Simple and rapid replacement of the lenses (in 50 mm succession) and of the eyepieces
- Integrated tilt switch
- Direct adaptation of existing endoscopic cameras via endocoupler
- Integrated video system “Vision”
- Adaptation for all standard C-mount cameras
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The economical modern version for ENT practice and minor operations.
Because the illumination unit of the Microscope is integrated into the swivel arm, the Karl Kaps microscope can be mounted on the wall in a space-saving fashion.
Technical specifications
Illumination
Coaxial cold light illumination (15 V / 150 W) with spare bulb LED illumination (optional)
Lenses
Changeable lenses from 200 mm to 400 mm in steps of 50 mm Lens f = 200 mm and f = 250 mm with integrated focusing (14 mm) Kaps Variflex-100 objective lens with a focal length of 220 – 320 mm (optional)
Binocular tubes
Straight tube f = 125 mm or f = 159 mm, inclined tube f = 182 mm 0 – 210° on request

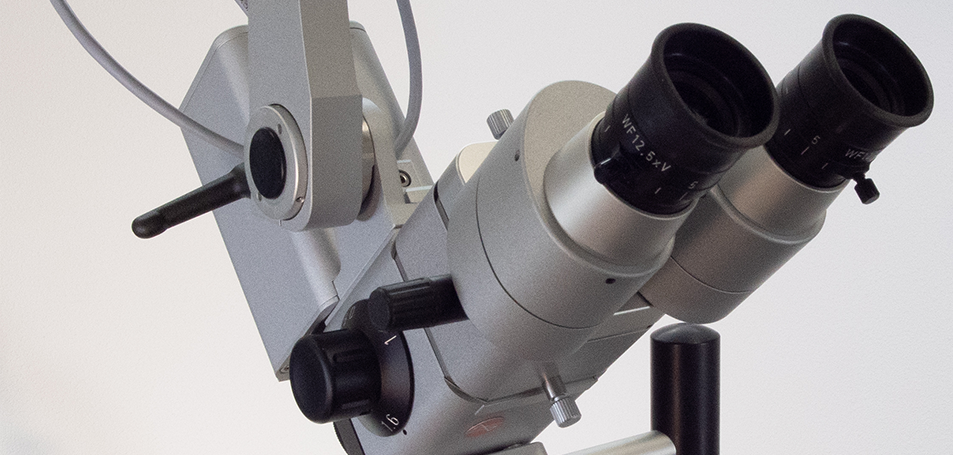

Eyepieces
Eyepieces WF 12.5 x V or WF 10 x V (with diopter adjustment)
Magnification
3-step magnification changer, 5-step magnification changer or manual zoom 1 – 6
Fine focusing
Manual fine focusing 40 mm (optional)
Secondary viewer
Binocular or monocular
Video camera
Adaptation of C-mount video cameras via beam splitter and TV tube
Integrated endoscopic adapter
For direct adaption for existing endoscopic cameras
Iris diaphragm, green filter, spot illumination
Optional
