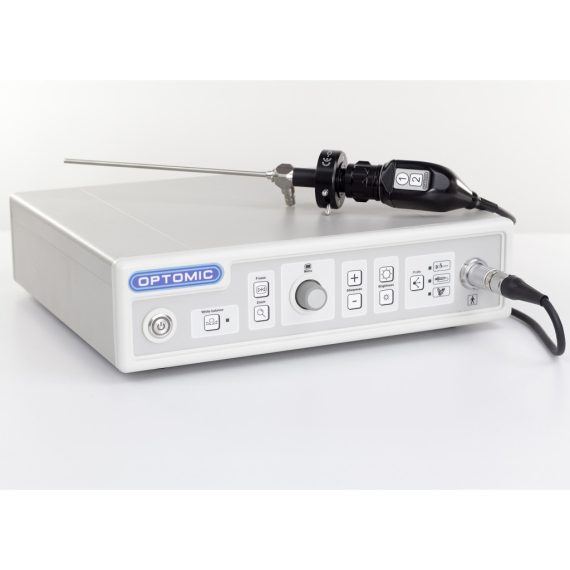

Endoscopy Camera OP-2000 HD

Endoscopy Camera OP-2000 HD

Specifications of the endoscopy camera OP-2000

• Image sensor: 1/3” Full HD MOS
• Video format: 1080/50i
• Resolution: 1920×1080 pixels
• Video output: HDMI x1
• Minimum light sensitivity: 1lux
• White balance: Automatic and manual
• Shutter speed: 1/10.000 // 59,94Hz
• Shutter mode: PEAK / AVERAGE & AREA control
• Gain: Automatic (AGC)
• Scene file: 3 Pre-settings (programmable at Menu)
• Sharpness image: Yes – Controlled by menu and front pannel
• Flip/mirror image: Yes – Controlled by menu
• Freeze function: Yes – Controlled by menu and front pannel
• Anti-moiré filter: Yes – Automatic
• Electric zoom: 1.0x – 1.5x – 2.0x – 2.5x
• On screen display: Yes
• Camera head with
  • 2 programmable buttons (Zoom, Freeze or WB functions)
  • C-Mount coupler
  • Non-conductive and water proof
• Focal distance: F=18mm (optional zoom)
• Universal Endo Coupler for Rigid and Flexible Endoscopes
• Dimensions:
  • Control Unit: 320 x 90 x 290mm
  • Camera Head: 45 x 32 x 56mm
• Weight:
  • Control Unit: 3,4Kg
  • Camera Head: 80gr
• Mains and power: 100-240V˜ // 16VA

Click here to download Catalogue

• 3” TFT LCD screen
• Camera resolution: HD (960 x 720 pixels)
• Easily to capture ear canal and tympanic membrane
• Higher magnification and resolution
• Data transferring with micro USB connection
• 10 languages available per user's preference
• Brightness control
• Camera preview, snapshots, and video recording
• rechargeable and replaceable Li-Ion battery

Minispir Light Specifications

• Minispir Light PC spirometer.
• For essential spirometry.
• Display flow/volume and volume/time curve in real time with before and after comparisons.
• Intuitive use.
• COPD and asthma screening.
• Includes post-medication test.
• Winspiro Light software.
• Export data effortlessly inc. via e-mail.
• With various motivational pictures for children.
• Measured parameters FVC, FEV1, FEV1%, FEV6, PEF, FEF25-75% FIVC, estimated age lungs, VC, IVC.
• USB powered.
• Dimensions: 14.2 x 4.97 x 2.6 cm.
• Weight: 65 g.
• Winspiro Light software.
• Export FVC and VC tests.
• Combined display flow/volume and volume/time curves.
• Displays the three best curves per examination.
• Quality of the tests in the result display.
• Automatic test interpretation (in result display and print).
• Traffic light system shows severity of the obstruction/restriction.

Click Here To Download Catalogue

RZ LED iLumen EndoVue 24"

Features:

• • 1920x1200 (WUXGA), 518x324mm, 16:10
  • 178° viewing angle, 49 W
  • 24 inch TFT LCD (LED)
  • 1920 x 1200 pixel (WUXGA)
  • 2 x DVI-D
  • 1 x SD/HD/3G-SDI (BNC)
  • 2 x SOG
  • 1 x VGA (D-sub)
  • 1 x C-Video (BNC)
  • 1 x S-Video (DIN)
  • 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

• 3-Chip Full HD camera with latest MOS technology for brilliant picture quality
• Pure Natural Colors technology

• best possible picture transmission to medical grade monitors
• 3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
• Full HD 60fps video recording
• Full HD image saving
• USB pen drive included
• Boost function
• On-screen-menu
• 3 user settings storable
• 5x digital zoom

LUMEN LED 1 High Intensity Light Source 180W

Features:

• More than 10.000h lamp lifetime
• Latest PHASER® – Technology
• Waterproof touch control panel
• High color rendering
• High luminance
• Daylight color temperature
• Low noise level
• No UV or IR light
• Low power consumption
• Video-IN terminal - 1 x VHS (BNC)

AIRFLOW A2 INSUFFLATOR

Feature:

• Gas Flow - 20L/min
• User-friendly interface
• Highest safety standard for patients
• Available with CO2 heating system
• Pre-insufflation mode for use with Verres Cannulas
• Non-heating unit features same gasflow rates as heating unit models
• Gas connection - UNF 7/16“ male
• Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

• Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
• Also for extraction of smoke gases that arise when using lasers and HF devices
• Optional footswitch for comfortable operation during surgery
• Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
• Independently digital pre-settings for maximum suction and irrigation pressures
• Digital display of actual suction and irrigation pressures
• High efficiency with rates up to 3L/min
• Color coded tubing sets
• Standby function
• Irrigation Power - 0 - 3.0 ml/min
• Suction Power - 0 - 3.0 ml/min
• Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

• Stable and Powerful Generators,
• Highest patient safety through REM system
• Digital value indicator of chosen power output
• Monopolar and Bipolar applications
• Activation through Hand- or Footswitch
• Safe application through color-coded membrane keypad
• Max output power CUT 200W – 250Ω
• Max output power ENHANCED 120W – 250Ω
• Max output power BLEND120W – 200Ω

• Max output power FORCED COAG 150W – 150Ω
• Max output power SOFT COAG 90W – 100Ω
• Max output power BIPOLAR COAG 80W – 50Ω
• Working frequency 600 kHz
• Patient circuit F
• Mains voltage 115-230 Vac
• Mains frequency 50-60 Hz

HIGH-END TROLLEY

Feature:

• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
• Optional doors and rear panel in order to protect valuable equipment
• Optional main on/off switch

Accessory

• Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
• Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

Click Here To Download Catalogue

Features:

• PC-Spirometer with high user-friendliness
• For a complete airway analysis
• Real time Flow/Volume loops and Volume/time curves with PRE/POST comparison.
• Estimated lung age
• Methacholine and Mannitol provocation test with FEV1 dose-response curve
• Pediatric incentive animations
• With WinspiroPRO high-performance PC software
• Can be used with disposable or reusable turbine

MIR Minispir Technical details

• Size: 14,2 x 4,9 x 2,6cm
• Weight: 65g
• Power supply via USB port
• Measured parameters: FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FET, Vext, lung age estimation, FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, ti, ti / t-tot, VT / ti, MVV

Click Here To Download Catalogue

Spirobank II Basic Features:

• Fast and intuitive to operate with an icon-based navigation menu
• Backlit, high-resolution display
• On screen results and curves preview for immediate data analysis
• Ideal for family doctors, primary care, occupational medicine, screening.
• Estimated Lung Age (ELA) test to assess the benefits from smoking cessation
• Traffic lights for immediate test interpretation
• Rechargeable, long-life battery (~ 40 hours continous operation)
• Real-time tests via USB (Bluetooth optional)
• Memory up to 10,000 tests
• The tests are analyzed directly on the display without having to connect to a computer.
• Internal temperature  and pressure sensor for automatic correction
• Never requires calibration when using disposable turbines
