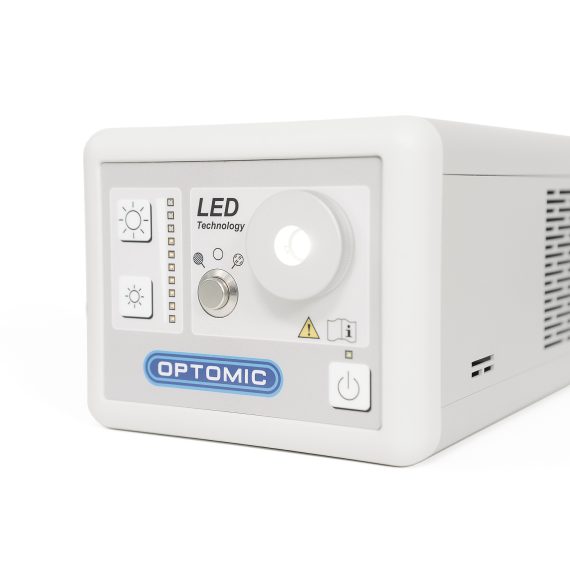

Fibrolux LED HP Endoscopy Light

Technical features of this light source for endoscopy

Click here to download Catalogue

Minispir Light Specifications

• Minispir Light PC spirometer.
• For essential spirometry.
• Display flow/volume and volume/time curve in real time with before and after comparisons.
• Intuitive use.
• COPD and asthma screening.
• Includes post-medication test.
• Winspiro Light software.
• Export data effortlessly inc. via e-mail.
• With various motivational pictures for children.
• Measured parameters FVC, FEV1, FEV1%, FEV6, PEF, FEF25-75% FIVC, estimated age lungs, VC, IVC.
• USB powered.
• Dimensions: 14.2 x 4.97 x 2.6 cm.
• Weight: 65 g.
• Winspiro Light software.
• Export FVC and VC tests.
• Combined display flow/volume and volume/time curves.
• Displays the three best curves per examination.
• Quality of the tests in the result display.
• Automatic test interpretation (in result display and print).
• Traffic light system shows severity of the obstruction/restriction.

Click Here To Download Catalogue

• ABS ergonomical case and ancorage system tested to 10 g.
• Long life medical grade piston type suction pump. Oil-free and maintenance-free.
• Vacuum gauge of 0-100 kPa (0-760 mmHg).
• Precise and stable vacuum control knob.
• Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
• Maximum noise level: 49 + 1,5 dB (depending on model).
• Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
• Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
• Also available with holders compatible with the main disposable canister
• Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
• ON/OFF swith with moisture protection.
• Equipment dimensions: 385 x 155 x 255 mm.

Click Here To Download Catalogue

RZ LED iLumen EndoVue 24"

Features:

• • 1920x1200 (WUXGA), 518x324mm, 16:10
  • 178° viewing angle, 49 W
  • 24 inch TFT LCD (LED)
  • 1920 x 1200 pixel (WUXGA)
  • 2 x DVI-D
  • 1 x SD/HD/3G-SDI (BNC)
  • 2 x SOG
  • 1 x VGA (D-sub)
  • 1 x C-Video (BNC)
  • 1 x S-Video (DIN)
  • 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

• 3-Chip Full HD camera with latest MOS technology for brilliant picture quality
• Pure Natural Colors technology

• best possible picture transmission to medical grade monitors
• 3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
• Full HD 60fps video recording
• Full HD image saving
• USB pen drive included
• Boost function
• On-screen-menu
• 3 user settings storable
• 5x digital zoom

LUMEN LED 1 High Intensity Light Source 180W

Features:

• More than 10.000h lamp lifetime
• Latest PHASER® – Technology
• Waterproof touch control panel
• High color rendering
• High luminance
• Daylight color temperature
• Low noise level
• No UV or IR light
• Low power consumption
• Video-IN terminal - 1 x VHS (BNC)

AIRFLOW A2 INSUFFLATOR

Feature:

• Gas Flow - 20L/min
• User-friendly interface
• Highest safety standard for patients
• Available with CO2 heating system
• Pre-insufflation mode for use with Verres Cannulas
• Non-heating unit features same gasflow rates as heating unit models
• Gas connection - UNF 7/16“ male
• Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

• Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
• Also for extraction of smoke gases that arise when using lasers and HF devices
• Optional footswitch for comfortable operation during surgery
• Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
• Independently digital pre-settings for maximum suction and irrigation pressures
• Digital display of actual suction and irrigation pressures
• High efficiency with rates up to 3L/min
• Color coded tubing sets
• Standby function
• Irrigation Power - 0 - 3.0 ml/min
• Suction Power - 0 - 3.0 ml/min
• Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

• Stable and Powerful Generators,
• Highest patient safety through REM system
• Digital value indicator of chosen power output
• Monopolar and Bipolar applications
• Activation through Hand- or Footswitch
• Safe application through color-coded membrane keypad
• Max output power CUT 200W – 250Ω
• Max output power ENHANCED 120W – 250Ω
• Max output power BLEND120W – 200Ω

• Max output power FORCED COAG 150W – 150Ω
• Max output power SOFT COAG 90W – 100Ω
• Max output power BIPOLAR COAG 80W – 50Ω
• Working frequency 600 kHz
• Patient circuit F
• Mains voltage 115-230 Vac
• Mains frequency 50-60 Hz

HIGH-END TROLLEY

Feature:

• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
• Optional doors and rear panel in order to protect valuable equipment
• Optional main on/off switch

Accessory

• Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
• Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit
