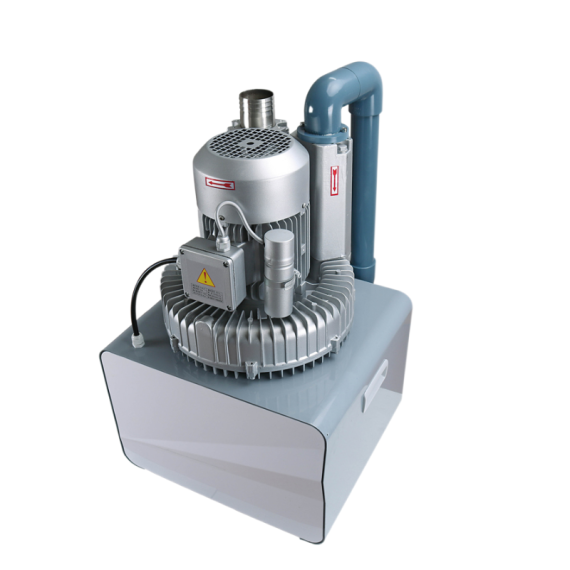

FM-1100X Central Suction Machine

The FM-1100X Central Suction Machine is engineered to meet the demands of modern dental clinics, offering powerful suction for up to seven chairs simultaneously. Its oil-free, dry pumping system ensures a hygienic environment by preventing cross-contamination and conserving water resources. With a robust 1500W motor, it delivers a suction volume of 1200 L/min and maintains a negative pressure of ≥1.7 kPa, effectively removing fluids and debris during procedures. Operating at a low noise level of 65–70 dB, it contributes to a comfortable setting for both patients and staff. The unit's advanced filtration system, featuring a metal mesh filter and quick-release interface, simplifies maintenance, making the FM-1100X a reliable and efficient choice for dental practices.

Key Features

• Supports Up to Seven Dental Chairs: Efficiently manages suction for multiple chairs, optimizing clinic workflow.

• High Suction Capacity: Delivers a suction volume of 1200 L/min with a negative pressure of ≥1.7 kPa, ensuring effective fluid removal.

• Quiet Operation: Operates at a noise level between 65–70 dB, maintaining a serene clinical atmosphere.

• Oil-Free, Dry Pumping System: Eliminates water resource loss and reduces maintenance needs.

• Advanced Filtration: Equipped with a metal mesh filter and quick-release interface for easy cleaning and maintenance.

• Durable Construction: Features a high-quality, silent motor and metal air pipes for stable, long-lasting performance.

Specifications

This system brings advanced panoramic diagnostics into a modern dental practice environment. Equipped with a linear CMOS flat-panel sensor, dynamic automatic image-focusing, integrated touchscreen, and ergonomic patient positioning, the device supports a range of panoramic programmes (adult, child, sinuses, TMJ, bitewing) and optional one-shot cephalometric imaging. With a clean, minimalist design and upgrade pathways, it fits clinics where space is limited but quality cannot be compromised.

Product Features

• Dedicated linear sensor for the best image quality.

• Ambient lighting creates a comfortable atmosphere for the patient and allows for monitoring the unit status from a distance.

• Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

• Latest sensor design, technology, and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Technical Specifications

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 - 86 kV
Tube Current	2.5 - 10 mA
Exposure time 2D	4.6 - 14.2 seconds
Exposure Time Ceph One-Shot	0,5s adult, 0,2s child
Ceph Image Size	240x300 mm
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
Ceph Programs	LL 30x24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	OrisWin DG Suite
Features	Panoramic, panoramic upgradable to 3D and ceph, panoramic with ceph upgradable to 3D.
Footprint	140x110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes

Technical Drawing

Click here to download Catalogue

• Packing quantity: 50PCS/bag
• Non woven face mask is made of spun bonded non woven fabric and melt-blown non woven fabric
• It can be used in protect face from the dust,water and bacteria
• Layer construction: With multi-layered non-poisonous, non-allergic, non-stimulating materials
• Suitable for personal daily health protection:The masks are designed to keep away smoke, debris, residue and dusts from you needed by Cleaner, Builder, Farmer, Student. gardening, painting, construction, nail salons, medical, dental uses and people with allergies

Product Features

• Obtain the most appropriate exposure setting by selecting among 2 patient sizes, 9 programs and 3 detectors. Optional DAP available.

• Available as a mobile and wall-mounted version. Four different extension arm lengths and possibility to place the timer remotely, for even greater installation freedom and ease of use.

• Get the image information you are looking for. Select the voltage 60 kV for perio application to reveal statement of ligaments or 70 kV for endo to see more hard tissue contours.

Technical Specifications

• Choose among 4 different extension arm lengths to make your intraoral unit perfectly fit into your dental studio. You can select standard 30 cm, 60 cm or 80 cm and optional 100 cm arm.
• Xline’s rectangular beam limiting device (2x3cm or 3x4cm) permits significant dose reduction.
• The mobile version is the ideal choice for dental clinics looking for maximum operational flexibility.
• 20/21 cm standard or 30 cm optional collimator available.
• With a cable length of 10 m, the remote hand switch is easy to mount where needed.

Technical Drawing

Click here to download Catalogue

• Simple pencil type grip for easy use and accurate application
• A broad range of applicators
• Freezing temperature
  • Liquid freezing, -89°C / -128°C
  • Contact freezing, -80°C / -112°C
• The level of cold generated is adjusted by the rate at which the metering lever is depressed
• CE marked according to Medical Device II

Product Features

Technical Specifications
