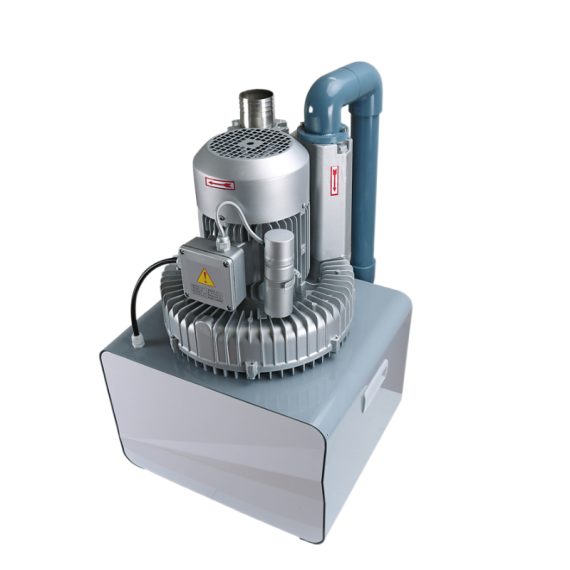

FM-750L Central Suction Machine

Features

• Dual Chair Support: Capable of servicing two dental chairs simultaneously.

• Quiet Operation: Operates at a noise level between 45–50 dB, ensuring a comfortable environment.

• High Suction Capacity: Delivers a suction volume of 400 L/min with a negative pressure of ≥1.1 kPa.

• Energy Efficient: Powered by a 550W motor, balancing performance and energy consumption.

• Versatile Voltage Compatibility: Supports both 220V 50Hz and 110V 60Hz power supplies.

Advantages

• Supports Two Dental Chairs
  Efficiently handles suction for up to two chairs simultaneously, ideal for small to mid-sized clinics.
• Quiet Operation (45–50 dB)
  Maintains a peaceful clinical atmosphere, reducing stress for both patients and staff.
• High Suction Capacity
  With 400 L/min flow and ≥1.1 kPa negative pressure, it ensures effective and continuous fluid removal.
• Energy Efficient Motor (550W)
  Balances strong performance with low energy consumption, saving on operational costs.
• Compact and Centralized
  Frees up space in treatment rooms by operating as a centralized suction source.
• Dual Voltage Compatibility
  Operates on both 220V and 110V systems, suitable for international setups or variable power environments.
• Low Maintenance
  Designed for consistent operation with minimal servicing, reducing downtime.
• Durable Construction
  Built to withstand daily clinical use and deliver long-term performance.

Specifications

1. The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
2. The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
3. Fitted with 70KV 8mA tube with preheating grid, the machine has been specially designed for intraoral dental diagnosis applications.

This system brings advanced panoramic diagnostics into a modern dental practice environment. Equipped with a linear CMOS flat-panel sensor, dynamic automatic image-focusing, integrated touchscreen, and ergonomic patient positioning, the device supports a range of panoramic programmes (adult, child, sinuses, TMJ, bitewing) and optional one-shot cephalometric imaging. With a clean, minimalist design and upgrade pathways, it fits clinics where space is limited but quality cannot be compromised.

Product Features

• Dedicated linear sensor for the best image quality.

• Ambient lighting creates a comfortable atmosphere for the patient and allows for monitoring the unit status from a distance.

• Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

• Latest sensor design, technology, and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Technical Specifications

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 - 86 kV
Tube Current	2.5 - 10 mA
Exposure time 2D	4.6 - 14.2 seconds
Exposure Time Ceph One-Shot	0,5s adult, 0,2s child
Ceph Image Size	240x300 mm
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
Ceph Programs	LL 30x24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	OrisWin DG Suite
Features	Panoramic, panoramic upgradable to 3D and ceph, panoramic with ceph upgradable to 3D.
Footprint	140x110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes

Technical Drawing
