High Pressure Oxygen..._imresizer (1)

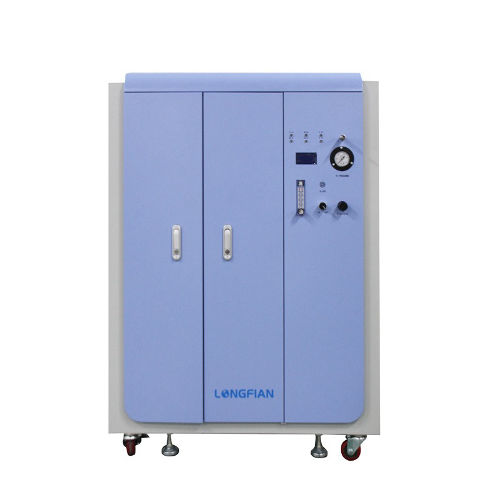

High Pressure Oxygen Concentrator

Brands: Longfian

~~$0.00~~

Shipped From Abroad

This international oxygen concentrator is suitable for a wide range of clinical settings, including small hospitals, home care, and other medical facilities. Its robust design and high-pressure output make it an ideal choice for applications that demand higher oxygen delivery pressures.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130188-16

Brands:: Longfian

Description
Reviews (0)

Description

Features

High pressure oxygen concentrator for small hospitals
Manufactured by Longfian Scitech Co., Ltd.
Thomas compressor for reliable performance
High efficiency three-tower adsorption system for durability
Pressure gauge on site for flexible adjustment
Small and compact design for easy movement during emergencies
Automatic dehydrator/refrigerated air dryer included
Available models: JAY-10-4.0, JAY-15-4.0, JAY-20-4.0
Flow rate options: 1-10L/min, 1-15L/min, 1-20L/min
Oxygen purity of 93% (+3%)
Outlet pressure range: 20-60 PSI (0.14-0.4Mpa)
Low sound level of ≤ 50dB
Net weight: 90kg (JAY-10-4.0), 118kg (JAY-15-4.0)
Power consumption: ≤ 1250W (JAY-10-4.0), ≤ 2000W (JAY-15-4.0, JAY-20-4.0)
Input frequency options: 50Hz; 60 Hz
Input voltage options: AC 230V±10%, AC 110V ±10%
