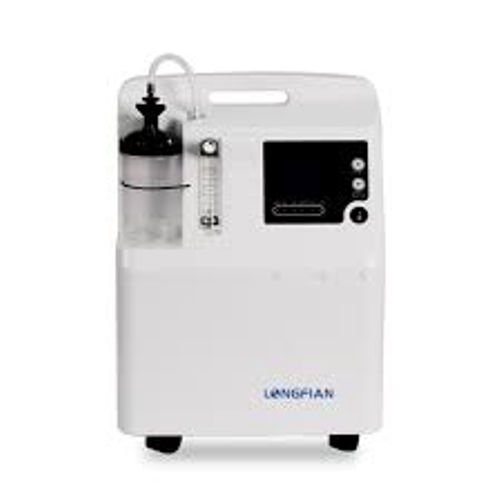

JAY-3AW & JAY-5AW Stationary Oxygen Concentrators (3L & 5L)

The JAY-3AW and JAY-5AW are robust oxygen concentrators designed for continuous use. With flow rates of 3L/min and 5L/min, they deliver oxygen at a concentration of 93% (±3%). Their innovative cooling systems ensure reliable 24/7 operation, making them suitable for both home and clinical environments.​

Key features include:

• User-Friendly Interface: Simple controls with an easy-to-read LCD display.

• Mobility: Four flexible castors with two brakes for easy movement and secure positioning.

• Safety Features: Humidifier bottle with a 6PSI pressure relief valve, and alarms for power failure, high/low pressure, and low oxygen concentration.​

These models are compatible with High-Flow Nasal Cannula (HFNC), Hyperbaric Oxygen Chambers (HBOC), and BIPAP systems, enhancing their versatility in oxygen therapy applications. ​

The JAY-20-4.0 high-pressure oxygen concentrator is engineered for medical environments that demand higher oxygen flow rates. Delivering 1 to 20 L/min at an outlet pressure of 20–60 PSI (0.14–0.4 MPa), this unit ensures a steady and pure oxygen supply with a concentration of 93% (±3%). Its durable construction and advanced features support continuous operation in demanding settings such as intensive care units and operating rooms.

Key Features

• Flow Rate: 1–20 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤2200W
• Sound Level: ≤60 dB
• Net Weight: 118 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers

The Longfian JAY-1000 is a lightweight and compact portable oxygen concentrator designed for individuals requiring supplemental oxygen therapy on the go. Weighing only 1.5 kg and measuring 193×83×173 mm, it offers enhanced mobility without compromising performance.​

Equipped with pulse dose delivery, the JAY-1000 provides oxygen flow settings from 1 to 5, ensuring efficient oxygen delivery tailored to the user's needs. It delivers medical-grade oxygen at a concentration of 93% ± 3%, supporting optimal respiratory function.​medzell.net

The device features an easy-to-remove external battery with a duration of up to 3 hours, allowing users to maintain their active lifestyles without interruption. Its user-friendly interface and comfortable shoulder bag enhance usability and portability.​

Key Features:

• Pulse Dose Delivery: Five flow settings (1–5) for personalized oxygen therapy.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Lightweight Design: Only 1.5 kg for enhanced mobility.
• Compact Dimensions: 193×83×173 mm for easy transport.
• Battery Life: Up to 3 hours of operation.
• User-Friendly Interface: Simple controls for ease of use.
• Portability: Includes a strong, comfortable shoulder bag.

The Longfian Continuous Flow Portable Oxygen Concentrator is engineered for patients requiring a steady and uninterrupted oxygen supply. With a flow rate ranging from 1 to 7 L/min and an oxygen concentration of 93% ± 3%, it ensures consistent and effective oxygen therapy.​

Weighing 6 kg and measuring 220×280×310 mm, this device is suitable for both home and travel use. It features a robust design with an outlet pressure of 6–10 PSI, accommodating various respiratory needs. The concentrator operates on AC power and offers optional DC power supplies for in-car use, enhancing its versatility.

Key Features:

• Continuous Flow Delivery: Adjustable flow rate from 1 to 7 L/min.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Robust Design: 6 kg weight and 220×280×310 mm dimensions for stability.
• Outlet Pressure: 6–10 PSI to meet various therapeutic needs.
• Versatile Power Options: Compatible with AC and optional DC power supplies.
• Safety Features: Equipped with alarms and safety mechanisms for patient well-being.

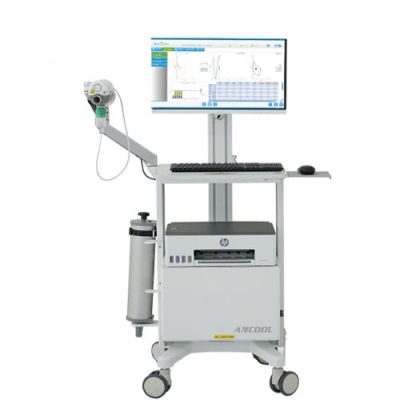

Features

• Individual dosage of the provocation material

• All-in-one measurement, high automation

Main Function

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal breathing analysis, MVV)
• Bronchial dilation test （pre/post dilator)
• Bronchial provocation test

Features

• ✔ Precise DLco Measurement: Accurately assesses lung diffusion capacity for CO (carbon monoxide) to evaluate gas exchange efficiency.
• Advanced Sensor Technology: High-precision sensors ensure reliable and reproducible pulmonary function test results.
• User-Friendly Interface: Intuitive software for easy operation, data analysis, and report generation.
• Compact & Portable Design: Lightweight and ergonomically designed for clinical and research applications.
• Automated Calibration: Ensures consistent accuracy and minimal operator intervention.
• Multi-Parameter Analysis: Measures DLco, lung volumes, and additional respiratory parameters for comprehensive lung function assessment.
• Compliance with Global Standards: Meets ATS/ERS guidelines for pulmonary function testing.
• Patient-Friendly Testing: Fast and comfortable procedures, suitable for all age groups.
• Rapid digital NDIR gas analyzer
• Fast and reliable evaluation of the diffusion capacity
• Unique blocking valve design, Intelligent Demand Valve
• Easy and quick gas administration, no more complicated breathing line design
• ATS/ERS recommended standard test gas mixture
• 0.3% Carbon Monoxide (CO) + 0.3%CH4 +21% Oxygen (O2) , remainder Nitrogen(N2)

Main Functions

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal FVL, MVV)
• Bronchial dilation test pre/post dilator)
• Bronchial provocation test (without hardware)
