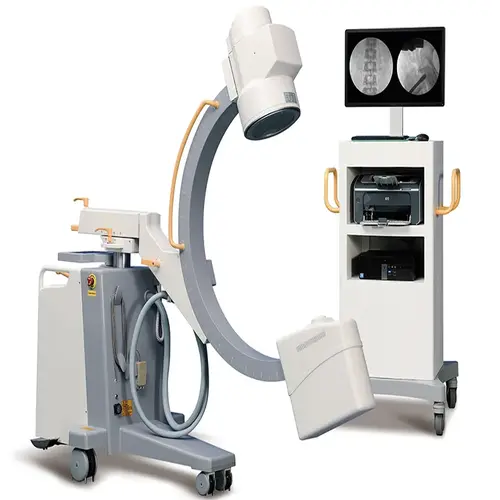

Image Intensifier C-Arm Machine

Brands: Shoimage

~~$0.00~~

The image intensifier C-arm machine gives you stable, high-quality imaging while minimizing radiation exposure.

Shipped From China

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Shoimage

Description
Reviews (0)

Description

With pulse and boost fluoroscopy, you get sharp, detailed imaging for precise diagnoses and surgical accuracy. The steering handle allows quick directional adjustments and smooth movement, while the line-blocking wheel prevents accidental shifts for added safety. A large 800mm arc space gives you more room to maneuver during procedures.

Designed for efficiency and flexibility, this system features triple-field imaging (9-inch, 6-inch, 4.5-inch) for better local diagnostics and a 360-degree rotating CCD camera for comprehensive imaging. The Korean linear guide rails ensure smooth mobility, and Omron relays reduce noise and extend the machine’s lifespan.

Specifications

HF generator
120 kV, 5 kW, 40 kHz

Fluoroscopy mode

Fluoroscopy mode 40-120 kV 0.5-5 mA (kV manual and automatic);
Pulsed fluoroscopy 40-120 kV 0,5-5 mA
Boost fluoroscopy 40-120 kV 5-10 mA
Photography 40-120 kV 1-250 mAs

X ray tube

Dual-focus fixed anode: 0.3 mm / 0.6 mm
Italy IMD Technology

Image intensifier
Three fields of vision 9, 6, 4.5 Japan Canon Brand

CCD camera
Japanese Watt Brand, 360° rotation

Image system

5 Degree recursive Noise Reduction
Frame freezing
Thousands of image data storage
Image conversing and rotating
Screen display with image comparison
Support “one click” print, print the image report
Equip with Dicom 3.0 network port(optional)
Support Dicom 3.0standard data export function

Mechanical motion specifications

Vertical travel: 0-400 mm
Horizontal travel: 0-200 mm
Rotation about horizontal axis: ±180°

C-arm dimension

Distance of focal spot to image generator (SID): 1000mm
Depth in arm ≥ 650 mm Mobile stand: 1800×800×1850 mm
Image system: 750×530×1680 mm

Standard configuration

High resolution CCD camera: 1set
X-ray generator: 1set
9” image intensifier: 1 set
Image processor
Dell brand 24” LCD high definition display 1 set
Mobile stand: 1 set

Reviews

There are no reviews yet.

Be the first to review “Image Intensifier C-Arm Machine”
