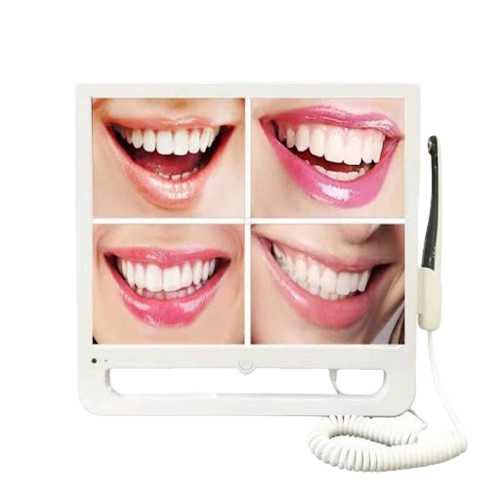

Intra-oral Camera J003

Key Features of Appledental J003 Intraoral Camera

• Multifunctional Capture: Supports both single-image and quad-view (1 & 4 pictures) capture for flexible diagnostic imaging.

• High Resolution Sensor: Utilizes a Sony CCD sensor with 12 megapixel resolution for crystal-clear dental imaging.

• Durable Processing: Built around Huawei Hisilicon chipset for robust performance and reliability.

• Quick Connectivity: Features fast-plug connectors for effortless setup and integration.

• Built-in Storage: Includes 8 GB of internal memory with capability to back up photos to a USB disk.

• Versatile Interfaces: Offers both HDMI and USB interfaces for real-time display and data transfer.

• LED Illumination: Equipped with six LEDs (with diffuser) to ensure even, glare-free lighting.

• Focal Flexibility: Features a 3–50 mm focal length with auto-focus capability for sharp imaging at varying distances.

Specifications

• Image Sensor : 12 megapixel high-resolution Sony CCD

• Processor Chip: Huawei Hisilicon

• Capture Modes: Supports both single-image and quad-view (1 & 4 pictures)

• Storage: 8 GB built-in, saves images to USB disk

• Connectivity: HDMI + USB fast-plug connectors

• Illumination: 6 LEDs (with grass cover)

• Physical Dimensions:

  • Gross Weight: ~6 kg (includes monitor, not handheld unit)

  • Monitor: 38 × 37 × 2 cm

  • LCD Clamp: 34 × 27 × 2 cm

  • Package Size: 57.1 × 41.9 × 11.8 cm

Click Here To Download Catalogue

Product Features

Technical Specifications

Click here to download Catalogue

• FreeFill - the newest filling system for liquid Denut's gutta-percha.
• Wireless - minimizing the time and materials needed to fill the channel.
• The use of the device ensures the highest quality and precision in filling the ducts.
• Wireless device 3-dimensional obturation system.
• Fantastic combination of filling with the method of vertical compaction.
• Provides excellent hermetic sealing of the root canal.
• Together, the entire main channel and side channels are filled.
• Excellent control of the honing part and filling of anatomically complex channels.
• Two mobile systems in one device (hot plugger and obturator).
• The obturator cover can be sterilized in an autoclave.
• The device is covered by the manufacturer's one-year warranty (application tips and tips for the plugger are consumable - they are not covered by the warranty).
• Technical data - charging system and batteries:
  • operating voltage - DC 3.7 V,
  • input adapter - AC 100 - 240 V, 50/60 Hz,
  • output - DC 7.5 V, 2.5 A,
  • indicator indicating the status of charging / charging,
  • time to full charge - about 1 hour,
  • two power supplies included.

• Gun - Obturation Gun:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time with continuous use of the gun - about 120 minutes (when the battery is fully charged),
  • automatic shutdown after 5 minutes of non-use (battery saving),
  • automatic shut-off after 15 minutes of continuous operation (prevents burning of the heater),
  • ECO system (energy-saving) - temperature maintained at 1200C in order to warm up to a given temperature faster,
  • induction switch placed in the handle - switches the heating on / off depending on whether the device is held in hand or not,
  • the possibility of setting the needle in any direction (once the bent needle can be used to fill the lower or upper one).

• Plugger - obturation pen:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time for continuous use of the plug - 60 minutes (when the battery is fully charged),
  • 3600 power button,
  • 6 directions of injection tips setting,
  • automatic shutdown after 5 minutes,
  • information about proper connection of the needle,
  • information about the damaged needle.

• Set contains:
  • gun - obturation gun - 1 piece,
  • gun stand with built-in charger - stand for gun - 1 piece,
  • plugger - obturation pen - 1 piece,
  • stand for plugger with built-in charger - stand for pen - 1 piece,
  • injection needles - gun needle - 3 pieces,
  • pen tip - pen tip - 4 pieces,
  • the key for injection needles - adapter - 1 piece,
  • pusher for hot gutta-percha - 2 pieces,
  • thermal casings - heat insulator - 2 pieces,
  • cleaning brush - brush - 1 piece,
  • power supply - 2 pieces,
  • gutta-percha - 20 pieces,
  • instruction - 1 piece.

• There is a possibility to buy tips for the plugger:
  • set - 4 sizes after the play,
  • size F - white (thin),
  • FM size - yellow,
  • size M - red,
  • ML size - black.

1. The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
2. The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
3. Fitted with 70KV 8mA tube with preheating grid, the machine has been specially designed for intraoral dental diagnosis applications.
