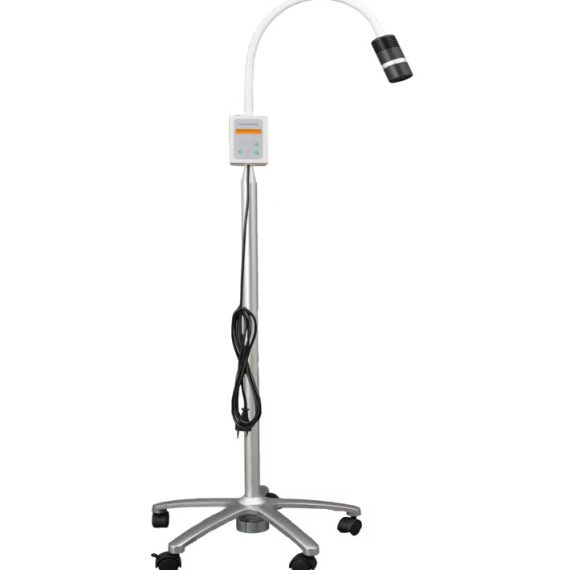

JSF-JCA03 Examination Lamp

Product Features

Technical parameters:

Examination Lamps are designed for Medical examination and interventions by different connections and movement options.

• Advanced LED technology to fulfill lighting requirement of any kind of surgery and examination.
• Well-focused lighting with LED bulbs connected to specially developed reflector.
• Technology not requiring maintenance during the lifetime of bulb.

• Head can be positioned in required area and can be rotated 360-degree thanks to its spiral body structure.
• Modern and stylish design.

• Cleaning and disinfection solution-proof flat and smooth surfaces.

• Tailor-made solutions with mobile and rail type options

Click Here To Download Catalogue

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch

Click Here To Download Catalogue

Mobile operating light features high LED technology to fulfill the lighting requirements of any kind of operation and allows for maximum lighting level by a single button. Its battery system runs automatically in case of electricity failure and provides continuous energy for 2.5 hours, while its multi-functional control panel allows for monitoring of battery status and adjusting lamp functions.

• Battery system running automatically in case of electricity failure and providing continuous energy for 2,5 hours (LD-5MB).
• Multi-functional control panel for monitoring battery status and adjusting lamp functions.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.

LCD colour touchscreen control panel controlling all functions

Main Lightheads (×1)

• Diameter of light head: Ø440 mm

• Illumination power, in 1 m: 120.000 Lux

• Color temperature: 3500 K – 5000 K

• Color rendering index, Ra CRI:96%

• Dimming Range: % 1 – 100

• Adjustable focus diameter:120 – 300 mm

• Temperature increase in surgical area:< 0,5°C

• Number of LED modules:28

• Lifetime of LED:50.000 hour

• IP: IP 54

Click Here To Download Catalogue

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm (Main Lighthead x1), Ø440 mm (Satellite Lighthead x1)
• Illumination power, in 1 m: 160.000 Lux (Main Lighthead x1 and 120.000 Lux(Satellite Lighthead x1)
• Color temperature: 3500 K - 5000 K(Main Lighthead x1) and 3500 K - 5000 K(Satellite Lighthead x1)
• Color rendering index, Ra CRI: 96% (Main Lighthead x1) and 96%(Satellite Lighthead x1)
• Dimming Range: % 1 – 100(Main Lighthead x1) and % 1 – 100(Satellite Lighthead x1)
• Adjustable focus diameter: 120 – 300 mm(Main Lighthead x1) and 120 – 300 mm(Satellite Lighthead x1)
• Temperature increase in surgical area: < 0,5°C(Main Lighthead x1) and < 0,5°C(Satellite Lighthead x1)
• Number of LED modules: 68(Main Lighthead x1) and 28(Satellite Lighthead x1)
• Lifetime of LED: 50.000 hour(Main Lighthead x1) and 50.000 hour(Satellite Lighthead x1)
• IP: IP 54(Main Lighthead x1) and IP 54(Satellite Lighthead x1)
