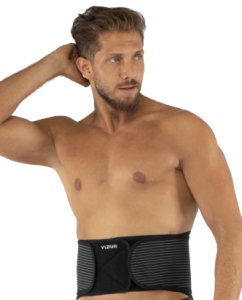

Lumbomax Comfort

• Made of elastic and breathable fabric that supports the back and waist.
• There are four plastic supports that fit the anatomical structure on the back.
• The extra belt that comes from the back to the waist allows for pressure adjustment.
• It supports the back muscles and spine, giving a sense of relief

• Vehicle loadable
• Wheel lock
• Automatic tube arm lock at any angle
• Storage space for cassettes or detectors
• User Programmable APR, save up to 9 APR settings
• Three way X-ray exposure
• USB interface & Bluetooth
• Remote control (Option)
• 5kg including X-ray unit, collimator and stand
• Maximum hight of 228.6cm
• Exposure Hand Switch
• Foldable, two-step stand

• Power Rating - 4kW,
• 100kHz, high frequency X-ray Generator
• kVp Range - Maximum 140kVp
• mAs Range - 0.1-250mAs
• mA Range – 10 to 100mA
• 330~2000mm FD
• Collimator with 30 seconds LED lamp timer

Click Here To Download Catalogue

Fluoroscopy Powerful, Light and Versatile Performance with the 9″ high-resolution image intensifier and million pixel (1K x 1K) high-definition camera, the Zen-7000 supports clear images without distortion to provide the best diagnostic imaging environment possible.

• 9" or 12” image intensifier
• 1K x 1K High resolution CCD Camera
• Wide FOV (Field-of-View)
• Low Dose, Low Noise
• High-Definition
• High Contrast
• Rotating Anode Tube

• Low Dose Mode
• Auto / Virtual Collimator

• Lightweight Architecture
• Intelligent operation
• Compact, Hybrid Body
• 7" Touch Screen LCD Monitor

• Image Management

• DICOM 3.0
• Database Management
• Approved Format

• High Performance

Click Here To Download Catalogue

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA: Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1. V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.
