Oxygen Generator/Plant

Brands: Linair

~~$0.00~~

Shipped From Abroad

Delivery & Availability:
Typically, 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013076

Tags:

best selling / Deals of the day / Oxygen Generator/Plant

Brands:: Linair

Description
Reviews (0)

Description

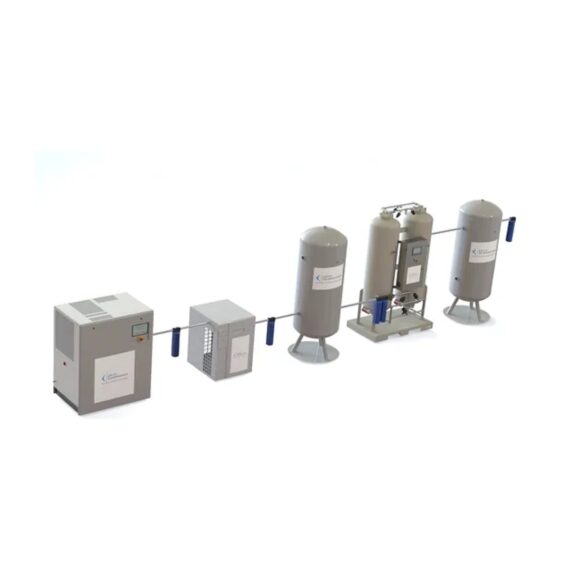

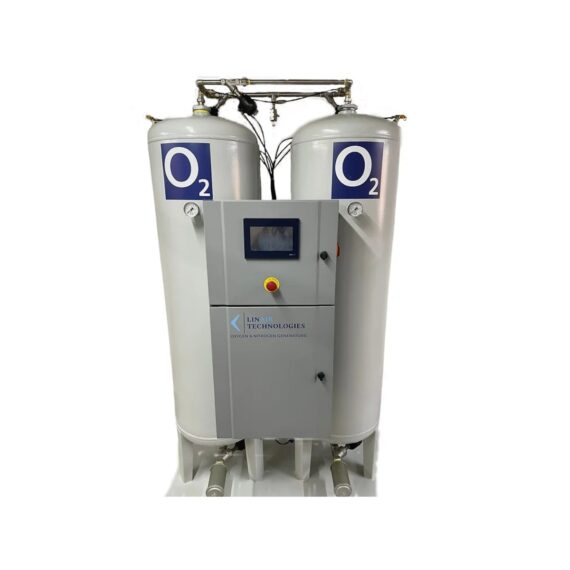

PSA Medical & Industrıal oxygen generator systems produce gas oxygen from compressed air from the field where they work and switch compatible to conventional oxygen gas source such as tubes or cryogenic liqiud.

OXYGEN PURITY – PSA oxygen generators, continuously 90-95% purity oxygen produces.

OXYGEN FLOW – LINAIR TECHNOLOGIES manufactures oxygen generators with capacities from 1 Nm3/h to 1000 Nm3/h.

OXYGEN OUTLET PRESSURE – Oxygen generators produces 4-6 bar oxygen.

ADVANTAGES OF OXYGEN GENERATORS/Plant

Consistently high purity guaranteed.
Oxygen production according to your needs 24/7.
Purity control of instantaneously produced oxygen.
Instant monitoring of parameters such as purity, pressure, flow rate on the screen.
No need for an extra operator since it works fully automatically.

Reviews

There are no reviews yet.

Be the first to review “Oxygen Generator/Plant”

Quick Comparison

Oxygen Generator/Plant remove Medical Waste Incinerator (Capacity - 100Kg) remove Kick About remove Siare Morpheus E Anaesthetic Machine remove SIGNERS SUPiA X-ray Digitizer ( CR Scanner) remove Syringe Needle Destroyer remove

Name Oxygen Generator/Plant remove Medical Waste Incinerator (Capacity - 100Kg) remove Kick About remove Siare Morpheus E Anaesthetic Machine remove SIGNERS SUPiA X-ray Digitizer ( CR Scanner) remove Syringe Needle Destroyer remove


SKU SF103356013076 SF1033560084-254 SF1033560084-238 SF1033560101-1 SF1033560050-01 SF1033560084-206

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

PSA Medical & Industrial oxygen generator systems produce gas oxygen from compressed air from the field where they work and switch compatible to conventional oxygen gas source such as tubes or cryogenic liquid. Delivery & Availability: Typically, 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad The product is mainly suitable for solid medical waste (including pollution), waste plastic and rubber etc,at high temperatures they can be divided into organic compounds. We can offer all kinds of waste incinerator for industrial waste, medical waste, chemical waste and daily waste at any capacity.

Delivery & Availability: Typically 60 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Supplied with one 35 cms. dia. S.S. Basin.
Stainless steel pipe construction mounted on three 10 cms. dia. castors.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The MORPHEUS E is an anaesthesia machine with electronic flowmeters and it can be used on adult, children and newborn patients. The MORPHEUS M is suitable for administration of Oxygen – Air – Nitrous Oxide – Halothane – Enflurane – Isoflurane – Sevoflurane – Desflurane mixtures. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad SUPiA made by Signers offers such a better clinic environment with no chemicals, ideal space, high-resolution image quality, and affordability.

Delivery & Availability:

Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock Needle destruction destroy the needle immediately following its use. Needle destruction are an absolute necessity in developing parts of the world to prevent the reuse of needles and the spread of bloodborne pathogens. They are NOT a good alternative, however, for hospital use in the developed parts of the world. Needle destruction are products that bend, cut, or destroy the needle. This are distinctly different from needle destroyer that send an arc of electricity to vaporize and melt the needle.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

OXYGEN PURITY - PSA oxygen generators, continuously 90-95% purity oxygen produces.

OXYGEN FLOW - LINAIR TECHNOLOGIES manufactures oxygen generators with capacities from 1 Nm3/h to 1000 Nm3/h.

OXYGEN OUTLET PRESSURE - Oxygen generators produces 4-6 bar oxygen.

ADVANTAGES OF OXYGEN GENERATORS/Plant

Consistently high purity guaranteed.
Oxygen production according to your needs 24/7.
Purity control of instantaneously produced oxygen.
Instant monitoring of parameters such as purity, pressure, flow rate on the screen.
No need for an extra operator since it works fully automatically.

LDF series waste incinerator adopt gasification combustion that can make garbage more sufficient burning. Waste incinerator is a kind of machine that possess the own intellectual property, features unique and advanced merits with compact size, high burning efficiency, reasonable burning technology, high degree of non-harm etc, it is an ideal choice for waste treatment of hospital, hotels, various stations and industries. Features:

Both gas-motivated and oil-motivated are all can be preferred according to customers' needs.
Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
Daily waste can be burned once by gasified incineration.
Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

Advantages:

Long lifetime
Totally enclosed operation
Suitable for treating infectious waste
Avoid secondary pollution
Simple operation
Smokeless and no harmful to environment
Continuously and fully burning
Simple operation

Incinerator LDF-100 Parameter:

Applicable hospital size	250 beds
Max. Burning Ability	100 kg/time
Size of the Burner	1.5m×1.15m×3m
Volume of the Burner	Gasification room 0.5m3
Volume of the Burner	second buming room 0.3m3
Chamber Temperature	First chamber:600℃-700℃;
Chamber Temperature	second chamber:300℃-1300℃
	second chamber:300℃-1300℃
Ash residue	≤5%
Size of the filling entrance	620mm×800mm
Chimney	Hight 10m,Out-radiusØ300
Blower	0.37kw
Auxiliary machine	Power0.11kw,fuel consumption4-10kg/h
Re-burning machine	Power0.11kw,fuel consumption6-10kg/h
Running voltage	220V or 380V
Weight	About 4600(kg)

Flue&Gas Emission Standards:

OrdinalNumber	Refuse name	Measuring unit	GB18484-2001
1	Blackness of Flue	Ringelmann class	1
	Gas
2	Smoke&Dust	mg/m3	100
3	CO	mg/m3	100
4	SO2	mg/m3	400
5	HF	mg/m3	9.0
6	HCL	mg/m3	100
7	NO2	mg/m3	500

Click Here To Download Catalogue

Supplied with one 35 cms. dia. S.S. Basin.
Stainless steel pipe construction mounted on three 10 cms. dia. castors.

The MORPHEUS E is an anaesthesia machine with Electronic Flowmeters and it can be used on adult, children and newborn patients. The MORPHEUS E is suitable for administration of Oxygen – Air – Nitrous Oxide – Halothane – Enflurane – Isoflurane – Sevoflurane – Desflurane mixtures. Features:

Mechanic gas mixing system
Electronic lung ventilator with 12” TFT colour display
Valves group: open, semi-closed, closed, heated, with soda lime absorber (1,5 Kg)
SIARETEX rapid connection device, Selectatec compatible for 2 vaporizers
Gas supply group
Ventilation modalities: APCV-PCV; APCV-TV; PSV; APNEA BACK-UP; VC-VAC; VC-VAC BABY; SIMV+PS (volumetric); SPONT; MANUAL.
Measured parameters: PAW; PEEP; Vte; ExpMV; Rate; I:E; FiO2, Pmax; Pmean; Pause; Vti; FLOWi; FLOWe; Tinsp; Tesp; Tpause; Cs; Ri
Displayed ventilation curves: Paw, Flow, Volume, Loop (Volume/Paw ; Volume/Flow)
Adjustable parameters: – O2 built-in Mixer device from 21% to 99% – I:E Adjustable Ratio: 1:1-1:2-1:3-1:4-2:1-3:1 – Inspiratory Flow – PEEP – Breathing Rate – Minute Volume; – Tidal Volume – Inspiratory Pressure Limit – Inspiratory Pause – Inspiratory Time – Trigger
Breathing system: The breathing system of Morpheus guarantees to the user an absolute flexibility and easy handling thanks to the noble construction materials employed. The valves group can be drawn-up and it’s totally autoclavable at 121°C and all its parts are manually dismountable, with no need of special tools.The breathing system is made of; Calibrated APL valve, Fresh gas collecting bag, O2 cell for reading of FiO2, Removable 1 kg soda lime canister, Manually inspectionable bellows jar, Safety valve for ambience air suction in case of fresh gas failure, Flow transducer inside the group located on the expiratory line.

Optional accessories 11054 AIRPAK 54 stand-alone medical air compressor 100150/IDF Isoflurane Vaporizer 100148/IDF Fluo-Halotane Vaporizer 100145/IDF Sevoflurane Vaporizer 100151/IDF Desflurane Vaporizer A57.049-800601 gas analysis module (5 AA – CO2 – N2O – O2 – MAC) ric.auto.

Click Here To Download Catalogue

SUPiA X-ray Digitizer made by Signers offers such a better clinic environment with no chemicals, ideal space, high-resolution image quality, and affordability FEATURE Rigid Type • No damage or scratch on image plates during scanning & erasing • Scanning & Erasing without a roller • No cut-off image during winter and cold period Durability • Extremely simple structure design • Strong aluminum base plate • Flip covers preventing dust from inside scanner Barcode System • Automatically recognising cassette sizes(14x17", 10x12", 18x24cm) by barcode reader Compact & lightweight design

Very small and compatible CR on desktop (only 63.5cm)
Only 21.5kg (47.4lbs)

Cassette Strong structure • Strong enough against external impact • Totally metal frame • Enduring under 150kg on cassette Featherlight • 14x17" : 2.05kg 10x12" : 0.99kg 18x24cm : 0.75kg Dust free & Easy cleaning • Easy to clean up dust on IPs • Prevent dust from outside User friendly design • Various colors 14x17"(Green), 10x12"(Blue), 18x24cm(Pink)) • Barcode label TECHNICAL SPECIFICATION

SUPiA Specifications
Cassette	SUPiA CR Cassette 14x17 (inch) SUPiA CR Cassette 10x12 (inch) SUPiA CR Cassette 18x24 (cm)
Throughput	Up to 94 IPs/hour (14x17"/160μm)
Slots	Single Cassette feed
Dimensions (W x D x H)	436 x 636 x 196mm
Weight	21.5kg (47.4lbs)
Grayscale Resolution	Acquisition : 16 bits per pixel Display : 12 bits per pixel
Power Supply Conditions	Single Phase 50 ~ 60Hz AC 90 ~ 264V
Network	100 MBit
PC Connection	USB 2.0
Computer Min. requirements	OS : Win 7 or 10 CPU : Intel i5 RAM : 4GB Graphic Card : Intel HD 2500 HDD : 500GB Monitor : FHD 1920 x 1080
Operating conditions	Temperature : 10 ~ 30˚C Humidity : 15 ~ 85% RH

Click Here To Download Catalogue

Needle destruction destroys the needle immediately following its use. Needle destruction are an absolute necessity in developing parts of the world to prevent the reuse of needles and the spread of bloodborne pathogens. They are NOT a good alternative, however, for hospital use in the developed parts of the world. Needle destruction are products that bend, cut, or destroy the needle. This are distinctly different from needle destroyer that send an arc of electricity to vaporize and melt the needle. Features:

Well built
Easy to maintain
Having a rubbish drawer with alarm function, this is our most popular model of Syringe Destroyer for use in labs, pharma, universities and doctors clinics
With its low factory-direct price and excellent quality, its a great addition to add to any medical industry or university office that wants to ensure the safety and legal compliance of its operations

Specifications:

Short Name: Needle destruction / Needle Destroyer
Working Noise: ≤50 decibel
Superheating Sanitization Temperature: 95 deg C
Working Time: Can completely melt and destroy needle and neck of syringe in 5 seconds
Working Noise: ≤50 decibel
Dimensions: Approx. 38cm x 29cm x 28cm
Power: AC 110V or 220V

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A
