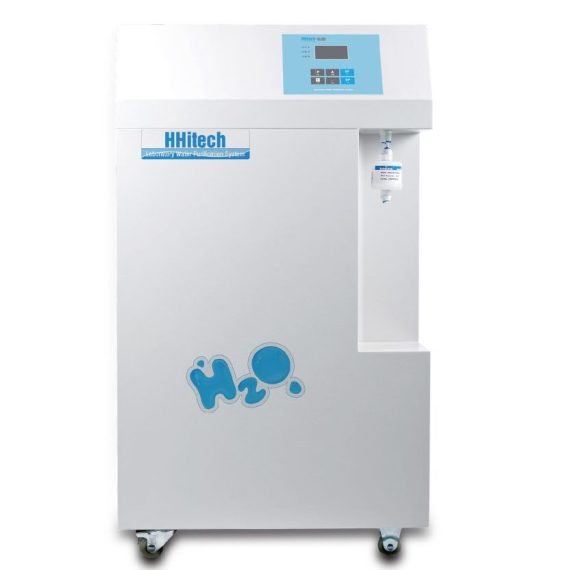

Pilot-RO Water Purification System

Brands: Hi-Tech

~~$0.00~~

Shipped From Abroad

An economical choice of primary pure water for daily laboratory cleaning , with a water output of 45 – 180 liters per hour, ion retention rate >98%, organic matter retention rate >99% (when MW >200 Daltons), particle and bacteria retention rate >99%, which can meet the requirements of conventional production process water and laboratory utensil cleaning water, and can be used as the inlet water for ultrapure water systems, high-pressure steam sterilizers, environmental test chambers and other instruments.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130126-2

Brands:: Hi-Tech

Description
Reviews (0)

Description

Technical Parameters

Product Model	Pilot-RO45	Pilot-RO63	Pilot-RO90	Pilot-RO120	Pilot-RO180
Pure water output*	45L/Hour	63L/Hour	90L/Hour	120L/Hour	180L/Hour
RO reverse osmosis water indicators
Ion retention rate	98%-99% (when using new RO membrane)
Organic matter retention rate	>99%, when MW>200 Daltons
Particle and bacteria retention	>99%
bacteria	<0.01 cfu/ml (optional 0.2μm imported PES terminal filter)
Particles (>0.2μm)	<1/ml (optional (0.2μm imported PES terminal filter)
Raw water requirements	Urban drinking tap water, water temperature 5-45℃, water pressure 1.0-4.0Kgf/ ^cm2
Size and weight	Length × width × height: 640 × 540 × 1110mm; Weight: about 70Kg
Electrical requirements	220V, 50/Hz
power	120W	120W	240W	240W	240W
System Configuration	Main unit (including 1 set of purification column) + 2 built-in 15L pressure water buckets + TDS/conductivity test pen + accessory bag

Reviews

There are no reviews yet.

Be the first to review “Pilot-RO Water Purification System”

Quick Comparison

Pilot-RO Water Purification System remove Bistos BT-770-12.1" Touchscreen Patient Monitor remove COMPRESSED BREATHING AIR MONITOR remove CARBON MONOXIDE ATMOSPHERE MONITORING SYSTEM remove Bistos BT- 740 Patient Monitor remove Atmosphere Protection Module remove

Name Pilot-RO Water Purification System remove Bistos BT-770-12.1" Touchscreen Patient Monitor remove COMPRESSED BREATHING AIR MONITOR remove CARBON MONOXIDE ATMOSPHERE MONITORING SYSTEM remove Bistos BT- 740 Patient Monitor remove Atmosphere Protection Module remove


SKU SF1033560130126-2 SF1033560059-1 SF1033560130141-3 SF1033560130141-2 SF1033560059-9 SF1033560130141-16

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad An economical choice of primary pure water for daily laboratory cleaning , with a water output of 45 - 180 liters per hour, ion retention rate >98%, organic matter retention rate >99% (when MW >200 Daltons), particle and bacteria retention rate >99%, which can meet the requirements of conventional production process water and laboratory utensil cleaning water, and can be used as the inlet water for ultrapure water systems, high-pressure steam sterilizers, environmental test chambers and other instruments.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The Bistos BT-770 patient monitor is equipped with a 12.1" touchscreen display, which allows for an easy operation and readability with a powerful rechargeable battery guaranteeing a continuous operation of 5 hours to monitor ECG, SpO2, NIBP, temperature and respiration Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Key Features

Provides continuous monitoring 24/7
Low maintenance and is easy to install and maintain
Provides 90 days of datalogging which you can easily retrieve via a USB connection
Cost effective alternative to colorimetric tube testing
Supplied as either a fixed or portable version depending upon your needs
Can be used on any breathing air compressor
Digital display

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

The COSAMS unit was designed specifically for use on submarines, most directly those that operate on diesel engines. Built to exacting military standards for performance, reliability and endurance, the Analox COSAMS uses proprietary Gas Filter Correlation (GFC) technology to specifically analyze the unique properties of CO.

The COSAMS (Carbon Monoxide Submarine Atmosphere Monitoring System) has been designed for use on submerged submarines to support life, where crew can be living and working for up to 90 days. Carbon monoxide can be generated on a submarine in several ways, from cooking and fire, to the incomplete combustion of diesel fuel and chlorate candles.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Key Features

Flexible to meet your specific needs and ensures you meet current legislation
Measures up to 2 gasses with a choice of; O2 (oxygen), CO2 (carbon dioxide) and R134a (refrigerants). The APM will soon be able to measure VOCs (volatile organic compounds)
Uses MODBUS RTU communications protocol
Temperature compensated sensors with PressureSync technology
Fitted with 2 relays
Compatible with the Analox Distributed Atmosphere Monitoring solution (DAMS)

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

An economical choice of primary pure water for daily laboratory cleaning , with a water output of 45 - 180 liters per hour, ion retention rate >98%, organic matter retention rate >99% (when MW >200 Daltons), particle and bacteria retention rate >99%, which can meet the requirements of conventional production process water and laboratory utensil cleaning water, and can be used as the inlet water for ultrapure water systems, high-pressure steam sterilizers, environmental test chambers and other instruments

Technical Parameters

Product Model	Pilot-RO45	Pilot-RO63	Pilot-RO90	Pilot-RO120	Pilot-RO180
Pure water output*	45L/Hour	63L/Hour	90L/Hour	120L/Hour	180L/Hour
RO reverse osmosis water indicators
Ion retention rate	98%-99% (when using new RO membrane)
Organic matter retention rate	>99%, when MW>200 Daltons
Particle and bacteria retention	>99%
bacteria	<0.01 cfu/ml (optional 0.2μm imported PES terminal filter)
Particles (>0.2μm)	<1/ml (optional (0.2μm imported PES terminal filter)
Raw water requirements	Urban drinking tap water, water temperature 5-45℃, water pressure 1.0-4.0Kgf/ ^cm2
Size and weight	Length × width × height: 640 × 540 × 1110mm; Weight: about 70Kg
Electrical requirements	220V, 50/Hz
power	120W	120W	240W	240W	240W
System Configuration	Main unit (including 1 set of purification column) + 2 built-in 15L pressure water buckets + TDS/conductivity test pen + accessory bag

Bistos BT-770 is a 12.1" touchscreen patient monitor designed for easy operations. SPECIFICATIONS

12.1“ color TFT touch screen
ECG, Resp., SpO2, NIBP, Temp., CO2, IBP, Multi-gas, C.O., Masimo SpO2
Precise ECG measurement with pacemaker detection ST segment and 16 types of arrhythmia analysis Double overpressure protection for NIBP Intelligent cuff inflation pressure adjustment
Smart Hook/Stand design, provide multiple placement modes Plug & Play Modular IBP& C.O., Modular Printer Multiple configuration options: 4-channel IBP, CO2, invasive C.O., Multi-gas Over 5 hours continuous working on battery 12-15V wide range DC input, suitable for ambulance Capable to connect with central monitoring system HL7 export to clinical information systems (option)

Click Here To Download Catalogue

A Reliable Tool

The ACG+ offers continuous monitoring of up to five different gas variables (oxygen, carbon monoxide, carbon dioxide, volatile organic compounds and water vapor) and simultaneously displays results for testing and calibration purposes. This eliminates potential delays and downtimes while test results are sent out for analysis. The ACG+ has also made cumbersome colorimetric tubes obsolete by drastically reducing the potential for human error in gas analysis. The continuous monitoring also has virtually eliminated the need for time-consuming spot checks. The ACG+ simultaneously scans for O2, CO2, CO, VOCs and water vapor, making it one of the most versatile tools any vessel can utilize. The automatic data log provides additional peace of mind for decision makers.

A Cost Effective Solution

You can’t put a price on safety, reliability and peace of mind. The Analox development team created the ACG+ to combine multiple tasks simultaneously, reducing the need for multiple analyzer units, costly test tubes, and often, extended times in port for repairs. The ACG+ is available in either a fixed location model or convenient portable units. This adaptability provides designers, procurement officers and equipment specialists some options in closed quarter situations.

A Tool, Easy To Install And Maintain

While each ACG+ unit can monitor up to five gasses simultaneously, each analytical system operating in the ACG+ is independent of the others. This means sensors can be replaced individually without needlessly causing downtime.

An Easy Choice

The Analox ACG+ has been proven effective in military situations around the world. The unit’s continuous and specific monitoring capabilities make it an easy choice for key decision-makers.

Technical Specifications

ACG+

Power	24V DC
Optional battery power	NiMH or Li-ION
Optional mains adaptor	Universal input 95 to 250 V AC, 50/60 Hz
IP Rating	IP45
Response Time	T90 <120 seconds T90 <15 minutes H2O sensor
Temperature	Operating: −5 °C to 50 °C / 23°F to 122°F Storage: −10 °C to 60°C / 14°F to 140°F
Flow rate	0.5L per minute (max)
Inlet Pressure	5-10 Bar Gauge (Optional regulator can be purchased)
Humidity	0-99% RH (Non Condensing)
Outputs	1 x normally open relay contacts 1 x normally closed relay contacts 3 x 24 V DC switched output

ACG+ Sensors

O2 Sensor	CO2 Sensor	CO Sensor	VOC Sensor	Water Vapor Sensor
Range	0 to 50%	0 to 1000 ppm	0 to 20 ppm	0 to 100 ppm	0 to 100 mg/m3
Accuracy	±(0.035% O2 + 1% of reading + ±(0.035% O2 + 1% of reading + 0.15% of reading/°C)	±(25 ppm CO2 + 1% of reading + 1 ppm CO2/°C)	±(1 ppm CO + 5% of reading + 0.1 ppm CO/°C)	±(1 ppm VOC + 5% of reading + 0.25% of reading/°C)	±(0.15 mg/m3 H2O + 20% of reading)
Technology	Analox MEC intelligent electrochemical oxygen sensor	Analox 5S3 intelligent NDIR sensor	Analox MEC intelligent electrochemical sensor	Analox MEC intelligent PID sensor	Water vapour sensor using capacitive technology

Click here to download Data Sheet

Click here to download Quick Start Guide

Click here to download User Manual

Key Features

Uses a GFC infra-red sensing technique ensuring the system is not sensitive to hydrogen or water vapor
Built-in auto-zero function ensures sensor stability
Real-time monitoring ensures rapid response to carbon monoxide (CO) issues as they occur
90 days data-logging allows records to be stored and used should they ever be needed
Easy to maintain allowing you to be more self-sufficient whilst minimizing downtime
Designed specifically for the submarine environment so it is able to cope with the demands of the environment in terms of EMC, shock and temperature

Technical Specifications

*Mechanical*
Nominal cabinet dimensions (exc mounting lugs)	479 x 280 x 176 mm (h x w x d)
Nominal cabinet dimensions (inc mounting lugs)	479 x 360 x 200 mm (h x w x d)
Cabinet weight	11.6 kg
Cabinet material	aluminium

*Electrical*
Electrical supply	115 V AC 60 Hz
Max power consumption	90W
Fuse rating	(F1, F2): 20 mm, 2.5A anti-surge
Signal output	4-20 mA
EMC compliance	MIL-STD-461F
ESD compliance	EN 61000-4-2

Operating temperature range	0 to +45°C
Storage temperature	40 to +70°C
Operating pressure range	800 to 1400 hPa
Extended pressure range	600 to 800 hPa (Degraded performance over this pressure range)
Storage/transport pressure range	300 to 1400 hPa
Operating humidity range	0 to 80 %RH
Extended humidity range (up to 1 hour)	80 to 100 %RH
Storage humidity range	0 to 80 %RH (temporary max. 100 %RH)
Max. roll angle	15° (constant), 45° (temporary)
Max. pitch angle	10° (constant), 30° (temporary)
Shock	Tested at 22g, 20ms (half sine) without shock isolation
Vibration	NATO STANAG 4138

CO measuring range	0 to 200 ppm
Repeatability, measured at RTP	± (1 ppm CO + 1 display count)
Accuracy across normal operating environmental envelope	±5% full scale (equivalent to ± 10 ppm)
Zero drift	±1 ppm CO/day
Cross-sensitivity to hydrogen	2% vol H2 < 1 ppm CO
Cross-sensitivity to CO2	5% vol CO2 < 1 ppm CO
Response time	T90 <60s

Click here to download Data Sheet

Click here to download Manual

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years

Click Here To Download Catalogue

Descriptions

The Analox APM (Atmosphere Protection Module) is a configurable modular system which has the ability to monitor up to 2 gasses. This unique solution can be used as a stand alone atmosphere monitor or it can be integrated into existing PMS systems.

Technical Specifications

System Specifications

Operating Temperature	0°C to +45°C +32°F to +113°F
Operating pressure	700 to 1300mBar
Humidity Range	0 to 95% RH
Power	24vDC (nominal) as standard
Communications	MODBUS RTU
Relays	2 as standard
Calibration interval	Before mission and / or every 3 months

Sensor Unit

Sensor type	Range	Danger
CO2	NDIR	0 to 5% / 0 to 30mBar	Toxic
O2 (Depleted)	Electrochemical	0 to 25% / 0 to 2500mBar	Asphyxiation
O2 (enriched)	Electrochemical	0 to 25% / 0 to 2500mBar	Fire/explosion
R134a	NDIR	0 to 1000ppm	Asphyxiation
VOCs	PID	0 to 20ppm	Toxic
