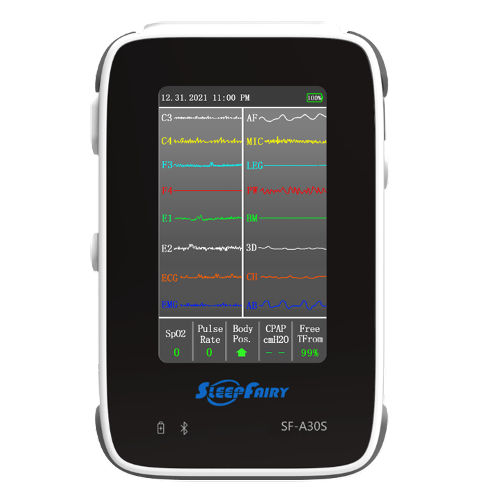

Portable Full Polysomnography SF-A30S Ventmed PSG

Brands: VentMed

~~$0.00~~

Shipped From Abroad

Ventmed Polysomnography is a set of device that can collect, display, store and analyze respiratory physiological data. It can be used for the analysis and screening of diseases related to sleep disorders. With excellent circuit and exquisite appearance design, reasonable structure, safe operation, ease and flexible.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130180-18

Brands:: VentMed

Description
Reviews (0)

Description

The SF-A30S VentMed Portable Full Polysomnography (PSG) system is a cutting-edge sleep monitoring device designed for accurate diagnosis and analysis of sleep disorders. It collects, displays, stores, and analyzes multiple physiological parameters, ensuring reliable data for clinical and home sleep studies. The compact, lightweight design makes it easy to use, while its advanced technology provides real-time monitoring and comprehensive reports.

Features:

Full polysomnography (PSG) data collection for sleep disorder analysis
Compact, portable, and user-friendly design
High-resolution display for real-time monitoring
Advanced signal processing for accurate data collection
Multiple parameter monitoring including EEG, ECG, SpO2, and respiratory events
Wireless connectivity for seamless data transfer
Long battery life for extended monitoring sessions

Specifications:

Specification	Details
Model	SF-A30S
Parameters Monitored	EEG, ECG, EMG, SpO2, respiratory effort, airflow, body position
Display	High-resolution touchscreen
Connectivity	Bluetooth, USB, Wi-Fi
Data Storage	Internal memory + SD card support
Battery Life	Up to 24 hours
Dimensions	Compact and lightweight for portability
Application	Sleep disorder diagnosis, clinical & home use

Reviews

There are no reviews yet.

Be the first to review “Portable Full Polysomnography SF-A30S Ventmed PSG”

Quick Comparison

Portable Full Polysomnography SF-A30S Ventmed PSG remove Bistos BT- 740 Patient Monitor remove ASPEL Stress ECG with Ergometer and Software remove Sonoscape S22 Ultrasound Machine remove Omron M2 Upper Arm Blood Pressure Monitor Medium Cuff remove ASPEL Stress ECG with Treadmill and Software remove

Name Portable Full Polysomnography SF-A30S Ventmed PSG remove Bistos BT- 740 Patient Monitor remove ASPEL Stress ECG with Ergometer and Software remove Sonoscape S22 Ultrasound Machine remove Omron M2 Upper Arm Blood Pressure Monitor Medium Cuff remove ASPEL Stress ECG with Treadmill and Software remove


SKU SF1033560130180-18 SF1033560059-9 SF1033560075-1 SF1033560012-3 SF1033560084-37 SF1033560075-2

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad Ventmed Polysomnography is a set of device that can collect, display, store and analyze respiratory physiological data. It can be used for the analysis and screening of diseases related to sleep disorders. With excellent circuit and exquisite appearance design, reasonable structure, safe operation, ease and flexible.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Omron M2 Upper Arm Blood Pressure Monitor Medium CufF: Omron M2 Upper Arm Blood Pressure Monitor Medium Cuff is a useful tool for clinical management of patients with hypertension. The ease with which using this machine can be learned is a major advantage. zWith this device, you can regularly check your blood pressure level and even get the same consistent accuracy as in your doctor’s office. This digital BP monitor has an arm cuff and a built-in LCD screen to display of the blood pressure readings. A wonderful feature that comes with this monitor is that readings given by the monitor can be stored in the monitor’s memory and can be printed out later.

Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad It is a system with professional tool dedicated to exercise and resting ECG examination. Treadmill has 12 lead ECG modules. With ECG Analyzing Software. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features:

Full polysomnography (PSG) data collection for sleep disorder analysis
Compact, portable, and user-friendly design
High-resolution display for real-time monitoring
Advanced signal processing for accurate data collection
Multiple parameter monitoring including EEG, ECG, SpO2, and respiratory events
Wireless connectivity for seamless data transfer
Long battery life for extended monitoring sessions

Specifications:

Specification	Details
Model	SF-A30S
Parameters Monitored	EEG, ECG, EMG, SpO2, respiratory effort, airflow, body position
Display	High-resolution touchscreen
Connectivity	Bluetooth, USB, Wi-Fi
Data Storage	Internal memory + SD card support
Battery Life	Up to 24 hours
Dimensions	Compact and lightweight for portability
Application	Sleep disorder diagnosis, clinical & home use

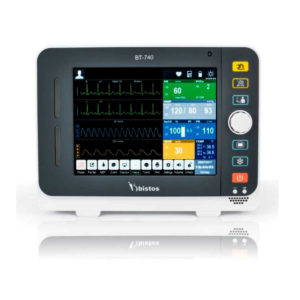

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years

Click Here To Download Catalogue

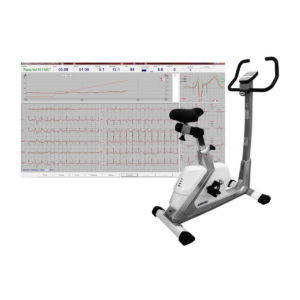

Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Technical Specifications:

Cooperation with the CardioTEST cardiovascular exercise system and AsTER cardiac rehabilitation system,
Control using a computer through the RS-232 port,
Braking: a processor-controlled brake with torque measurement,
Load range: 25 - 1000 W,
Speed range: 20 - 150 rpm,
Load independent of the number of turns,
Built-in ECG module,
12 standard leads in diagnostic mode,
2 leads in training mode,
Sensitivity 2,5 / 5/10/20 mm / mV,
Shift 25/50/100 mm / s,
Digital filters 25 Hz, 35 Hz, 50 Hz, anti-frit filter,
Digital filter of the isoelectric line,
Measuring range HR 15-240 bpm,
Maximum patient weight 200 kg,
Power supply: 230 V, 50 Hz, 60VA,
Dimensions: (LxWxH) 1190x600x1370 mm.

CardioTEST Software:

excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal,
presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,
automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

DETAILS As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price. S22, is a shared service ultrasound system with a slim and elegant package that has combined mobility with utility to fit in specific clinical situations including emergency department, ICU, operating room and so on. Furthermore, its ergonomic design, easy operating and flexible data management will give you a memorable experience. SPECIFICATION • Large high-resolution widescreen LED • Sensitive touch screen • Four transducer sockets plus one socket for pencil probe • A comprehensive selection of probes: linear, Convex, Micro-convex, Volumetric, Endocavity, Bi-plane, Phased Array, TEE, Intraoperative, Pencil • Premium application technology: 4D, μ-scan speckle reduction, compound imaging, Pulse Inversion Harmonic Imaging, Color M-Mode, Steer M-Mode, PDI, TDI, Real-time Panoramic Imaging, Trapezoid Imaging, Auto-IMT… • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB 2.0, HDD, DVD, PDF report • Multi-Language Input Keyboard • Built-in battery

Click Here To Download Catalogue

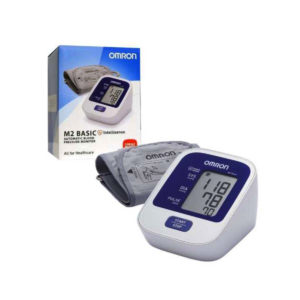

Omron M2 Upper Arm Blood Pressure Monitor Medium Cuff: Omron M2 Upper Arm Blood Pressure Monitor Medium Cuff is a useful tool for clinical management of patients with hypertension. The ease with which using this machine can be learned is a major advantage.With this device, you can regularly check your blood pressure level and even get the same consistent accuracy as in your doctor’s office. This digital BP monitor has an arm cuff and a built-in LCD screen to display of the blood pressure readings. A wonderful feature that comes with this monitor is that readings given by the monitor can be stored in the monitor’s memory and can be printed out later.

Features:

Fully automatic upper arm blood pressure monitor
Intellisense™ technology
Hypertension level indicator
Irregular heartbeat detection
Memory capacity for 21 readings with date and time stamp
Cuff wrapping guide
Clinically validated (International Protocol)

It is a system with professional tool dedicated to exercise and resting ECG examination. Treadmill has 12 lead ECG modules. With ECG Analyzing Software. Technical Specification:

Simultaneous registration and observation of ECG signal from all 12 leads on PC screen,
Automatic measurement of HR, ST level and slope,
Printing and archiving examination report which contains: patient's data, the full disclosure ECG of the whole recording, selected strips, average P-QRS-T complexes, table summary, load value, HR, ST level and slope,
RAMP protocol
PMHR control
Digital filtration of mains disturbances
Digital filtration of muscle origin disturbances
Resting examination: 12, 6 or 3-channel in manual or automatic mode
Automatic regulation of isoelectric line position in the middle of registration channel
Automatic elimination of isoelectric line migration

CardioTEST Software:

excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal, presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,

automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.
