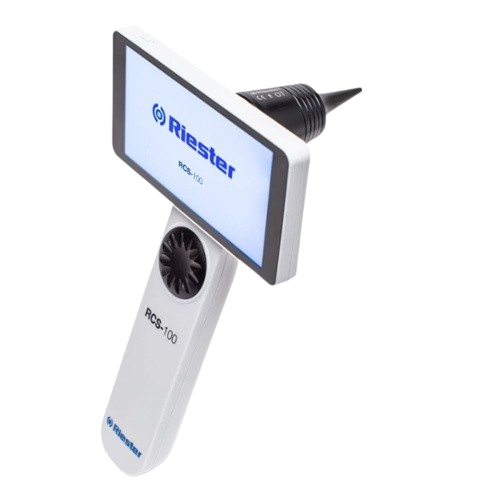

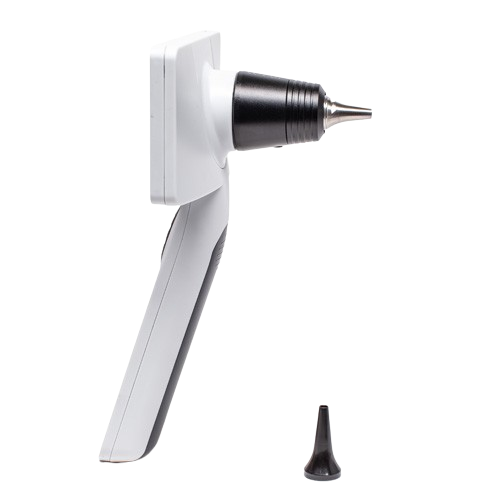

RCS-100 Digital Otoscope
$0.00
Shipped From Abroad
The RCS-100 Medical Camera System with otoscope lens and LED light provides an enhanced view of the auditory canal, as well as 6x magnification displayed on the 5” LCD screen.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
RCS-100 with otoscope lens can substitute the traditional otoscope
RCS-100 with otoscope lens can substitute or replace the traditional otoscope, providing the additional benefit of capturing and sharing the digital photograph or video of the ear canal and tympanic membrane. The otoscope lens can be used with a choice of reusable or disposable specula.
Key Features
-
6× magnification for detailed ear canal and tympanic membrane imaging
-
High-resolution 8 MP CMOS sensor
-
Natural-light LED illumination (4000 K)
-

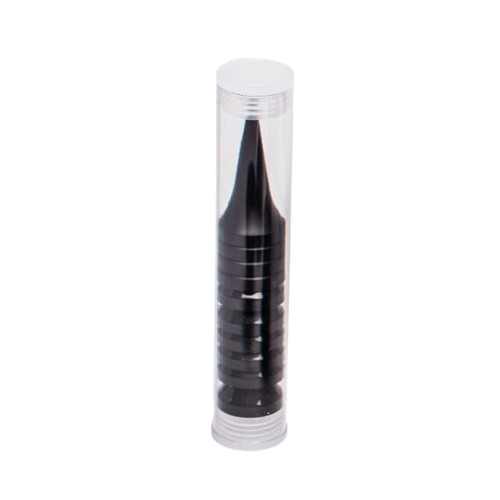

Compatibility with reusable and disposable specula (2 mm, 3 mm, 4 mm, 5 mm)
-
Automatic and manual focus modes
-
One-hand rotary wheel for focus and light control
-
5-inch 1280 × 720 touchscreen display
-
16 GB internal storage for photos and videos
-
UVC output for live viewing on external monitors
-
3.5-hour video operation on a rechargeable Li-ion battery
-
Micro-USB OTG and USB-C connectivity
-
Multilingual user interface
Specifications

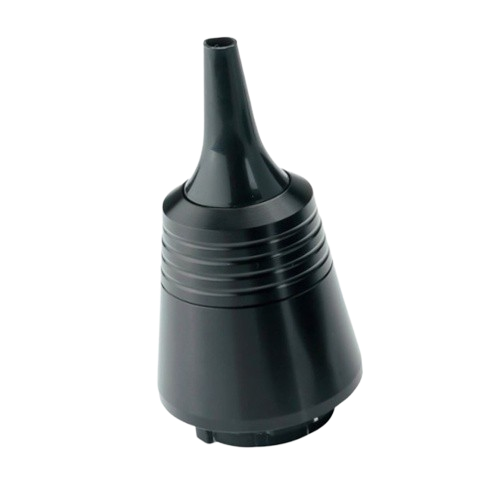

| RCS-100 Otoscope Lens |
|---|
| Dimensions | 73.5 mm x 40.0 mm x 40.0 mm |
| Weight | 96 g (3.39 oz) |
| F/# (focal length/width) | 2.9 |
| Max object distance | 15 mm, at max object distance FOC diameter: 15 mm |
| Depth of field scope | 10 mm |
| Lighting source | Natural light LED |
| LED colour temperance | 4000 K |
| Disposable and reusable specula | 2 mm (0.08 in), 3 mm (0.12 in), 4 mm (0.16 in), 5mm (0.2 in) |
| RCS-100 |
|---|
| Size | 225 mm x 135 mm x 45 mm |
| Weight | 292.0 g |
| Focus | Automatic / Manual |
| Image format | JPEG |
| Video format | MP4 |
| Adapt input | 100 – 240 VAC, 50/60 Hz, 0.3 A |
| Adapt outnput | 5 VDC, 2 A |
| USB | OTG and type-C USB |
| Extend memory (OPT) | 16 GB Wi-Fi SD card |
| RAM | 2 GB LPDDR3 |
| ROM | 16 GB |
| CMOS sensor resolution | Total number of pixels: 3296 (H) x 2512 (V) approx. 8.28 M pixels Number of effective pixels: 3296 (H) x 2480 (V) approx. 8.17 M pixels Number of active pixels: 3280 (H) x 2464 (V) approx. 8.08 M pixels |
| Battery | 3.6 V, 2600 mAh, Li-ion battery (type 18650) Video 3.5 hours (fully charged battery at 25 °C ambient temperature) |
