RCS-100 Medical Camera System with General Lens
$0.00
Shipped From Abroad
The RCS-100 with general lens can be utilised for a general initial screening, or more specifically for the assessment of the mouth and throat.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

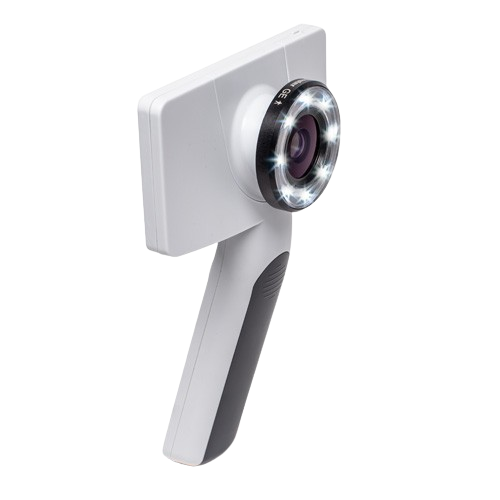

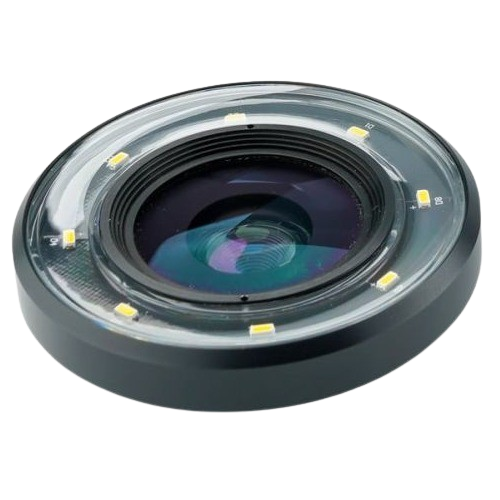

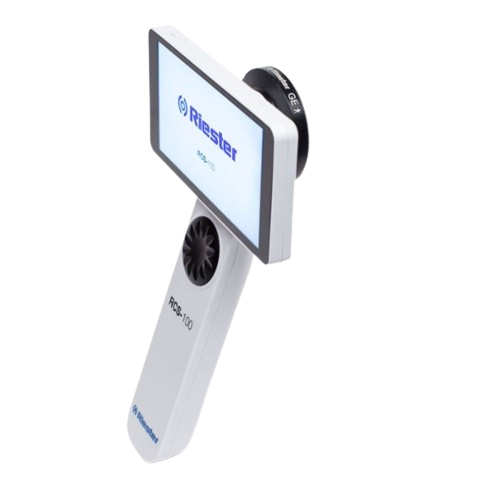

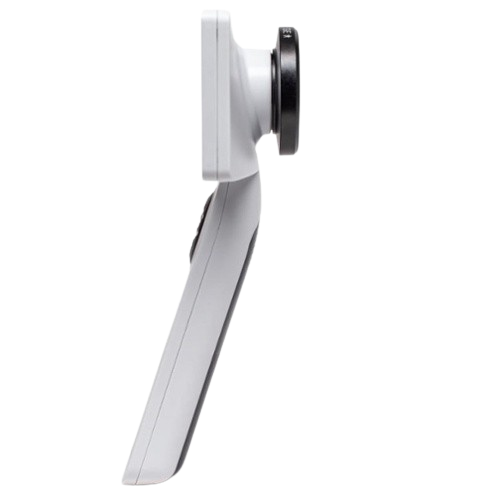

The Riester RCS-100 Medical Camera System, fitted with the general (GE) lens, delivers versatile, high-quality imaging for general clinical examinations. The GE lens supports a focus range of 30 mm to 4 m and combines 2× optical magnification with 4× digital zoom and a 78° field of view. The 5″ full-HD touch display and ergonomic rotary wheel enable intuitive, one-hand operation. With a rechargeable Li-ion battery delivering 3.5 hours of video time and 16 GB of internal memory, the system is ideal for documentation, telemedicine, and diagnostic workflows.
Key Features
-
General-purpose imaging for the mouth, throat, and wide anatomical areas
-
2× optical magnification + 4× digital zoom
-
78° field of view for broad coverage
-
Visible white LED illumination (5500 K)
-
Focus range from 30 mm to 4,000 mm
-
High-resolution 8 MP CMOS sensor
-
5″ 1280 × 720 touchscreen display
-
One-hand rotary wheel for light and focus control
-
16 GB internal storage for images and videos
-
Up to 3.5 hours of video runtime on Li-ion battery
-
Automatic focus (when using general lens)
-
Bayonet connector for fast lens exchange
-
Multilingual interface for global clinical use
Specifications
| RCS-100 General Lens |
|---|
| Dimensions | 60.5 mm x 60.5 mm x 19.0 mm 23.82 in x 23.82 in x 0.75 in |
| Weight | 66.4 g (2.34 oz) |
| F/# (focal length/width) | 2.0 |
| Field angle | 78° |
| Depth of field scope | 30 mm – 4 m 1.18 – 157.48 in |
| Lighting source | Natural light LED |
| LED colour temperance | 5500 K |
| RCS-100 |
|---|
| Size | 225 mm x 135 mm x 45 mm |
| Weight | 292.0 g |
| Focus | Automatic / Manual |
| Image format | JPEG |
| Video format | MP4 |
| Adapt input | 100 – 240 VAC, 50/60 Hz, 0.3 A |
| Adapt outnput | 5 VDC, 2 A |
| USB | OTG and type-C USB |
| Extend memory (OPT) | 16 GB Wi-Fi SD car |
| RAM | 2 GB LPDDR3 |
| ROM | 16 GB |
| CMOS sensor resolution | Total number of pixels: 3296 (H) x 2512 (V) approx. 8.28 M pixels Number of effective pixels: 3296 (H) x 2480 (V) approx. 8.17 M pixels Number of active pixels: 3280 (H) x 2464 (V) approx. 8.08 M pixels |
| Battery | 3.6 V, 2600 mAh, Li-ion battery (type 18650) Video 3.5 hours (fully charged battery at 25 °C ambient temperature) |
Quick Comparison
| RCS-100 Medical Camera System with General Lens remove | MICRONOMIC® III Treatment Unit remove | M.I One Medical Microscope INSIGHT – U+ (M-2100) remove | ENTERWAVE remove | Durable Dental Chair Unit remove | Bistos BT- 410 Medical Head Lamp remove | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | RCS-100 Medical Camera System with General Lens remove | MICRONOMIC® III Treatment Unit remove | M.I One Medical Microscope INSIGHT – U+ (M-2100) remove | ENTERWAVE remove | Durable Dental Chair Unit remove | Bistos BT- 410 Medical Head Lamp remove | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | SF103356013089-1 | SF10335601263 | SF103356013089-5 | SF1033560067 | SF1033560059-6 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Price |
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stock | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Availability | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | Shipped From Abroad
The RCS-100 with general lens can be utilised for a general initial screening, or more specifically for the assessment of the mouth and throat.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
The MICRONOMIC® III ENT treatment unit is designed and built with the highest quality standards and is therefor low maintainanceThe suction and air pumps are dry and thus there is no need to top up or replenish oil. The optic sensors are reliable and do not need to be replaced periodically.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
Features:
High Resolution Images of an affected area
Ergonomic design for diagnosis
Minimize vibration with 6 Points Arm System (German Imported Products)
Delivery & Availability:
Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
Features
| Shipped From Abroad
Feature:
1. All controlled by the electric valve
2. DC Motor.(2000N)
3. Automatic thermostatic water supply system
4. Handpiece tubing with standard fittings (3sets),
5.Three way syringe (one for hot, one for cold)(2sets),
6.Water suction and saliva ejector (with switch)(1set),
7. Powerful suction apparatus (1set each)
8. Easy cleaning Integral and turn able toughened glass spittoon
Delivery & Availability:
Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped from abroad Bistos BT- 410 Medical Head Lamp - Head-worn light BT-410 provides not only comfortable wear but also convenient for use during examinations or operations. - Ultra bright LED light with High density LED - Easy to adjust head strap & an angle - Extensive LED lifetime (more than 50,000 hours) - More than 4 hours of continuous use - An additional astral LED lamp (optional) - Attachable loupe (optional) Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Content | The Riester RCS-100 Medical Camera System, fitted with the general (GE) lens, delivers versatile, high-quality imaging for general clinical examinations. The GE lens supports a focus range of 30 mm to 4 m and combines 2× optical magnification with 4× digital zoom and a 78° field of view. The 5″ full-HD touch display and ergonomic rotary wheel enable intuitive, one-hand operation. With a rechargeable Li-ion battery delivering 3.5 hours of video time and 16 GB of internal memory, the system is ideal for documentation, telemedicine, and diagnostic workflows. Key Features
Specifications
| The budget-friendly MICRONOMIC® III is a mobile ENT workstation designed to accommodate the maximum number of integrated functions according to specific requirements. The MICRONOMIC® III comes with a dual-level polyurethane worktop and metallic silver front panels. This metal unit is particularly suitable for ENT consulting rooms with limited space. | The microscope is a device for viewing objects that are too small to be observed with the naked eye. Microscopes magnifies the object under observation. Medical Microscope Features: High Resolution Images of an affected arean Ergonomic design for diagnosis Minimize vibration with 6 Points Arm System (German Imported Products) Option l CCD Camera (Insight I) & Mounted Arm set l LED Light Source l LCD Monitor & Arm set Technical Specifications of Medical Microscope: Field Stop: 020.5 Turret Magnification: x0.4, x0.6, x1.0, x1.67, x2.5, x10 Eyepiece: 55~75(mm) Varifocal: W.D 175!420 (mm), Excluding Monitor and Monitor Arm Dimension: W620xD2040xH1780 Weight: Approx. 100kg Excluding Monitor and Monitor Arm Camera: Option Light Source: LED Lamp Intensity >30,000 Lux Color Temperature: 5700K Feature: Foldable |

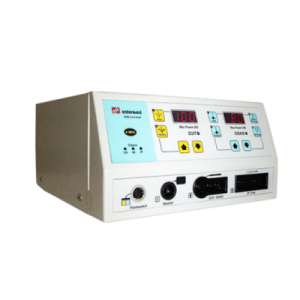

The ENTERWAVE is an intelligent, microprocessor controlled electrosurgical unit. Its ultra-high frequency design makes it highly suitable for various tissue volume reduction procedures and delicate surgical intervention.
