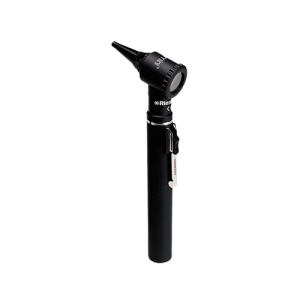

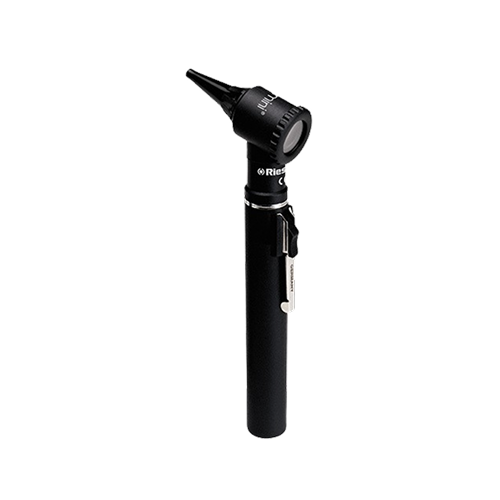

ri-mini® otoscope
$0.00
Shipped From Abroad
The ri-mini® Otoscope is a compact, cost-effective diagnostic instrument ideal for clinics. It features Fibre-Optics (F.O.) with 2.5 V Xenon illumination for cool, daylight-like light, a 2.5x magnifying lens, and a connection for pneumatic otoscopy.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The ri-mini® Otoscope is designed for exceptional cost-effectiveness and appeal in medical practice. It utilizes Fibre-Optics combined with a powerful 2.5 V Xenon lamp to ensure optimal light transmission and a cool examination light. The instrument head is secured to the handle with a screw fitting and made from extremely impact-resistant, glass-fibre reinforced plastic.
Features and benefits of ri-mini® otoscope
- ri-mini® with 2.5 V Xenon illumination.
- Fibre-optics for optimal light beam and transmission, combined with the lamp to produce a cool examination light similar to daylight, providing a comfortable experience for the patient.
- Removable magnifying lens with 2.5x magnification.
- Option to insert external instruments when the magnifying lens is removed.
- Screw fitting for secure attachment to the handle.
- Sturdy adjustment ring to position the instrument head at the ideal angle on the handle.
- Sealed system for performing pneumatic otoscopy.
- Extremely impact-resistant casing made of glass-fibre reinforced plastic.
- Easy lamp replacement at the base of the instrument head.
ri-mini® otoscope details

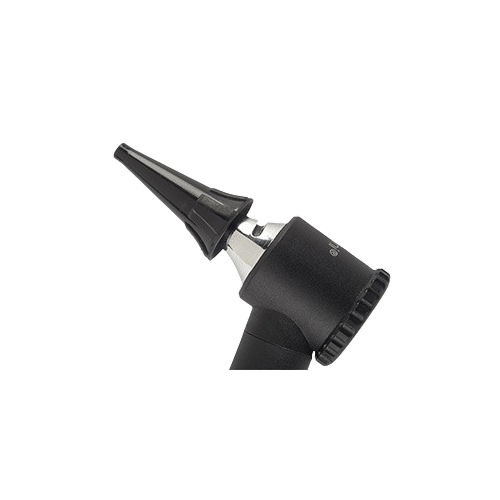

- The ear specula, removable by turning

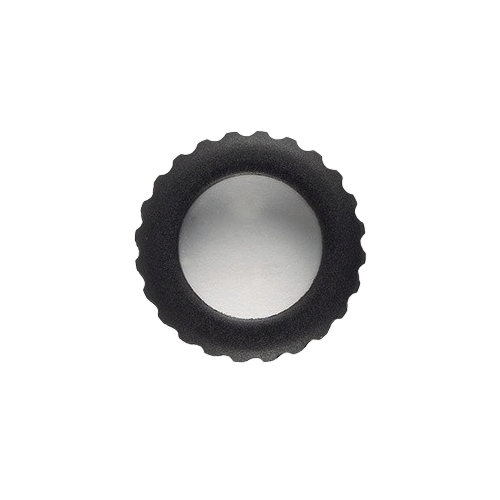

- magnification pivoting lens
- Pneumatic test connection
- On/Off switch
- Battery compartment
Product Specifications
| ri-mini® Otoscope |
|---|

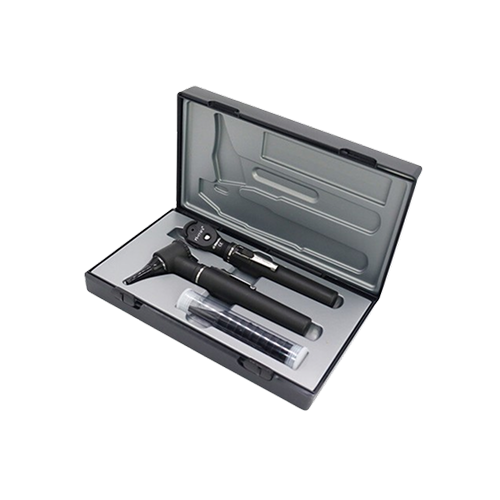

| Dimensions | .jpg?width=214&height=292&name=Riester%20ri-mini%20otoscope%20head%20detail%20photo%20(02).jpg) Otoscope head: 56 mm height x 28 mm wide Otoscope battery compartment: 107.30 mm height, 20 mm in Ø 23 cm x 14 cm x 4.5 cm in hard case (set) 23 cm x 8.2 cm x 4.5 cm in hard case (single) |
| Magnification lens | The 2.5x magnification lens |
| The lamp for ri-mini® otoscope | XL, 2.5 V, 750 mA, average life span 16.5 h |
| Battery | 2 Alkaline AA 1.5 V batteries. |
| Ambient temperature | 0 °C to 40 °C |
| Relative Humidity | 30% to 70% non-condensing |
| Storage/ Transport Ambient temperature | -10 °C to 55 °C |
| Storage/ Transport relative Humidity | 10% to 95% non-condensing |
