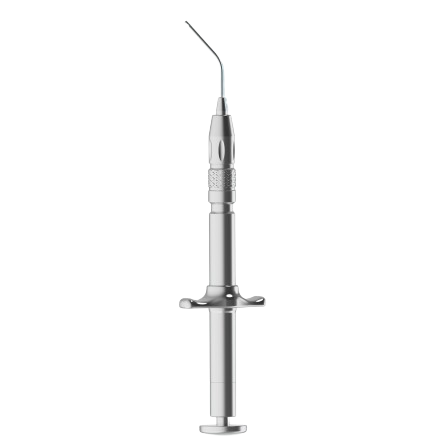

Root Canal File Extractor

• The device can be used directly under the microscope.
• By pushing the cap at the end of the handle and clamping the sleeve to clamp the broken device, the broken device or other foreign matter in the root canal can be removed.
• The bending wrench can adjust the bending Angle of the clamping sleeve according to the position of the affected tooth. The bending Angle is 45 degrees before delivery, and the maximum Angle can be adjusted to 90 degrees;
• This device is reusable and non-sterile.

Key Features

• Autoclavable, reusable design (up to 134 °C sterilization)

• Multiple interchangeable tips in varied sizes for clinical flexibility

• Pre-bent tip (45° to 90° adjustable) enables access in complex canal anatomies

• Clamping and locking mechanism ensures secure grip on broken files

• Nickel-titanium clamping core and stainless steel body for durability and anti-fatigue performance

1. The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
2. The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
3. Fitted with 70KV 8mA tube with preheating grid, the machine has been specially designed for intraoral dental diagnosis applications.

This system brings advanced panoramic diagnostics into a modern dental practice environment. Equipped with a linear CMOS flat-panel sensor, dynamic automatic image-focusing, integrated touchscreen, and ergonomic patient positioning, the device supports a range of panoramic programmes (adult, child, sinuses, TMJ, bitewing) and optional one-shot cephalometric imaging. With a clean, minimalist design and upgrade pathways, it fits clinics where space is limited but quality cannot be compromised.

Product Features

• Dedicated linear sensor for the best image quality.

• Ambient lighting creates a comfortable atmosphere for the patient and allows for monitoring the unit status from a distance.

• Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

• Latest sensor design, technology, and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Technical Specifications

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 - 86 kV
Tube Current	2.5 - 10 mA
Exposure time 2D	4.6 - 14.2 seconds
Exposure Time Ceph One-Shot	0,5s adult, 0,2s child
Ceph Image Size	240x300 mm
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
Ceph Programs	LL 30x24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	OrisWin DG Suite
Features	Panoramic, panoramic upgradable to 3D and ceph, panoramic with ceph upgradable to 3D.
Footprint	140x110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes

Technical Drawing
