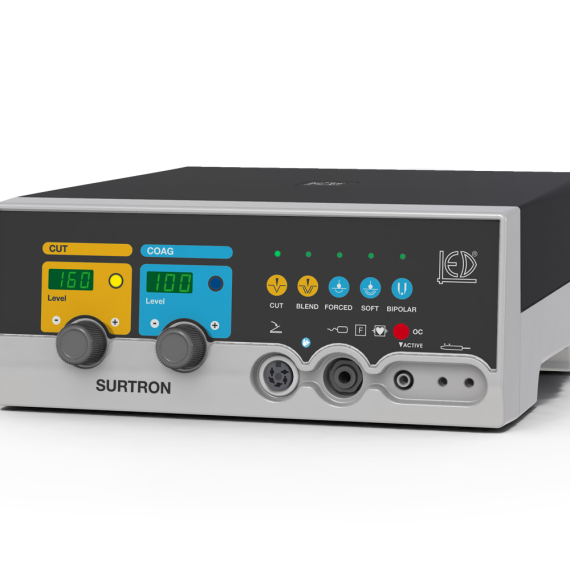

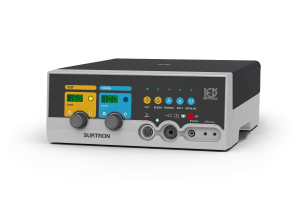

SURTRON 160

Key Features

• Operating Modes: Supports multiple modes including pure CUT, cut-coagulation BLEND, superficial coagulation (FORCED COAG), deep coagulation without necrosis (SOFT COAG), and, with a special adapter, BIPOLAR coagulation.

• Digital Interface: Equipped with a microcontroller for digital reading of delivered power and monitoring of operative functions, ensuring reliable performance.

• Safety Measures: Features patient/plate circuit monitoring, output power monitoring, and self-check control. The connection of the neutral electrode is constantly monitored, with safety control of patient/plate contact using a split neutral electrode.

• Underwater Cutting and Coagulation: Capable of performing procedures in wet environments, expanding its range of applications.

Technical Data

• Max output power CUT 160 W-250 Ω
• Max output power BLEND 120 W-200 Ω
• Max output power FORCED COAG 100W-150Ω
• Max output power SOFT COAG 80 W-100 Ω
• Max output power BIPOLAR 60 W-100 Ω
• Working frequency 600 KHz
• Patient circuit F
• Selectable input voltage 115-230 VAC
• Main frequency 50-60 Hz
• Electrical input power: 350 VA
• Size WxHxD  254x104x288 mm
• Weight 5 Kgs

• Patient/Plate circuit monitoring
• Output power monitoring
• Self-check control

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Electrical Class: I CF
• MDR 2017/745/UE Class: II b

Features

• Low voltage output: Ensures minimal irritation to neuromuscular tissues.
• Sparkless operation: Reduces tissue sticking.
• Superb non-stick effect: Enhances surgical precision.
• Suitable for microsurgery: Ideal for neurosurgery, ophthalmology, gynecology, and plastic surgery

Features

1. Intended for ablation,tissue modification, and coagulation of soft tissue in arthroscopic procedures such as hip,  shoulder, ankle, wrist, elbow, and knee. 2. The Extending shaft enables good visualization and easy insertion through subcutaneous tissue,and  well insulated coating guarantee its safety and reliability. 3.Irrigation/suction solution is available with a cannula and an adjustable flow control valve. 4. Tips in different shapes and angles fit in particular arthroscopic procedures. 5. Compatible with most electrosurgical generators.

Use Indication

This device should never be used when:

• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Features:

1. High Conductivity: They are made from materials that ensure efficient conduction of electrical current.
2. Large Surface Area: This helps in dispersing the current over a wide area, reducing the risk of burns.
3. Adhesive Backing: They usually have an adhesive side to securely attach to the patient's skin.
4. Flexible Design: They are designed to conform to the contours of the patient's body.
5. Safety Mechanisms: Modern pads often include features like dual-pad return electrodes for fail-safe operation.

Uses:

1. Completing the Electrical Circuit: They act as a return path for the electrical current used in electrosurgery.
2. Minimizing Burns: By dispersing the current, they help prevent burns at the surgical site.
3. Ensuring Patient Safety: They are crucial for the safe operation of electrosurgical units, especially in patients with electronic implants like pacemakers.
4. Versatile Applications: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.

Features

• Designed with the surgeon in mind
• Slim and lightweight, tapered ergonomic design, streamlined design.
• Slip-proof handling and water resistant Rocker or Push-Button Switch
• Switch and buttons designed for smooth activation
• Equipped with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.
• With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.
